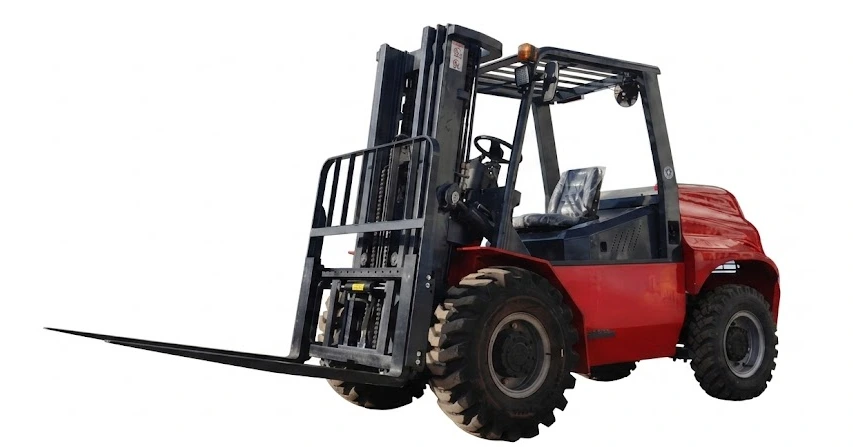

3.5 ton integrated four-wheel drive off-road forklift
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product parameters
| model | CPCD35 |
| Rated load | 3500kg |
| Load center distance | 500mm |
| Lifting height | 3000mm |
| Full height of gantry | 2200mm |
| Full height at（roof protection frame) | 2200mm |
| Full length(without fork) | 3280mm |
| Full width | 1680mm |
| Wheelbase | 2150mm |
| Towing pin height | 800mm |
| Minimum ground clearance(at gantry) | 260mm |
| Fork pitch outside(max/min) | 1110/240mm |
| Track width(front/rear) | 1400mm |
| Outside of minimum turning radius | 2600mm |
| Inside of minimum turning radius | 920mm |
| Gantry inclination (front/rear) | Front 10°Rear 12° |
| Fork size | 1220*45*120mm |
| Maximum driving speed (full load/no load) | 27/28km/h |
| Total weight | 4850kg |
| Width of door lever | 160mm |
| Tire type | Semi-Solid Tire |
| Front tire | Chaoyang 20.5-16 Semi-Solid Tire |
| Rear tire | Chaoyang 7.50-16 Semi-Solid Tire |
| Service brake | Hydraulic brake |
| Parking brake | Mechanical brake |
| Engine model | Weifang 490 Turbocharged |
| Torque converter model | 265 |
| Engine power | 58kw |
| Number of transmission shifts | Front 2, Rear 2 |
