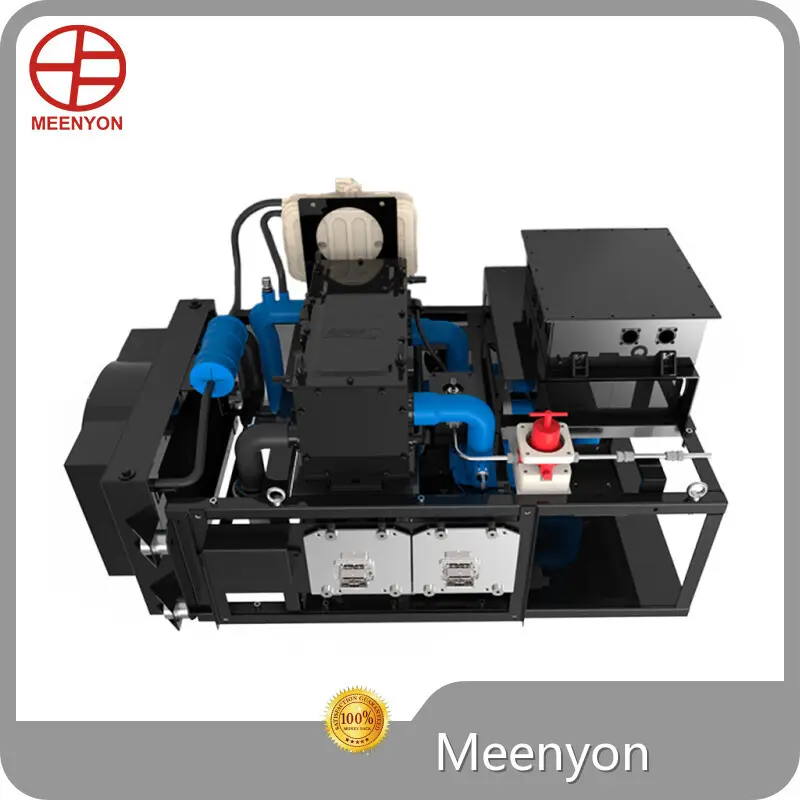

10kw Liquid Cooled Fc Stack Vl-Series

Additional Information

As with other liquid cooled fuel cell stacks, this fuel cell stack is considerably heavier than air cooled stacks.  The following items are often included with a liquid cooled fuel cell stack from Horizon: an air filter, air flow meter, hydrogen intel solenoid valve, humidifier, throttle valve, radiator, ion exchange, controller, fuel cell stack, fill water tank, fuel cell 24V water pump, constant voltage DC, and blower to bring air into the fuel cell stack.

Please submit a quote request form in order to obtain additional information about this product.  This will also provide you with an opportunity to provide details on the project you are working on that needs a fuel cell stack, and with that additional information we may be able to recommend other components you will need to expedite the completion of your project.

List of VL-10 components and their functionality

◆ Air filter (Prevents damaging size particles from entering fuel cell)

◆ Air flow meter (Monitoring feedback of air flow)

◆ Humidifier (Adds humidity to the air entering the stack)

◆ Radiator (Removes excess heat from the system)

◆ Ion Exchange (Absorbs ions in the coolant and reduce the conductivity of the coolant)

◆ Controller (Control system, system and vehicle communication)

◆ Fuel cell stack (Oxygen and hydrogen react to produce power)

◆ Fill water tank (Filling water and purge air for the fuel cell system)

◆ Fuel cell 24V water pump (Powers the cooling cycle of the fuel cell)

◆ Constant voltage DC (Charge the 48V power battery)

◆ Blower (Provide air for the system)

In addition to the above components, the fuel cell system is also equipped with some sensors to feed back the temperature, pressure and humidity signals of the controller system during operation.

The internal oxygen supply system and cooling system components of the system also need to be connected with silicone tubes and multi-way joints to ensure the flow of fluids in the system.

The fixing of the various parts of the system requires the support of a bracket, and the whole system needs a fixed frame, which is connected and fixed together by the frame. Finally, many electrical parts in the system need to be connected with high-voltage wiring harness or low-voltage wiring harness.

Pro8-xj1

10kW Liquid Cooled FC Stack VL-Series Quick Product Facts

bottom1 (2)
System Rated Power
This system power output is 10kW.
bottom2 (2)
Stack Rated Power
The fuel cell stack gives 12kW of output power.
bottom3 (2)
Number Of Cells
This fuel cell stack is composed of 90 fuel cells.
bottom4 (2)
Voltage Current Output
The voltage current output of the fuel cell stack is 54 volts at 222 amperes.
bottom5 (3)
DC Output Voltage
Direct current output voltage reaches 48/80 volts.
bottom6 (2)
Fuel Cell Efficiency
Minimal fuel cell efficiency at rated power is 42%.
bottom7 (2)
Ambient Temperature
The fuel cell stack operates best in a temperature ranging from 14 to 104° F / -10 to 40° C.
bottom8
Stack Operating Temperature
The fuel cell stack operates best in a temperature ranging from 60 to 70°C / 140 to 158°F.
bottom9
FC System Weight
The system (including DC and radiator) weighs 180kg / 396lbs.
bottom10
System Dimensions
This fuel cell system dimensions are 630 x 560 x 610mm / 24.8 x 22 x 24″
bottom11
Hydrogen Pressure
Hydrogen must be fed into the fuel cell stack at a pressure of 0.6-1.0 bar.
bottom12
Hydrogen Purity
A fuel of gaseous hydrogen at a minimum purity level of 99.97% is required.

Packing Information

VL-05

VL-10

VL-30

VL-40

VL-65

VL-100

VL-120





System rated power output (kW) *

5

10

30

40

65

100

120

*does not include cooling fan power and boost DC efficiency

Stack rated power output (kW)

6

12

36

53

79

120

150



Number of cells

65

90

150

220

330

500

500



Operating ambient temperature (℃)

-10 to +40

-10 to +40

-30 to +45

-30 to +45

-30 to +45

-30 to +45

-30 to +45



Storage ambient temperature (℃)

-40 to +60

-40 to +60

-40 to +60

-40 to +60

-40 to +60

-40 to +60

-40 to +60



Operating ambient humidity (%)

0 to 95

0 to 95

0 to 95

0 to 95

0 to 95

0 to 95

0 to 95



Operating pressure (kPa)

up to 50

up to 50

80 to 100

80 to 100

80 to 100

80 to 100

120 to 150



IP rating

IP54

IP54

IP67

IP67

IP67

IP67

IP67



Vibration noise (dB)

up to 80

up to 80

up to 78

up to 78

up to 78

up to 78

up to 90



Voltage current output

125A@48V

222A@54V

400A@90V

400A@132V

400@198V

400@300V

500A@300V



System dimensions (mm) **

630 x 560 x 610

630 x 560 x 610

742 x 686 x 637

890 x 600 x 520

970 x 600 x 516

1200 x 790 x 520

1200 x 680 x 630

** radiator, touch screen, booster DC or air compressor not included

System weight (kg) ***

170

180

135

145

170

238

290

*** booster DC not included

DC output voltage (V)

48

48/80













Boost DC output voltage (V)





300 to 450

500 to 700

500 to 700

500 to 700

500 to 700



System mass power density (W/kg) ****





220

275

382

420

505

*** booster DC not included

Fuel cell stack volume ratio power (kW/l)













3.5



Stack operating temperature (℃)

60 to 70

60 to 70

70 to 85

70 to 80

70 to 80

70 to 80

70 to 85



H2 purity (% dry hydrogen)

99,97

99,97

99,97

99,97

99,97

99,97

99,97



Average H2 consumption at rated power (m3/kWh)





up to 0,73

up to 0,73

up to 0,73

up to 0,73

up to 0,73



Fuel Cell efficiency at rated power (%)

at least 42

at least 42

at leas 47,8

at least 47,8

at least 47,8

at least 47,8

at least 47,8



Hydrogen inlet pressure (Mpag)

0,6 to 1.0

0,6 to 1.0

1,1 to 1,3

1,1 to 1,3

1,1 to 1,3

1,1 to 1,3

1,1 to 1,3
