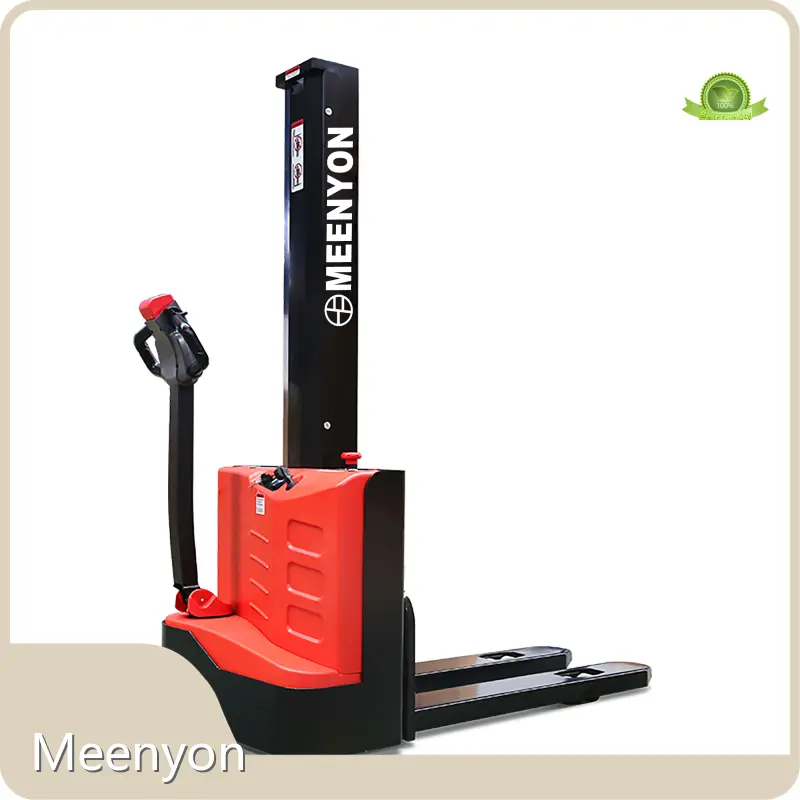

Bestelectric Forklift 3 Wheel
Product details of the electric forklift 3 wheel
Quick Detail
The attractive appearance of Meenyon electric forklift 3 wheel is designed by our professional designers. Before delivery, the product has to be inspected strictly to ensure that it is of high quality in every aspect as such as performance, usability, and so on. Meenyon's electric forklift 3 wheel is widely used in the industry. It is beneficial for Meenyon to pay attention to the importance of electric forklift 3 wheel quality.
Product Introduction
Our electric forklift 3 wheel has better quality performance by virtue of the following excellent details.
Product specifications
| Item | Name | Unit (Code) | ||
| Feature | ||||
| 1.1 | Brand | MEENYON | MEENYON | |
| 1.2 | Model | ES10-10MM | ES12-12MM | |
| 1.3 | Power | Electric | Electric | |
| 1.4 | Operation | Walking | Walking | |
| 1.5 | Rated load | Q (kg) | 1000 | 1200 |
| 1.6 | Load center distance | c (mm) | 600 | 600 |
| Weight | ||||
| 2.1 | Dead weight (incl. battery) | kg | 462 | 462 |
| Size | ||||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1940 | 1940 |
| 4.4 | Standard max lifting height | h3 (mm) | 1517 | 1517 |
| 4.15 | Fork drop height | h13(mm) | 88 | 88 |
| 4.19 | Overall length | l1 (mm) | 1615 | 1615 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 | 800 |
| 4.25 | Fork outside distance | b5 (mm) | 550 | 550 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2137 | 2137 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2062 | 2062 |
| 4.35 | Turning radius | Wa (mm) | 1295 | 1295 |
| Performance parameter | ||||
| 5.1 | Walk speed, full /no load | km/ h | 4 / 4.5 | 4 / 4.5 |
| 5.2 | Lifting speed, full /no load | m/ s | 0.12/0.22 | 0.12/0.22 |
| Motor, Power unit | ||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 2*12V/85Ah | 2*12V/85Ah |
