4 core features

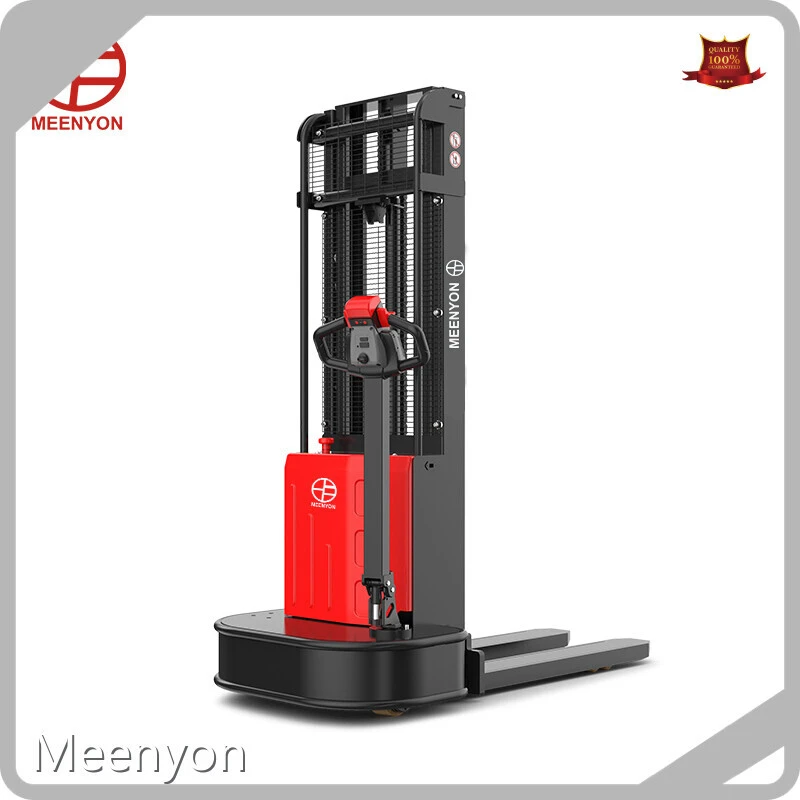

EST123
◆ High performance/high cost-effectiveness
◆ High strength structure. Mature drive and hydraulic systems. Reliable connectors and electrical components
◆ Each Zhongli pile high vehicle has completely passed the anti roll test. Full load lifting is also safe.
◆ Fully passed the national safety and stability testing standard GBT26949.1-2012.
◆ The explosion-proof design of the hydraulic system ensures that even if the oil pipe bursts, the gantry will not quickly descend, improving safety.
◆ The entire vehicle design meets CE production standards. After the fork is lifted by 720mm, the vehicle automatically switches to slow mode for safer operation.
◆ Brake protection, independently designed. Sheet metal mask, fireproof and durable.
◆ Long operating handle, paired with independently developed mechanical spring structure, easy to operate and flexible to turn;
◆ Compact design, ultra small operating radius;
◆ Vertical walking function makes stacking in narrow channels easier
◆ Bias operation greatly improves the visual field of operation.
◆ Maintenance-free battery+low-voltage automatic protection+self-diagnosis system
◆ Vehicle electrical control system
◆ Adopting modular installation method
COMPANY STRENGTH
|
Item |
Name |
Unit (Code) |
|
|
Feature |
|
|
|
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | EST123 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1200 |
| 1.6 | Load center distance | c (mm) | 500 |
|
Weight |
|
|
|
| 2.1 | Dead weight (incl. battery) | kg | 470 |
|
Size |
|
|
|
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1852 |
| 4.4 | Standard max lifting height | h3 (mm) | 2430 |
| 4.15 | Fork drop height | h13(mm) | 90 |
| 4.19 | Overall length | l1 (mm) | 1850 |
| 4.21 | Overall width | b1/ b2 (mm) | 60/170/1150 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2345 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2275 |
| 4.35 | Turning radius | Wa (mm) | 1510 |
|
Performance parameter |
|
|
|
| 5.1 | Walk speed, full /no load | km/ h | 4.0/4.5 |
| 5.2 | Lifting speed, full /no load | m/ s | 0.10/0.15 |
|
Motor, Power unit |
|
|
|
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24/80 |
Company Advantages
· In manufacturing Meenyon Electric Pallet Stacker Truck, methodologies that promote cost savings are applied.
· The strict quality control ensures the quality and performance of the product meets the industry specification.
· High quality service going with elaborate Electric Pallet Stacker Truck can keep Meenyon more competitive.
Company Features
· With many years of efforts on the design and production of Electric Pallet Stacker Truck, Meenyon has become one of the most competitive manufacturers in this industry.
· The advanced mechanical processing equipment is available in Meenyon's manufacturing plant.
· Meenyon is committed to providing best service for every customer. Get quote!
Application of the Product
Our Electric Pallet Stacker Truck is available in a wide range of applications.
Since the establishment, Meenyon has always been focusing on the R&D and production of With great production capability, we can provide customers with personalized solutions according to their needs.
