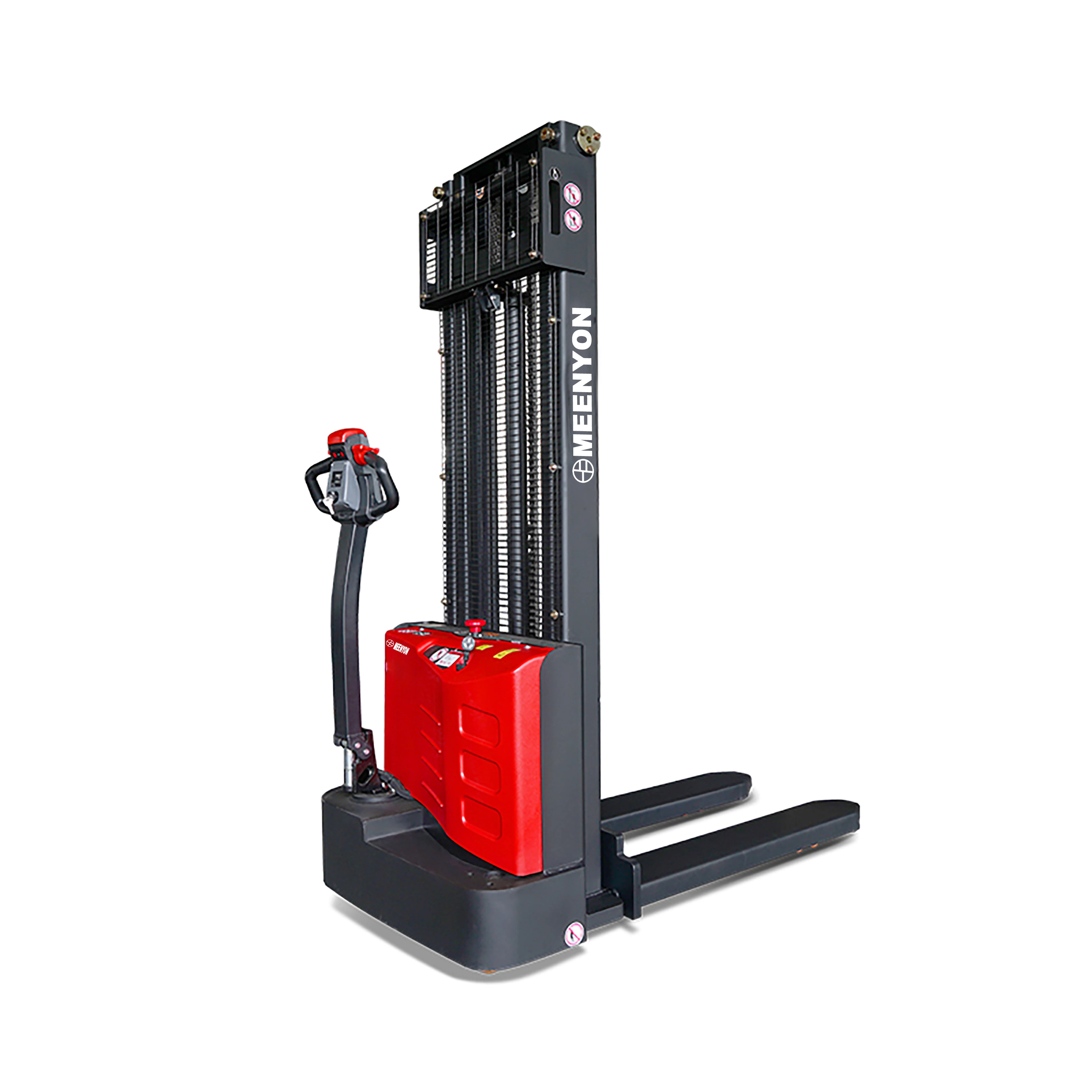

Product details of the walk behind pallet lift
Product Description
Meenyon walk behind pallet lift is manufactured by an experienced production team, achieving fine production. Quality and reliability are the basic characteristics of a product. The offered product is used in various industrial applications.
Product specifications
Item | Name | Unit (Code) | |
Feature | |||
1.1 | Brand | MEENYON | |
1.2 | Model | EST152Z | |
1.3 | Power | Electric | |
1.4 | Operation | Walking | |
1.5 | Rated load | Q (kg) | 1500 |
1.6 | Load center distance | c (mm) | 500 |
Weight | |||
2.1 | Dead weight (incl. battery) | kg | 510 |
Size | |||
4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1817 |
4.4 | Standard max lifting height | h3 (mm) | 2430 |
4.15 | Fork drop height | h13(mm) | 90 |
4.19 | Overall length | l1 (mm) | 1708 |
4.21 | Overall width | b1/ b2 (mm) | 882 |
4.25 | Fork outside distance | b5 (mm) | 570 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2295 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2228 |
4.35 | Turning radius | Wa (mm) | 1463 |
Performance parameter | |||
5.1 | Travel speed, full / no load | km/ h | 3.7/4.0 |
5.2 | Max climb, full / no load | m/ s | 0.085/0.13 |
Motor, Power unit | |||
6.4 | Battery voltage/nominal capacity | V/ Ah | 24/80 |
Company Advantage
• Since the inception, our company has been constantly developing and innovating in the pace of time. At present, our products are sold well in the domestic market, and they occupy many foreign markets with a wide range of sales.
• Meenyon is praised and favored by customers for high-quality products and professional after-sales services.
• Focusing on the production and development of products, our company has formed an excellent management team, an experienced operation team and a technical team in the industry, which provides a strong foundation for our development.
Meenyon supplies all kinds of in the long term. If needed, just contact us!
