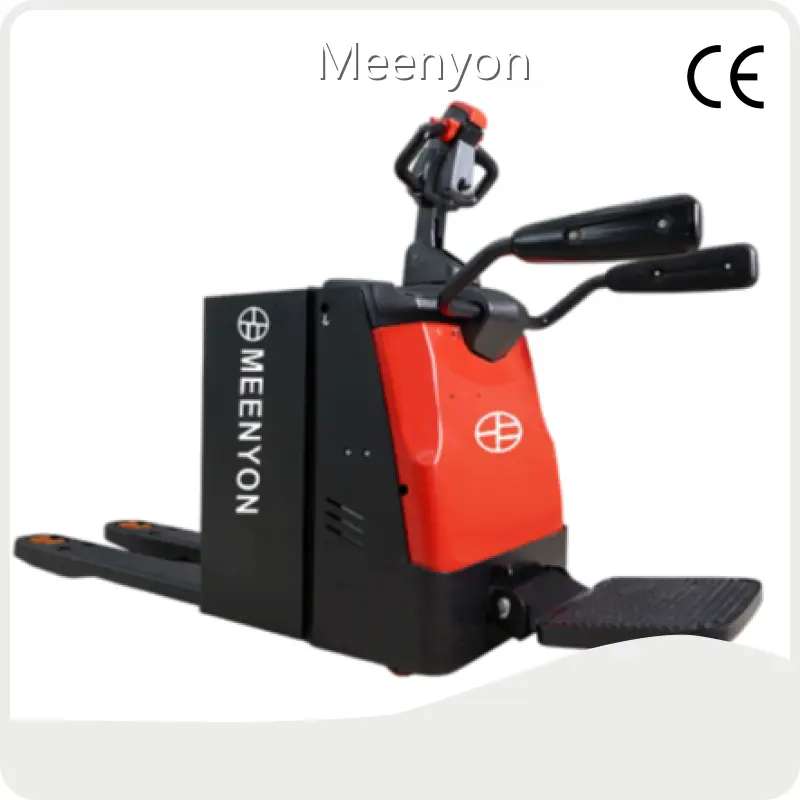

Product details of the electric powered pallet jack
Product Description
electric powered pallet jack is more durable with the excellent material. electric powered pallet jack is available with complete product types. Besides known advantages, it has many additional functionality to be discovered.
Product specifications
Item | Name | Unit (code) | ||||
Feature | ||||||
1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
1.2 | Model | RPL201H | RPL251 | RPL201 | RPL301 | |
1.3 | Power | Electric | Electric | Electric | Electric | |
1.4 | Operation | Standing | Standing | Standing | Standing | |
1.5 | Rated load | Q (kg) | 2000 | 2500 | 2000 | 3000 |
1.6 | Load center distance | c (mm) | 600 | 600 | 600 | 600 |
Weight | ||||||
2.1 | Dead weight (incl. battery) | kg | 670 | 790 | 670 | 790 |
Tires, chassis | ||||||
3.2 | Front wheel size (diameter × width) | Ф230x75 | Ф230x75 | Ф230x75 | Ф230x75 | |
Size | ||||||
4.4. | Standard max lifting height | h3 (mm) | 120 | 120 | 120 | 120 |
4.15 | Fork drop height | h13(mm) | 85 | 85 | 85 | 85 |
4.19 | Overall length | l1 (mm) | 1954(2024) | 1954 | 1954(2024) | 1954 |
4.21 | Overall width | b1/ b2 (mm) | 734 | 734 | 734 | 734 |
4.25 | Fork outside distance | b5 (mm) | 540/685 | 560 / 685 | 540/685 | 560 / 685 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2606 | 2590 | 2606 | 2590 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2463 | 2447 | 2463 | 2447 |
4.35 | Turning radius | Wa (mm) | 1806/1826 | 1790 | 1806/1826 | 1790 |
Performance parameter | ||||||
5.1 | Walk speed, full/no load | km/ h | 9 / 12 | 5.5 / 6 | 7.5 / 8 | 5.5 / 6 |
5.8 | Max climb, full/no load | % | 8 / 16 | 6 / 16 | 8 / 16 | 6 / 16 |
6.4 | Battery voltage/nominal capacity | V/ Ah | Li 24V/150Ah | Li 24V / 150Ah | Li 24V/150Ah | Li 24V / 150Ah |
About UsaAbout The RPL Series
The RPL series is the latest version of the ride-on pallet truck from MEENYON.
They are fully designed around the concept of integrated Li-Ion battery technology and offers quick, opportunity charging and electric power steering are standard.
The RPL 201 can be equipped with a high-speed option for even higher productivity.
The new released RPL 251 and 301 are able to realize heavy-duty applications and satisfy different working conditions.
advantage
Company Feature
• During the development for years, Meenyon has won the trust and support of customers in many fields.
• Meenyon's are not only well received in the domestic market, but also sold well in the overseas market.
• Our company has a group of teams experienced for research and development and production management. They can independently complete all aspects from production, quality control to export. And our products can meet the requirements of customers and the market for product quality.
Meenyon has been engaged in the production of for many years. With rich production experience, our products are practical and well-designed. Besides, they are of high quality and favorable price. Customers from all walks of life are welcome to consult and place orders!
