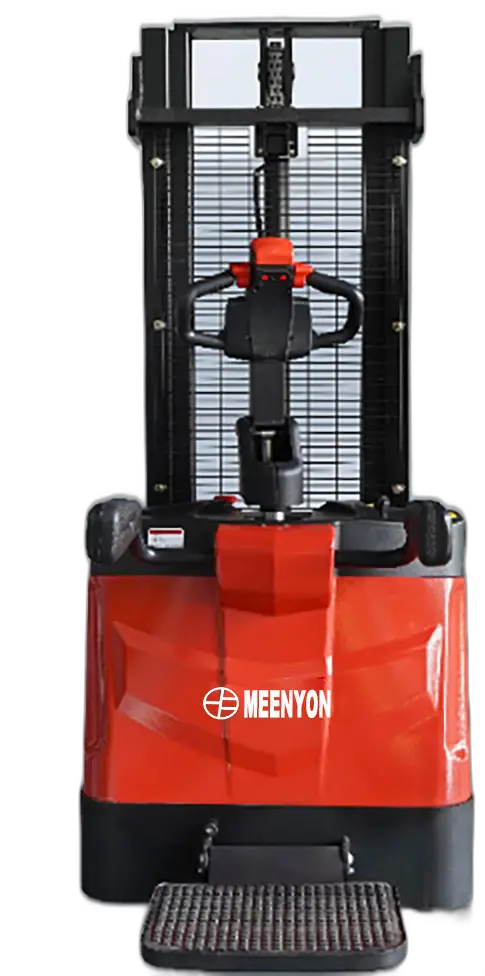

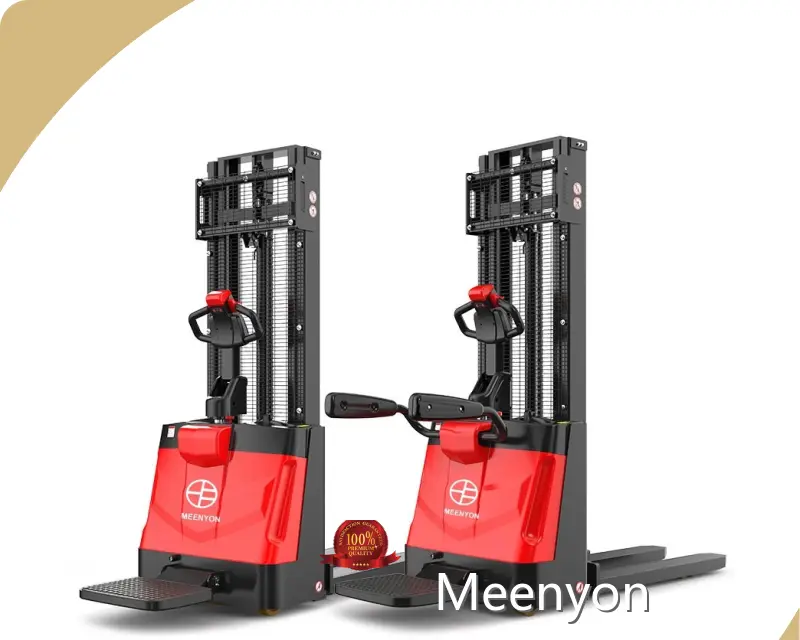

Product details of the electric stacker lifter
Quick Detail
Meenyon electric stacker lifter is designed by our designers making use of their understanding of the market knowledge. The strict internal quality control system guarantees the product to reach the international standards. This product can well meet the application needs of customers.
Product Information
electric stacker lifter's details are presented to you in the following section.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ESR181 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1800 |
| 1.6 | Load center distance | c (mm) | 500 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 780 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1731 |
| 4.4 | Standard max lifting height | h3 (mm) | 2430 |
| 4.15 | Fork drop height | h13(mm) | 90 |
| 4.19 | Overall length | l1 (mm) | 1854 |
| 4.21 | Overall width | b1/ b2 (mm) | 852 |
| 4.25 | Fork outside distance | b3 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2700 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2653 |
| 4.35 | Turning radius | Wa (mm) | 1848 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 4.5/5.0 |
| 5.2 | Max climb, full / no load | m/ s | 0.14/0.2 |
| 5.8 | Max climb, full/no load | % | |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 48/65 |
