Product specifications
| Item | Name | Unit (code) | ||||
| Feature | ||||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | RPL201H | RPL251 | RPL201 | RPL301 | |
| 1.3 | Power | Electric | Electric | Electric | Electric | |
| 1.4 | Operation | Standing | Standing | Standing | Standing | |
| 1.5 | Rated load | Q (kg) | 2000 | 2500 | 2000 | 3000 |
| 1.6 | Load center distance | c (mm) | 600 | 600 | 600 | 600 |
| Weight | ||||||
| 2.1 | Dead weight (incl. battery) | kg | 670 | 790 | 670 | 790 |
| Tires, chassis | ||||||
| 3.2 | Front wheel size (diameter × width) | Ф230x75 | Ф230x75 | Ф230x75 | Ф230x75 | |
| Size | ||||||
| 4.4. | Standard max lifting height | h3 (mm) | 120 | 120 | 120 | 120 |
| 4.15 | Fork drop height | h13(mm) | 85 | 85 | 85 | 85 |
| 4.19 | Overall length | l1 (mm) | 1954（2024） | 1954 | 1954（2024） | 1954 |
| 4.21 | Overall width | b1/ b2 (mm) | 734 | 734 | 734 | 734 |
| 4.25 | Fork outside distance | b5 (mm) | 540/685 | 560 / 685 | 540/685 | 560 / 685 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2606 | 2590 | 2606 | 2590 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2463 | 2447 | 2463 | 2447 |
| 4.35 | Turning radius | Wa (mm) | 1806/1826 | 1790 | 1806/1826 | 1790 |
| Performance parameter | ||||||
| 5.1 | Walk speed, full/no load | km/ h | 9 / 12 | 5.5 / 6 | 7.5 / 8 | 5.5 / 6 |
| 5.8 | Max climb, full/no load | % | 8 / 16 | 6 / 16 | 8 / 16 | 6 / 16 |
| 6.4 | Battery voltage/nominal capacity | V/ Ah | Li 24V/150Ah | Li 24V / 150Ah | Li 24V/150Ah | Li 24V / 150Ah |
About UsaAbout The RPL Series

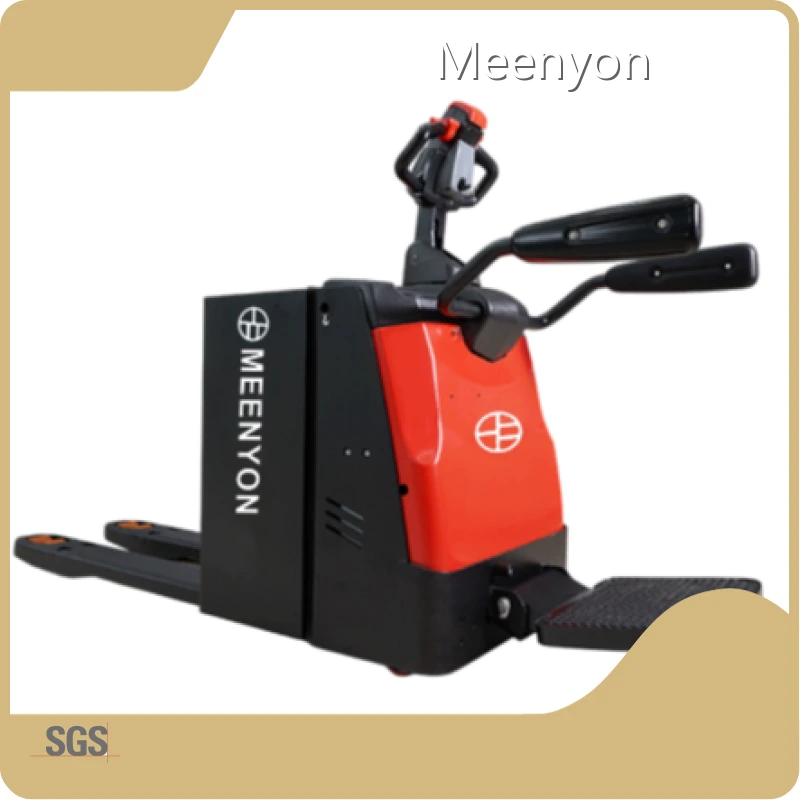

The RPL series is the latest version of the ride-on pallet truck from MEENYON.
They are fully designed around the concept of integrated Li-Ion battery technology and offers quick, opportunity charging and electric power steering are standard.
The RPL 201 can be equipped with a high-speed option for even higher productivity.
The new released RPL 251 and 301 are able to realize heavy-duty applications and satisfy different working conditions.
advantage
Company Advantages
· Meenyon electric pallet jack with scale is completed with fine finishing in accordance with the quality standards of the industry.
· The performance and quality of this product is stable and reliable.
· It is well-liked in the market owing to these features.
Company Features
· Through worldwide sales network, our electric pallet jack with scale is selling well which has its own dominance in this field.
· Meenyon applies new technologies to its business processes.
· Sustainability is a crucial part of our company strategy. We focus on the systematic reduction of energy consumption and the technical optimization of manufacturing methods.
Application of the Product
Our electric pallet jack with scale can be used in multiple areas of multiple industries.
Meenyon has been engaged in the production of for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
