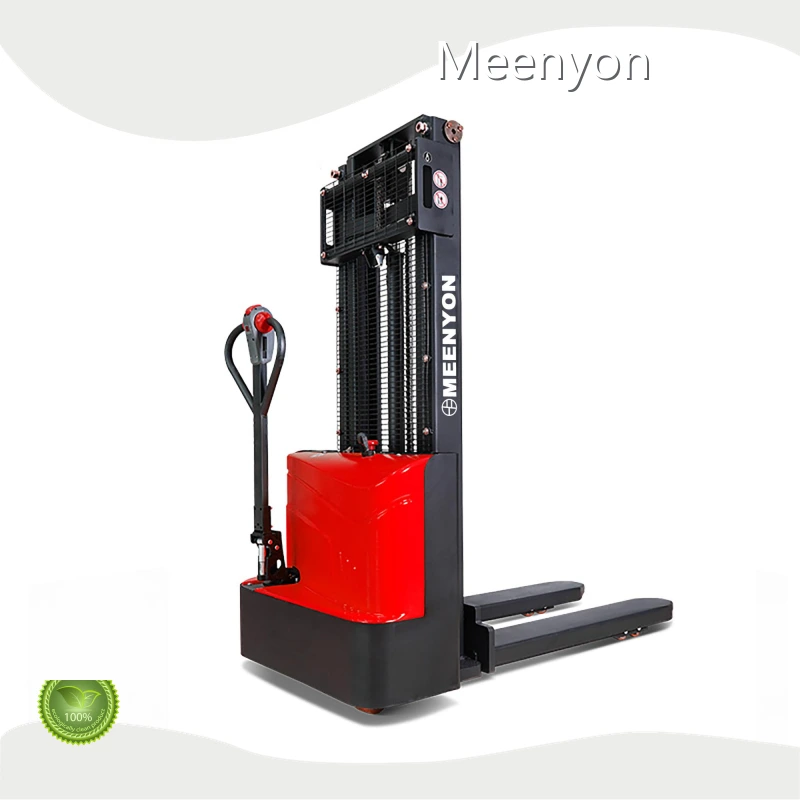

Product details of the buy electric forklift
Quick Detail
From material selecting to material processing, Meenyon finish independently. By cause of the design of buy electric forklift,Meenyon enjoys a good reputation. Meenyon's buy electric forklift has a wide range of applications. The product is saleable in the industry and has a high market occupation rate.
Product Description
Compared with other same kind of products in the market, Meenyon's buy electric forklift is equipped with the following outstanding advantages.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | DS1 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 500 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 565 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1856 |
| 4.4 | Standard max lifting height | h3 (mm) | 2430 |
| 4.15 | Fork drop height | h13(mm) | 90 |
| 4.19 | Overall length | l1 (mm) | 1705 |
| 4.21 | Overall width | b1/ b2 (mm) | 880 |
| 4.25 | Fork outside distance | b5 (mm) | 600 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2272 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2205 |
| 4.35 | Turning radius | Wa (mm) | 1440 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 3.7/4.0 |
| 5.2 | Max climb, full / no load | m/ s | 0.085/0.13 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24/80 |
