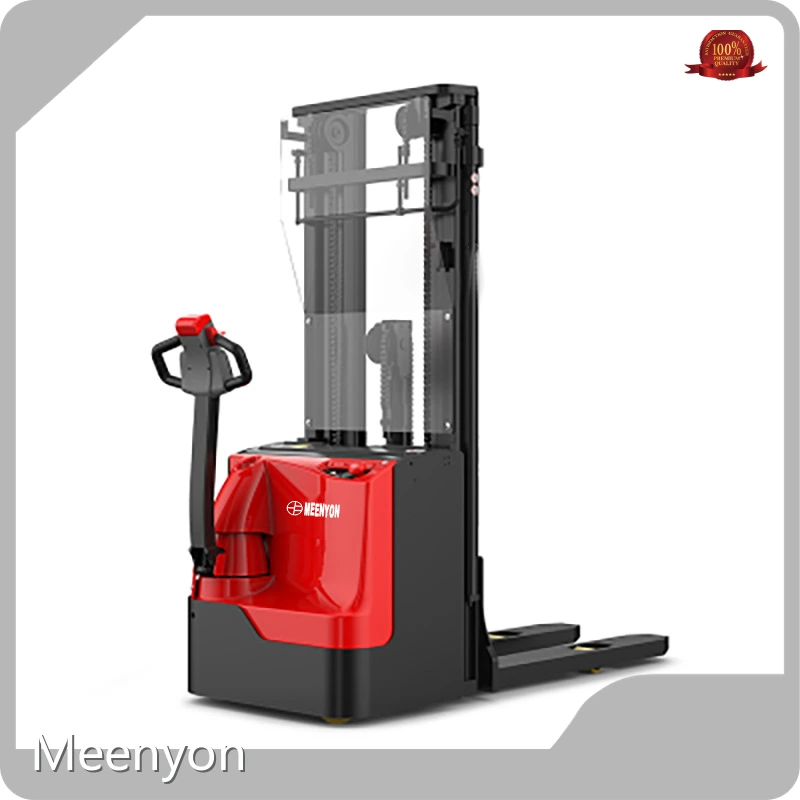

Product details of the electric pallet jack stacker


Product Introduction

Incorporating the latest technology, Meenyon electric pallet jack stacker shows the finest workmanship in the industry. This product has a smooth operation due to numerous times of quality testing. The price of this product is competitive and is widely used by people in all fields.

Product specifications

Item Name Unit (Code)
Feature
1.1 Brand   MEENYON
1.2 Model   WSA161
1.3 Power   Electric
1.4 Operation   Walking
1.5 Rated load Q (kg) 1600
1.6 Load center distance c (mm) 600
Weight
2.1 Dead weight (incl. battery) kg 740
Size
4.2 Lowest height after the gantry is lowered h1 (mm) 1970
4.4 Gantry travel h3 (mm) 3000
4.4... Gantry lifting height (fork face to ground) h23 (mm) 2915
4.15 Fork drop height h13(mm) 90
4.19 Overall length l1 (mm) 1881
4.21 Overall width b1/ b2 (mm) 800
4.25 Fork outside distance b5 (mm) 570
4.34.1 Pallet 1000 × 1200 cross path width Ast (mm) 2383
4.34.2 Pallet 800 × 1200 cross path width Ast (mm) 2355
4.35 Turning radius Wa (mm) 1507
Performance parameter
5.1 Travel speed, full / no load km/ h 5.0/5.5
5.2 Max climb, full / no load m/ s 0.2/0.26
 Motor, Power unit
6.4 Battery voltage/nominal capacity V/ Ah 24/100


Company Advantage

• Meenyon is equipped with a professional service team. We are dedicated to providing customers with professional and efficient services.
• Since Meenyon has been working hard in the industry for years. We have accumulated ample experience and mastered the prominent technology of the industry.
• We have a large and complete sales network. Therefore, some of the products have been exported overseas and they are very popular among overseas consumers.
Meenyon is really glad to provide you with business consulting. Feel free to contact us.
