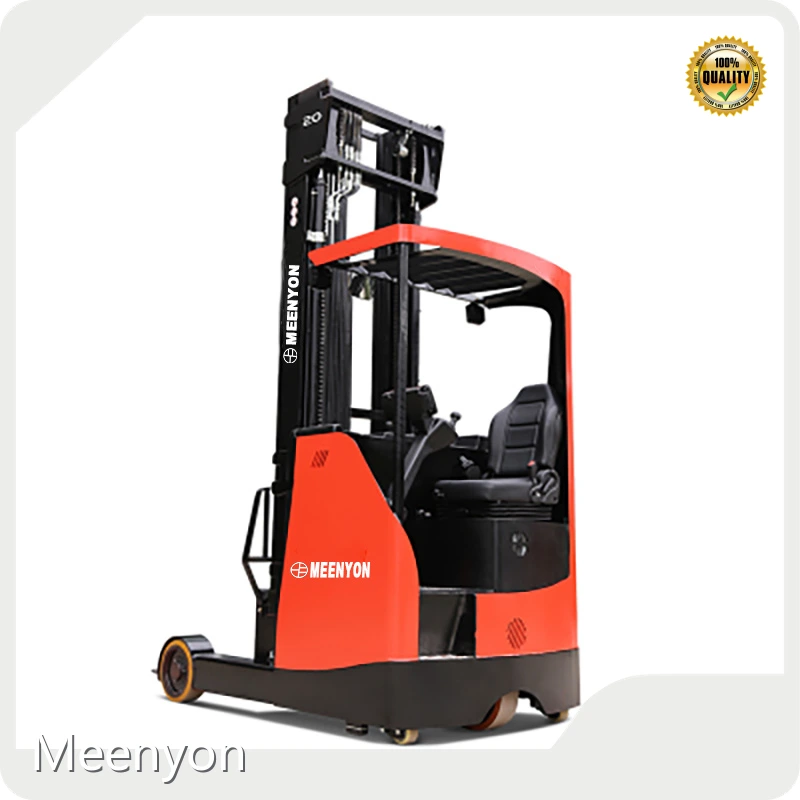

Counterbalance Reach Truck Wholesale
Product selling points
Wide field of vision
◆ Optimized appearance structure, reduced field of vision obstruction, more flexible operation
◆ Instrument steering integrated design, increased operating space, vehicle instrument information is clear at a glance.
Comfortable operation
◆ The control panel fully considers ergonomics, making operation more comfortable.
◆ Based on ergonomics, the cockpit is integrated to greatly improve the operating comfort.
Stable and reliable
◆ The center of gravity of the vehicle is lowered to improve the high-position load-bearing capacity.
◆ The gantry is optimized to increase the high-position load-bearing capacity and is suitable for more working conditions.
◆ The solenoid valve is equipped with a height display (three-level gantry) as standard, and the height positioning makes high-position pickup more accurate.
◆ The width of the vehicle is 1270mm, and the maximum stacking height can reach 12 meters.
◆ It is equipped with 500Ah battery and 65A charger as standard.
◆ It is equipped with built-in side shift as standard, which makes picking up goods more flexible.
COMPANY STRENGTH
| Item | Name | Unit (Code) | ||
| Feature | ||||
| 1.1 | Brand | MEENYON | MEENYON | |
| 1.2 | Model | CQD20RV(F)2 | CQD16RV(F)2 | |
| 1.3 | Power | Electric | Electric | |
| 1.4 | Operation | Car type | Car type | |
| 1.5 | Rated load | Q (kg) | 2000 | 1600 |
| 1.6 | Load center distance | c (mm) | 600 | 600 |
| Weight | ||||
| 2.1 | Dead weight (incl. battery) | kg | 3750② | 3741② |
| Size | ||||
| 4.2 | The lowest height after the gantry is lowered | h1 (mm) | 3219③ | 3219③ |
| 4.4 | Standard max lifting height | h3 (mm) | 7500③ | 7500③ |
| 4.5 | The height of the gantry at its highest lift | h4 (mm) | 8565③ | 8565③ |
| 4.7 | Top guard (cab) height | h6 (mm) | 2213 | 2213 |
| 4.19 | Overall length | l1 (mm) | 2515① | 2515① |
| 4.21 | Overall width | b1/ b2 (mm) | 1260/1270① | 1260/1270① |
| 4.22 | Fork size | s/ e/ l (mm) | 40/120/1070 | 40/100/1070 |
| 4.24 | Stop shelf outside width | b3 (mm) | 990 | 990 |
| 4.25 | Fork outside distance | b5 (mm) | 240/770 | 240/770 |
| 4.26 | Distance between wheel arms | b4 (mm) | 915 | 915 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2889① | 2873① |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2952① | 2951① |
| 4.35 | Turning radius | Wa (mm) | 1770① | 1700① |
| 4.37 | Vehicle length (without fork) | l7(mm) | 1948① | 1878① |
| Performance parameter | ||||
| 5.1 | Travel speed, full / no load | km/ h | 9/9.5 | 10/11 |
| 5.2 | Lifting speed, full/no load | m/ s | 0.35/0.45 | 0.35/0.5 |
| 5.3 | Descending speed ,full/no load | m/ s | 0.41/0.38 | 0.41/0.38 |
| 5.8 | Max climb, full / no load | % | 10/15 | 10/15 |
| Motor, Power unit | ||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 48/500④ | 48/500④ |
Company Advantages
· The production of Meenyon counterbalance reach truck is compatible with the newest technology.
· The reliability of the product translates into a low cost of ownership.
· Meenyon will establish and improve the process assurance system to provide customers with personalized professional counterbalance reach truck products and services.
Company Features
· Meenyon has attracted more customers with good reputation.
· Meenyon has established many counterbalance reach truck production bases and marketing networks in the world.
· Serving our customers with kind attitude is what Meenyon sticks to. Inquire now!
Application of the Product
Our counterbalance reach truck is widely used in multiple industries and fields.
Meenyon insists on providing customers with reasonable solutions according to their actual needs.
