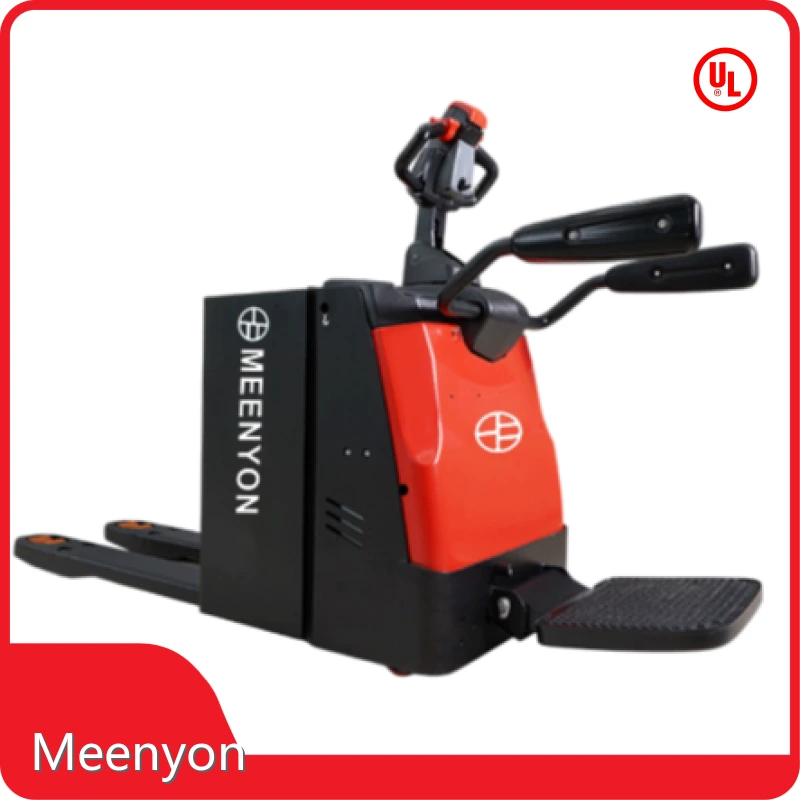

Product details of the powered pallet trucks for sale
Product Introduction
The pattern design of powered pallet trucks for sale can be customized. The product performance is fine, the quality is stable and reliable. Meenyon is expanding its position as market leader.
Product specifications
| Item | Name | Unit (code) | ||||
| Feature | ||||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | RPL201H | RPL251 | RPL201 | RPL301 | |
| 1.3 | Power | Electric | Electric | Electric | Electric | |
| 1.4 | Operation | Standing | Standing | Standing | Standing | |
| 1.5 | Rated load | Q (kg) | 2000 | 2500 | 2000 | 3000 |
| 1.6 | Load center distance | c (mm) | 600 | 600 | 600 | 600 |
| Weight | ||||||
| 2.1 | Dead weight (incl. battery) | kg | 670 | 790 | 670 | 790 |
| Tires, chassis | ||||||
| 3.2 | Front wheel size (diameter × width) | Ф230x75 | Ф230x75 | Ф230x75 | Ф230x75 | |
| Size | ||||||
| 4.4. | Standard max lifting height | h3 (mm) | 120 | 120 | 120 | 120 |
| 4.15 | Fork drop height | h13(mm) | 85 | 85 | 85 | 85 |
| 4.19 | Overall length | l1 (mm) | 1954（2024） | 1954 | 1954（2024） | 1954 |
| 4.21 | Overall width | b1/ b2 (mm) | 734 | 734 | 734 | 734 |
| 4.25 | Fork outside distance | b5 (mm) | 540/685 | 560 / 685 | 540/685 | 560 / 685 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2606 | 2590 | 2606 | 2590 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2463 | 2447 | 2463 | 2447 |
| 4.35 | Turning radius | Wa (mm) | 1806/1826 | 1790 | 1806/1826 | 1790 |
| Performance parameter | ||||||
| 5.1 | Walk speed, full/no load | km/ h | 9 / 12 | 5.5 / 6 | 7.5 / 8 | 5.5 / 6 |
| 5.8 | Max climb, full/no load | % | 8 / 16 | 6 / 16 | 8 / 16 | 6 / 16 |
| 6.4 | Battery voltage/nominal capacity | V/ Ah | Li 24V/150Ah | Li 24V / 150Ah | Li 24V/150Ah | Li 24V / 150Ah |
About UsaAbout The RPL Series
The RPL series is the latest version of the ride-on pallet truck from MEENYON.
They are fully designed around the concept of integrated Li-Ion battery technology and offers quick, opportunity charging and electric power steering are standard.
The RPL 201 can be equipped with a high-speed option for even higher productivity.
The new released RPL 251 and 301 are able to realize heavy-duty applications and satisfy different working conditions.
advantage
Company Advantage
• Meenyon runs the business in good faith and puts customers in the first. We are dedicated to providing quality services for customers.
• With a focus on talents, our company has created an experienced talents team. They have comprehensive strength and high technical level.
• Meenyon is located in a beautiful place with traffic convenience.
• Our company was founded in After years' development, we have broadened our business scope and accumulated a wealth of production experience and professional technical knowledge.
New and old customers, thanks for visiting Meenyon. We insist on producing various jewelry of excellent quality, stylish and elegant look and novel style. If you are interested, feel free to contact and consult us at any time!
