Product details of the electric forklift 3 wheel
Product Information
electric forklift 3 wheel is designed and assembled in state-of-the-art production plant which meets the latest lean manufacturing and quality standards. Our electric forklift 3 wheel have advantages of high quality and low cost for maintenance. We have professional after-sales team to ensure the delighted shopping experience in Meenyon.

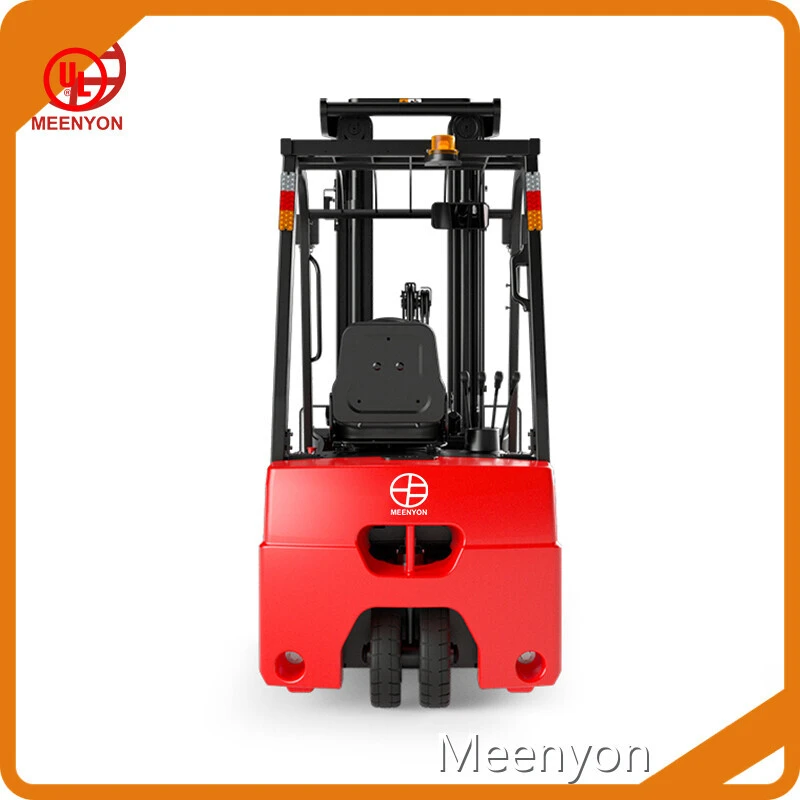

A More Professional 3 Wheel Electric Forklift
Superior performance. Strong motivation
◆ Large capacity battery, longer battery life, stronger power
◆ Built in charger for easy charging and use
◆ Reduced wheelbase for improved maneuverability
◆ Dual drive power, stronger handling power
Waterproof performance. Outdoor
◆ IPX4 waterproof, versatile for indoor and outdoor use, with a wide range of work scenarios.
COMPACT BODY, SMALLER AND MORE COMPACT
Structural optimization. Large space
◆ Optimize driving space and provide more ample footstep operation space. Footstep operation space 394mm
◆ Optimized gantry piping for a wider driving range
Safety design. Stable handling
◆ Upward limit switch, high position return stable
◆ Adopting high-strength channel steel, the gantry is stronger and stable under heavy loads
◆ Standard rubber Airless tire, stable and safer operation
Convenient operation. More comfortable
◆ More comfortable operating experience: front foot brake, rear multi way valve.
Modular design. Excellent quality
◆ The application of Zhongli's new modular design concept ensures stable quality and convenient maintenance
◆ Battery - electronic control - drive - manipulation
COMPANY STRENGTH
| Item | Name | Unit (Code) | |||
| Feature | |||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | CPD15TVL | CPD18TVL | CPD20TVL | |
| Double drive 3 wheel electric truck | |||||
| 1.3 | Power | Electric | Electric | Electric | |
| 1.4 | Operation | Car type | Car type | Car type | |
| 1.5 | Rated load | Q (kg) | 1500 | 1800 | 2000 |
| 1.6 | Load center distance | c (mm) | 500 | 500 | 500 |
| Weight | |||||
| 2.1 | Dead weight (incl. battery) | kg | 2950 | 3269 | 3429 |
| Tires, chassis | |||||
| 3.1 | Tire type, drive wheel/carrier wheel (steering wheel) | Solid tire | Solid tire | Solid tire | |
| Size | |||||
| 4.4 | Max lifting height of standard frame | h3 (mm) | 3000 | 3000 | 3000 |
| 4.7 | Top guard (cab) height | h6 (mm) | 2078 | 2078 | 2078 |
| 4.20. | Length to vertical face of fork | l2 (mm) | 1813 | 1913 | 1950 |
| 4.21 | Overall width | b1/ b2 (mm) | 1070 | 1070 | 1170 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 3175 | 3275 | 3315 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 3300 | 3400 | 3435 |
| 4.35 | Turning radius | Wa (mm) | 1450 | 1550 | 1585 |
| Performance parameter | |||||
| 5.1 | Travel speed, full / no load | km/ h | 13/ 14 | 13/14 | 13/ 14 |
| 5.8 | Max climb, full / no load | % | 10 / 15 | 10 / 15 | 10 / 15 |
| Motor, Power unit | |||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 80/150 | 80/150 | 80/150 |
Company Advantage
• Meenyon was incorporated in After years of trial and struggle, we have finally gained a foothold in the market .
• Our company has professional talents who are in charge of the R&D, production and sales of our products.
• The condition of our company's geographic position is superior with multi traffic lines. We provide convenience for the outward transportation of various products and guarantee the stable supply of goods.
Hello, if you have any comments or suggestions on our please call Meenyon! We look forward to reaching cooperation with you.
