Electric Forklift Company

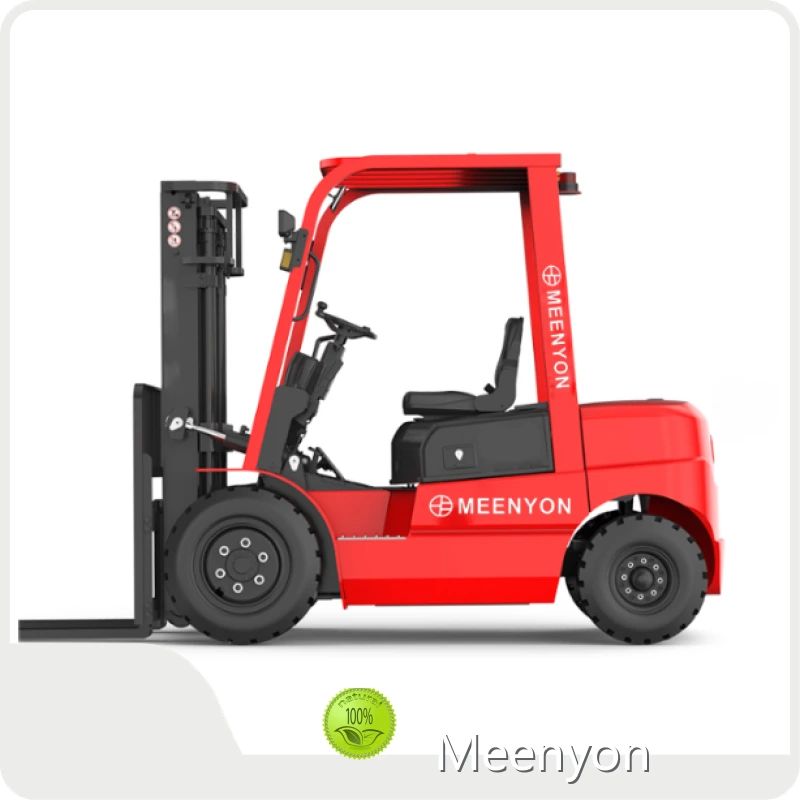

Product details of the electric forklift
Quick Overview
The materials Meenyon electric forklift uses are sourced from reliable suppliers. This product is in compliance with the highest quality standards. The electric forklift managed by Meenyon is widely used in industry. Meenyon has obtained certificate of design patent.
Product Introduction
The electric forklift of Meenyon is of excellent quality, and it is more remarkable to zoom in on the details.
Product specifications
| Item | Name | Unit (Code) | ||||
| Feature | ||||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | ICE302B2 | ICE252B2 | ICE352B2 | ICE322B2 | |
| 1.3 | Power | Electric | Electric | Electric | Electric | |
| 1.4 | Operation | Car type | Car type | Car type | Car type | |
| 1.5 | Rated load | Q (kg) | 3000 | 2500 | 3500 | 3200 |
| 1.6 | Load center distance | c (mm) | 500 | 500 | 500 | 500 |
| Weight | ||||||
| 2.1 | Dead weight (incl. battery) | kg | 4080 | 3770 | 4560 | 4270 |
| Tires, chassis | ||||||
| 3.1 | Tire type, drive wheel/carrier wheel (steering wheel) | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire | |
| Size | ||||||
| 4.4 | Max lifting height of standard frame | h3 (mm) | 3000 | 3000 | 3000 | 3000 |
| 4.7 | Top guard (cab) height | h6 (mm) | 2160 | 2160 | 2190 | 2160 |
| 4.20. | Length to vertical face of fork | l2 (mm) | 2665 | 2503 | 2726 | 2726 |
| 4.21 | Overall width | b1/ b2 (mm) | 1230 | 1154 | 1230 | 1230 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 4118 | 3985 | 4170 | 4170 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 4318 | 4195 | 4370 | 4370 |
| 4.35 | Turning radius | Wa (mm) | 2437 | 2290 | 2484 | 2484 |
| Performance parameter | ||||||
| 5.1 | Travel speed, full / no load | km/ h | 11 / 12 | 11 / 12 | 11 / 12 | 11 / 12 |
| 5.8 | Max climb, full / no load | % | 15/15 | 15/15 | 15/15 | 15/15 |
| Motor, Power unit | ||||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 80/205 | 80/150 | 80/280 | 80/205 |
advantage
product display
Company Introduction
Meenyon, a trustworthy provider of electric forklift based in China, has accumulated rich experience in the development, design, and manufacture. Through years of innovation and development, we have built our company into an international one, with business interests in many countries and regions across all five Continents. To achieve sustainable development, we will adopt green technologies and practices. We will work hard to increase energy efficiency, reduce greenhouse gases under these specific technologies.
If you want to know more relevant product information, feel free to contact us. We are dedicated to serving you.
