Product details of the electric forklift pallet truck
Product Overview
Our electric forklift pallet truck are in various style, including electric forklift pallet truck. The quality of this product is thoroughly inspected by the QC team. Our electric forklift pallet truck is widely used in multiple industries and fields. Meenyon always puts great importance on outer packing of electric forklift pallet truck to ensure quality.
Product Description
Meenyon's electric forklift pallet truck is of excellent quality, which is reflected in the details.
Product specifications
Item | Name | Unit (Code) | |
Feature | |||
1.1 | Brand | MEENYON | |
1.2 | Model | ES15-15ES | |
1.3 | Power | Electric | |
1.4 | Operation | Walking | |
1.5 | Rated load | Q (kg) | 1500 |
1.6 | Load center distance | c (mm) | 600 |
Weight | |||
2.1 | Dead weight (incl. battery) | kg | 755 |
Size | |||
4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2128 |
4.4 | Standard max lifting height | h3 (mm) | 3227 |
4.15 | Fork drop height | h13(mm) | 88 |
4.19 | Overall length | l1 (mm) | 1740 |
4.21 | Overall width | b1/ b2 (mm) | 800 |
4.25 | Fork outside distance | b5 (mm) | 570 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2340 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2260 |
4.35 | Turning radius | Wa (mm) | 1500 |
Performance parameter | |||
5.1 | Travel speed, full / no load | km/ h | |
5.2 | Max climb, full / no load | m/ s | 0.13/0.2 |
Motor, Power unit | |||
6.4 | Battery voltage/nominal capacity | V/ Ah | 2*12V/125Ah |
Key Highlights
About The ES15-15ES

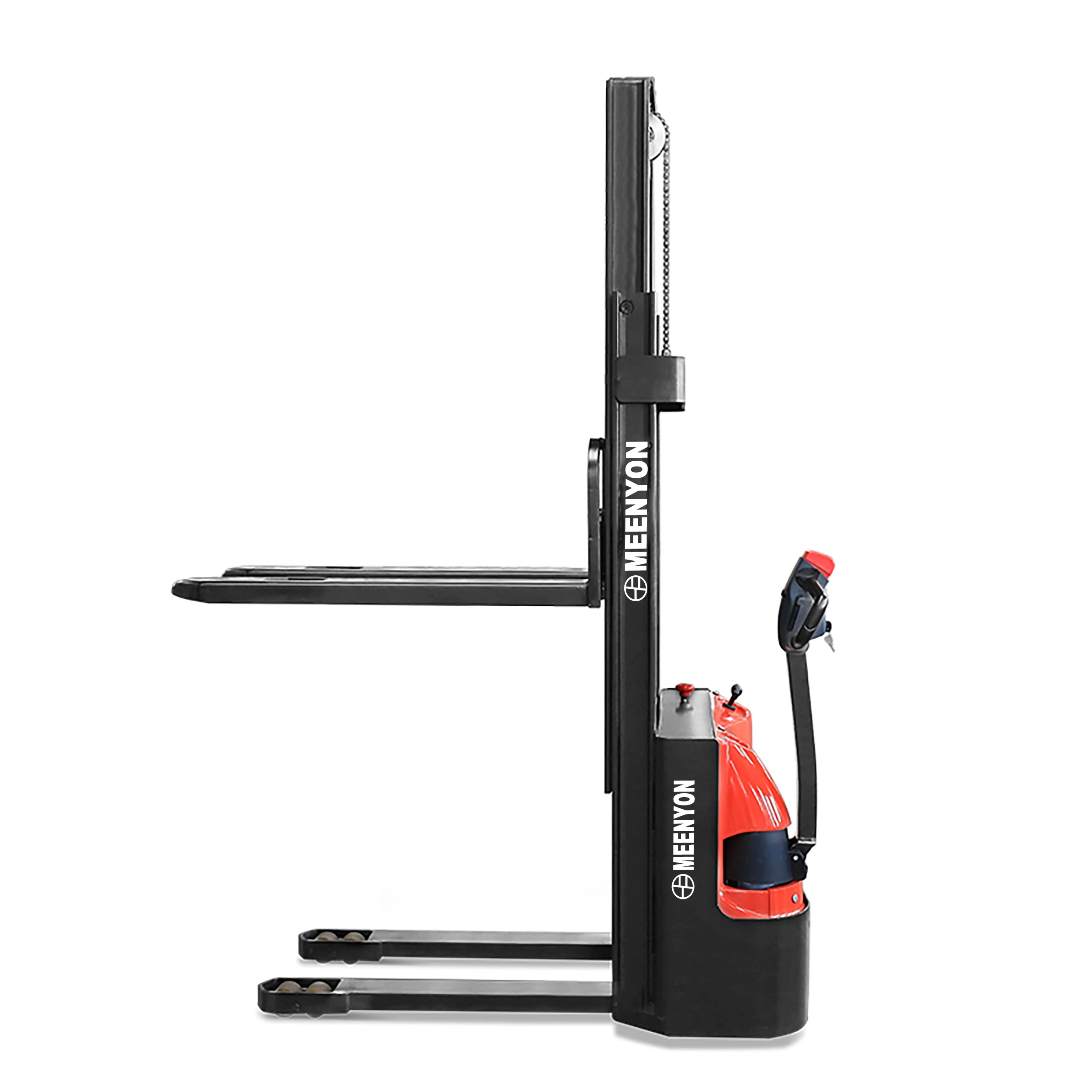

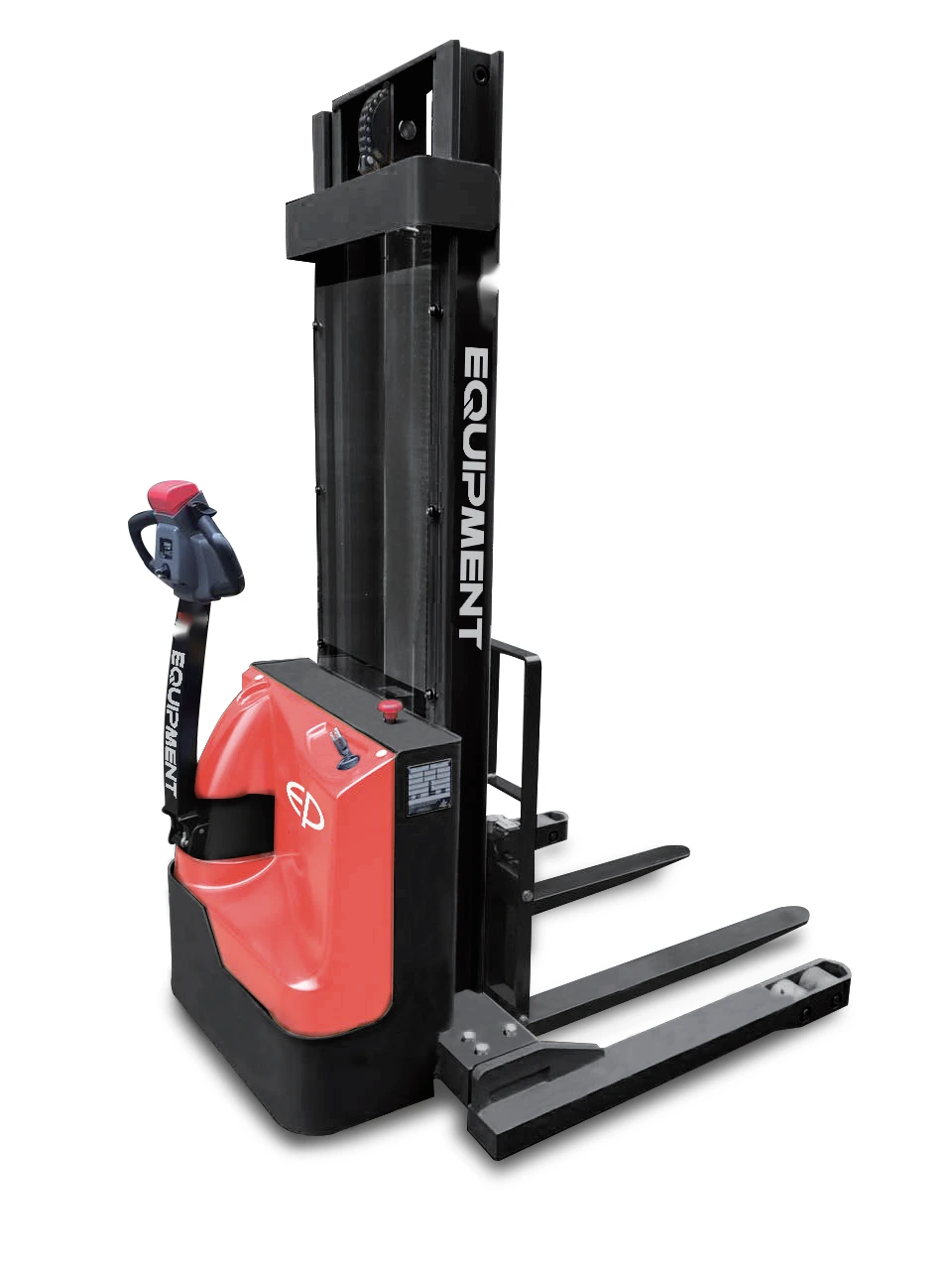

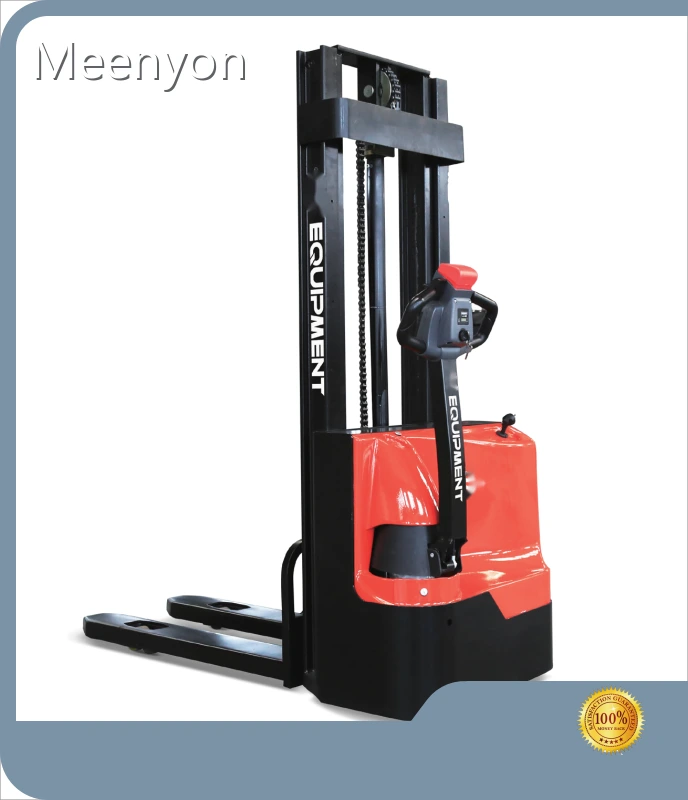

◆ The Electric Stacker ES 15-15ES is the perfect choice if you are looking for a compact, but powerful electric pallet stacker.
◆ Due to its AC engine and the 125Ah AGM batteries, this truck is much smaller then common 1.5ton electric stackers, making it an ideal choice for navigating in tight spaces or narrow aisles.
Application
◆ Medium to Heavy Duty: Despite the compact size, the AC system offers a strong performance of this stacker. It is ideal for heavy-duty tasks in warehouse environments.
◆ Vertical Storage: With a lifting height of up to 3600mm this pallet stacker is perfect for vertical storage and stacking.
◆ Narrow Aisles: Due to its small size, this compact stacker is ideal for tight spaces and narrow aisles.
PRODUCT DISPLAY
Company Advantages
Meenyon, a company, is dedicated to the development and production of To improve service, Meenyon has an excellent service team and runs a one-for-one service pattern between enterprises and customers. Each customer is equipped with a service staff. If you have any questions, feel free to consult us.
