Product details of the electric forklift supplier
Product Introduction
Meenyon electric forklift supplier is produced in a highly standardized production environment. To assure its quality, the product is manufactured under the supervision of our experienced QA team. Meenyon has established professional R&D Center of electric forklift supplier production.
Product specifications
| Item | Name | Unit (Code) | ||||
| Feature | ||||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | ICE302B2 | ICE252B2 | ICE352B2 | ICE322B2 | |
| 1.3 | Power | Electric | Electric | Electric | Electric | |
| 1.4 | Operation | Car type | Car type | Car type | Car type | |
| 1.5 | Rated load | Q (kg) | 3000 | 2500 | 3500 | 3200 |
| 1.6 | Load center distance | c (mm) | 500 | 500 | 500 | 500 |
| Weight | ||||||
| 2.1 | Dead weight (incl. battery) | kg | 4080 | 3770 | 4560 | 4270 |
| Tires, chassis | ||||||
| 3.1 | Tire type, drive wheel/carrier wheel (steering wheel) | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire | |
| Size | ||||||
| 4.4 | Max lifting height of standard frame | h3 (mm) | 3000 | 3000 | 3000 | 3000 |
| 4.7 | Top guard (cab) height | h6 (mm) | 2160 | 2160 | 2190 | 2160 |
| 4.20. | Length to vertical face of fork | l2 (mm) | 2665 | 2503 | 2726 | 2726 |
| 4.21 | Overall width | b1/ b2 (mm) | 1230 | 1154 | 1230 | 1230 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 4118 | 3985 | 4170 | 4170 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 4318 | 4195 | 4370 | 4370 |
| 4.35 | Turning radius | Wa (mm) | 2437 | 2290 | 2484 | 2484 |
| Performance parameter | ||||||
| 5.1 | Travel speed, full / no load | km/ h | 11 / 12 | 11 / 12 | 11 / 12 | 11 / 12 |
| 5.8 | Max climb, full / no load | % | 15/15 | 15/15 | 15/15 | 15/15 |
| Motor, Power unit | ||||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 80/205 | 80/150 | 80/280 | 80/205 |
advantage

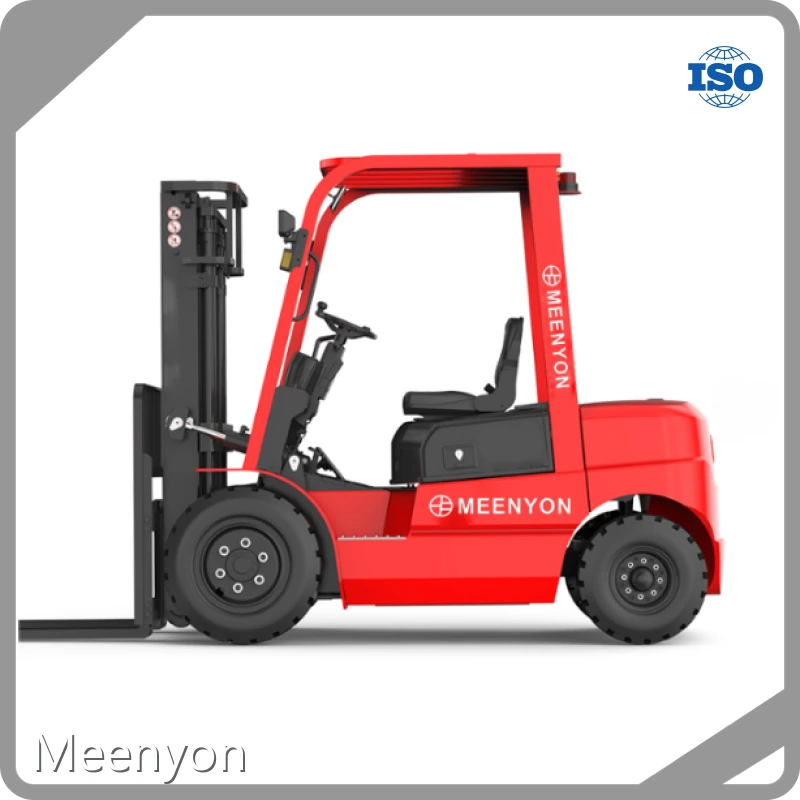

product display
Company Feature
• Our company has a number of high-quality management personnel and technical personnel with professional skills and rich practical experience. All this provides a solid technical force and management ability for our development.
• After years of development, Meenyon becomes the leader in the industry.
• Meenyon has a professional service team whose team members are dedicated to solving all kinds of problems for customers. We also run a comprehensive after-sales service system which enables us to provide a worry-free experience.
We only produce high-quality products. Welcome customers to contact customer service staff for consultation!
