Product details of the electric pallet jack
Quick Detail
Meenyon can satisfy different design requirements. Our quality management system ensures that our products meet international quality standards. With so many advantages, the product is widely praised among customers and widely applied in the global market now.
Product Information
Our company pursues superior quality. In the production process, we are dedicated to creating perfection in every detail.
Product specifications
Item | Name | Unit (code) | ||||
Feature | ||||||
1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
1.2 | Model | RPL201H | RPL251 | RPL201 | RPL301 | |
1.3 | Power | Electric | Electric | Electric | Electric | |
1.4 | Operation | Standing | Standing | Standing | Standing | |
1.5 | Rated load | Q (kg) | 2000 | 2500 | 2000 | 3000 |
1.6 | Load center distance | c (mm) | 600 | 600 | 600 | 600 |
Weight | ||||||
2.1 | Dead weight (incl. battery) | kg | 670 | 790 | 670 | 790 |
Tires, chassis | ||||||
3.2 | Front wheel size (diameter × width) | Ф230x75 | Ф230x75 | Ф230x75 | Ф230x75 | |
Size | ||||||
4.4. | Standard max lifting height | h3 (mm) | 120 | 120 | 120 | 120 |
4.15 | Fork drop height | h13(mm) | 85 | 85 | 85 | 85 |
4.19 | Overall length | l1 (mm) | 1954(2024) | 1954 | 1954(2024) | 1954 |
4.21 | Overall width | b1/ b2 (mm) | 734 | 734 | 734 | 734 |
4.25 | Fork outside distance | b5 (mm) | 540/685 | 560 / 685 | 540/685 | 560 / 685 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2606 | 2590 | 2606 | 2590 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2463 | 2447 | 2463 | 2447 |
4.35 | Turning radius | Wa (mm) | 1806/1826 | 1790 | 1806/1826 | 1790 |
Performance parameter | ||||||
5.1 | Walk speed, full/no load | km/ h | 9 / 12 | 5.5 / 6 | 7.5 / 8 | 5.5 / 6 |
5.8 | Max climb, full/no load | % | 8 / 16 | 6 / 16 | 8 / 16 | 6 / 16 |
6.4 | Battery voltage/nominal capacity | V/ Ah | Li 24V/150Ah | Li 24V / 150Ah | Li 24V/150Ah | Li 24V / 150Ah |
About UsaAbout The RPL Series

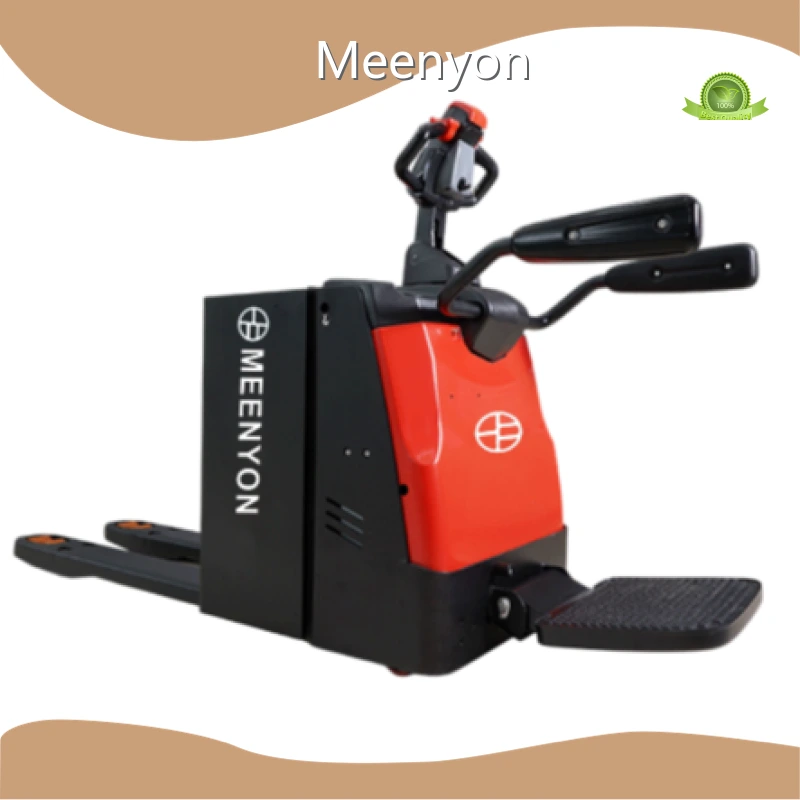

The RPL series is the latest version of the ride-on pallet truck from MEENYON.
They are fully designed around the concept of integrated Li-Ion battery technology and offers quick, opportunity charging and electric power steering are standard.
The RPL 201 can be equipped with a high-speed option for even higher productivity.
The new released RPL 251 and 301 are able to realize heavy-duty applications and satisfy different working conditions.
