Product specifications
Item | Name | Unit (code) | ||||
Feature | ||||||
1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
1.2 | Model | RPL201H | RPL251 | RPL201 | RPL301 | |
1.3 | Power | Electric | Electric | Electric | Electric | |
1.4 | Operation | Standing | Standing | Standing | Standing | |
1.5 | Rated load | Q (kg) | 2000 | 2500 | 2000 | 3000 |
1.6 | Load center distance | c (mm) | 600 | 600 | 600 | 600 |
Weight | ||||||
2.1 | Dead weight (incl. battery) | kg | 670 | 790 | 670 | 790 |
Tires, chassis | ||||||
3.2 | Front wheel size (diameter × width) | Ф230x75 | Ф230x75 | Ф230x75 | Ф230x75 | |
Size | ||||||
4.4. | Standard max lifting height | h3 (mm) | 120 | 120 | 120 | 120 |
4.15 | Fork drop height | h13(mm) | 85 | 85 | 85 | 85 |
4.19 | Overall length | l1 (mm) | 1954(2024) | 1954 | 1954(2024) | 1954 |
4.21 | Overall width | b1/ b2 (mm) | 734 | 734 | 734 | 734 |
4.25 | Fork outside distance | b5 (mm) | 540/685 | 560 / 685 | 540/685 | 560 / 685 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2606 | 2590 | 2606 | 2590 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2463 | 2447 | 2463 | 2447 |
4.35 | Turning radius | Wa (mm) | 1806/1826 | 1790 | 1806/1826 | 1790 |
Performance parameter | ||||||
5.1 | Walk speed, full/no load | km/ h | 9 / 12 | 5.5 / 6 | 7.5 / 8 | 5.5 / 6 |
5.8 | Max climb, full/no load | % | 8 / 16 | 6 / 16 | 8 / 16 | 6 / 16 |
6.4 | Battery voltage/nominal capacity | V/ Ah | Li 24V/150Ah | Li 24V / 150Ah | Li 24V/150Ah | Li 24V / 150Ah |
About UsaAbout The RPL Series

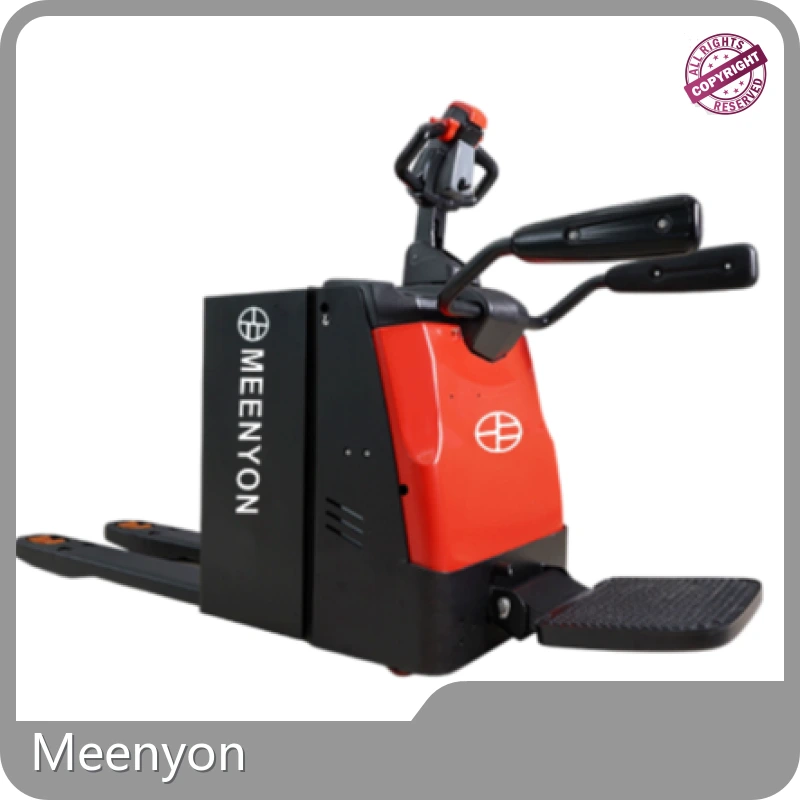

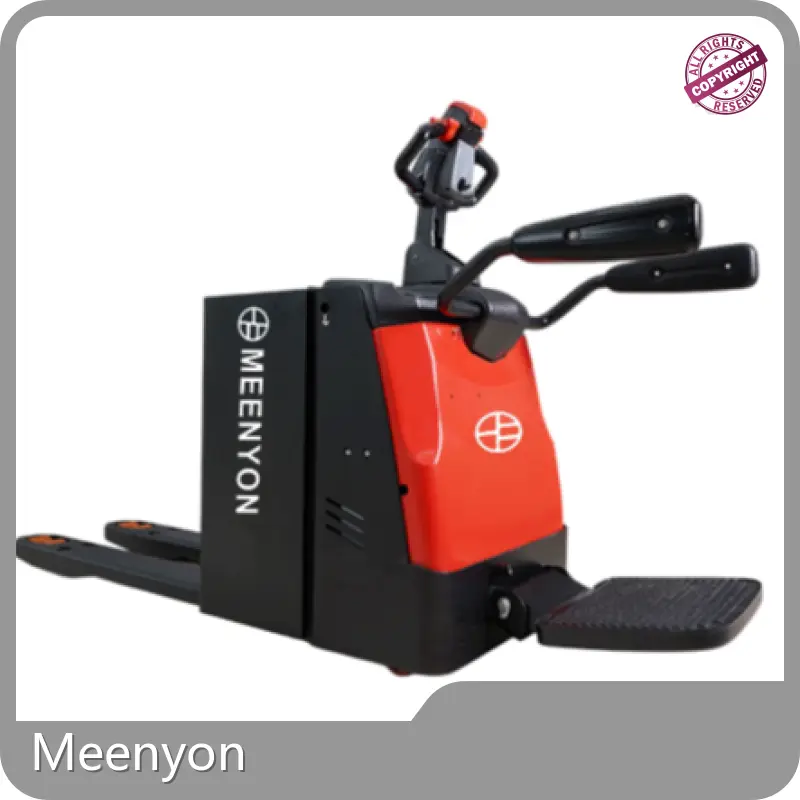

The RPL series is the latest version of the ride-on pallet truck from MEENYON.
They are fully designed around the concept of integrated Li-Ion battery technology and offers quick, opportunity charging and electric power steering are standard.
The RPL 201 can be equipped with a high-speed option for even higher productivity.
The new released RPL 251 and 301 are able to realize heavy-duty applications and satisfy different working conditions.
advantage
Company Advantages
· The whole production of Meenyon electric pallet jack manufacturer is carried out based on the requirement of lean production.
· The product is tested to be of the highest quality again and again.
· Meenyon offers after sales technical service support to its overseas customers.
Company Features
· Meenyon centers on the development and production of electric pallet jack manufacturer. We have accumulated years of experience in the industry.
· Meenyon has strong technical force and exquisite production technology.
· Meenyon always set high demand on its staff to provide best service for our customers. Get info!
Application of the Product
The electric pallet jack manufacturer produced by our company is widely used in various industries and fields.
While providing excellent products, Meenyon is dedicated to providing personalized solutions for customers according to their needs and actual situations.
