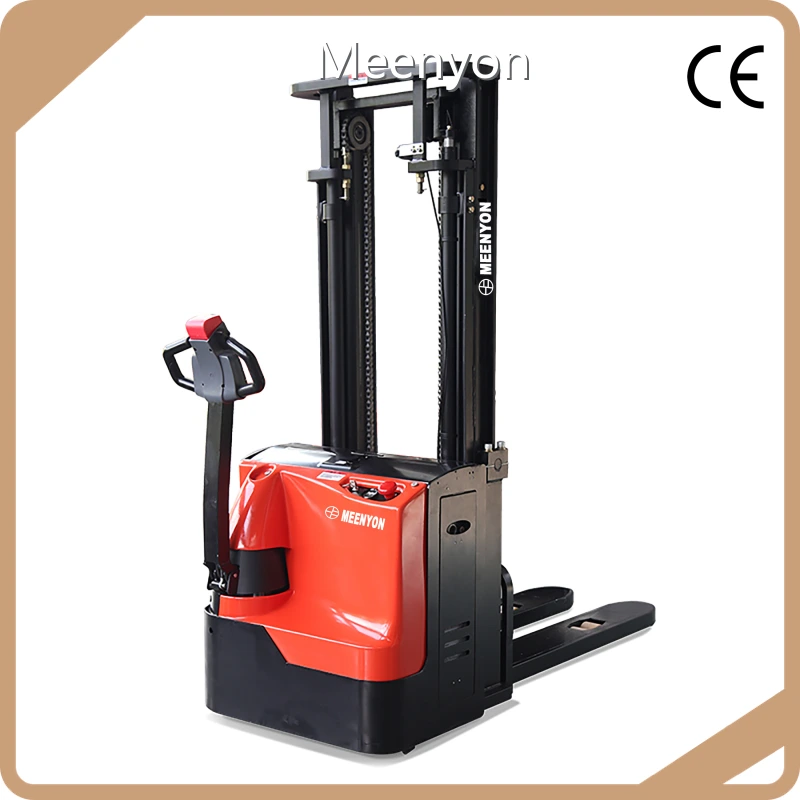

Product details of the Electric Pallet Lifts
Product Overview
When designing Meenyon Electric Pallet Lifts, the design team invests plenty of time in market research and designs a product that is more superior than others. Years of application of Electric Pallet Lifts proves the good performances and the good application effect of it. The Electric Pallet Lifts developed and produced by our company can be widely used in various industries and professional fields. At present Meenyon has independently developed into a brand named Meenyon specializing in Electric Pallet Lifts.
Product Introduction
With the pursuit of perfection, Meenyon exerts ourselves for well-organized production and high-quality Electric Pallet Lifts.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ES20-WA | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 2000 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 1170 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2020 |
| 4.4 | Standard max lifting height | h3 (mm) | 2912 |
| 4.15 | Fork drop height | h13(mm) | 88 |
| 4.19 | Overall length | l1 (mm) | 1940 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 |
| 4.25 | Fork outside distance | b3 (mm) | 600 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2465 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2440 |
| 4.35 | Turning radius | Wa (mm) | 1589 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 4.5/5.0 |
| 5.2 | Max climb, full / no load | m/ s | 0.11/0.16 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24V/280Ah |
