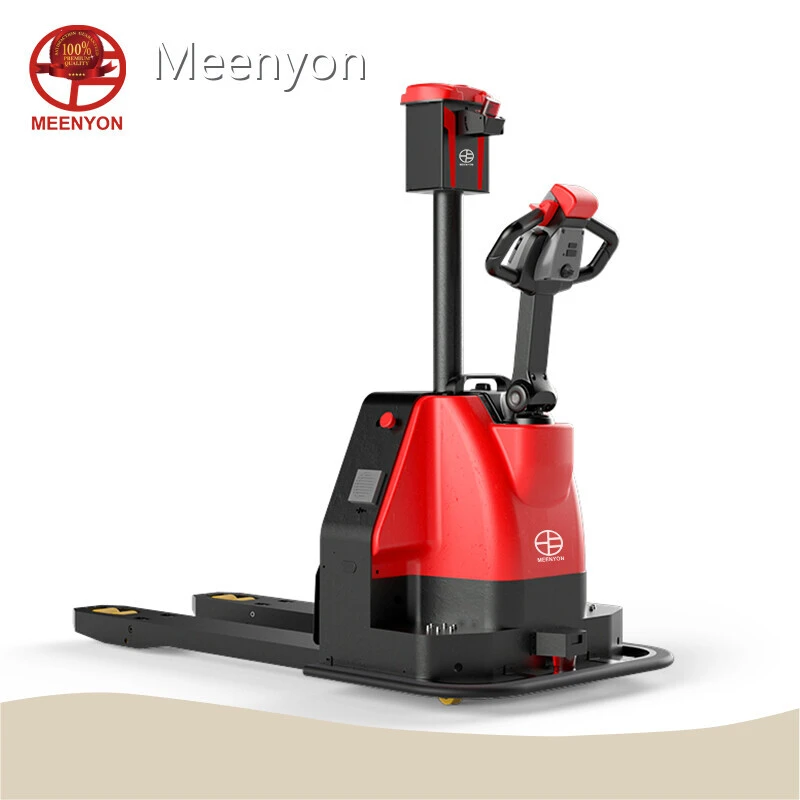

Product details of the electric pallet truck suppliers
Product Introduction
Meenyon electric pallet truck suppliers is manufactured using the finest quality raw materials. Our professional team ensures that the product is flawless and trouble-free before leaving the factory. Meenyon's electric pallet truck suppliers products are recognized and praised at home and abroad.
INTRODUCE
The product is used to solve the same workshop, cross-workshop, cross-floor plane handling problems
Classification
Model B (XP1-GB=0.5 manual labor+1 small gold steel)
◆ Two core technologies:
Manual (Fork/Unloading)
One click start (side reset button)
Model S (XP1-GS=1 manual+1 small gold steel)
◆ Three core technologies:
One click start (phone one click start task)
Automatic (Fork/Unload)
Can switch tasks at will (achieve warehouse location management and timely replenishment)
Advantage
Visual navigation stabilization
◆ Original visual navigation technology, can adapt to any changes in the surrounding environment, strong anti-interference.
No need to install super convenient
◆ No system, no special WIFI system, with the purchase, with the addition
◆ No environmental modification required
◆ Quick landing put into use
◆ Full scenario application
◆ Quick battery change, long battery life
Phone setup is super easy
◆ Bluetooth start, set and change the running route at will, switch tasks .
A car with dual functions
◆ No professional training is required, it can be a robot or an electric carrier
Multiple protection super security
◆ Laser detection automatic obstacle avoidance, anti-collision strip physical obstacle avoidance, manual cut off power emergency stop hedge.
A new logistics model for intelligent handling
◆ Circulation family XP1-GB XP-GS XP1-151 XC1-051
◆ Circulation scheme
◆ Machinery manufacturing -- circulation bus model
◆ Machinery manufacturing -- Circulation taxi model
◆ Cable industry - Circulation patterns
◆ Motorcycle manufacturing - Circulation model
COMPANY STRENGTH
Item |
Name |
Unit (Code) |
|
Feature |
|
|
|
1.1 |
Brand |
|
MEENYON |
1.2 |
Model |
|
XPG151 |
1.4 |
Operation |
|
Walking style |
1.5 |
Rated load |
Q (kg) |
1500 |
1.6 |
Load center distance |
c (mm) |
600 |
Weight |
|
|
|
2.1 |
Dead weight (incl. battery) |
kg |
325 |
Size |
|
|
|
4.2.1 |
Overall height |
h15(mm) |
1470 |
4.4. |
Standard max lifting height |
h3 (mm) |
95 |
4.15 |
Height of fork after lowering |
h13(mm) |
90 |
4.19 |
Overall length |
l1 (mm) |
1635 |
4.20. |
Length of the vertical surface of the delivery fork |
l2 (mm) |
485 |
4.21 |
Overall width |
b1/ b2 (mm) |
820 |
4.22 |
Fork size |
s/ e/ l (mm) |
55/170/1150 |
4.25 |
Fork outer width |
b5 (mm) |
540/600/685 |
4.35 |
Turning radius |
Wa (mm) |
1500 |
Performance parameter |
|
|
|
5.1 |
Walk speed, full/no load |
km/ h |
1/1.5 |
5.8 |
Max climb, full/no load |
% |
5月10日 |
Motor, Power unit |
|
|
|
6.4 |
Battery voltage/nominal capacity |
V/ Ah |
lithium battery 24/60 |
Other parameters |
|
|
|
10.16 |
Navigation accuracy |
mm |
±30 |
10.17 |
Charging method |
|
Replacing the battery |
10.18 |
endurance |
h |
4-5(Exchangeable electricity) |
10.19 |
charge and discharge |
number of times |
1000 |
10.22 |
Safety tips |
|
Voice module |
10.23 |
safety protection① |
|
Bottom 180 ° obstacle avoidance radar Top 180 ° obstacle avoidance radar downward |
10.24 |
safety protection② |
|
Fork tip photoelectric |
10.29 |
Navigation method |
|
vision navigation |
10.30. |
Communication method |
|
4G/WIFI |
