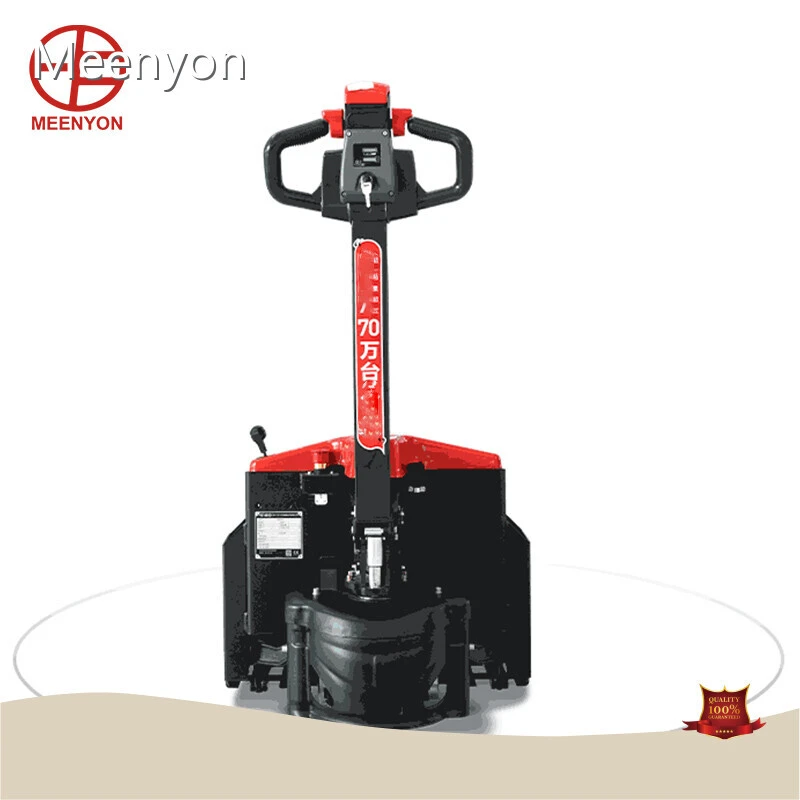

Electric Powered Pallet Jack - - Meenyon
Four advantages
Powerful performance
◆ Continuous work can be up to 4-6 hours, can fully meet the day's handling work
◆ Fork lower height. As low as 80MM for various pallet heights. It weighs about 200 pounds
◆ Unique pallet design, from the traditional friction access tray to rolling access tray
◆ Reinforcement type forked leg design. Better strength than the traditional flat fork leg
◆Multi-function handle design. Set key, electric meter, control signal light and operation button as one, the operation is more simple
Operation safety
◆ New scram switch design. Less parts than the traditional scram switch, simple and reliable structure
◆ Drive wheel protection design. Can effectively protect the operator to prevent pressure foot, safer operation
◆ Cable optimization design. Optimize cable harness layout to minimize moving parts and minimize failures
System intelligence
◆ Intelligent electric reminder. Low voltage protection function, when the battery power is less than 10%, the driving speed is slowed down, reminding the operator to charge in time
◆ Smart sleep for 1 hour. In case of forgetting to turn off the power after use, the vehicle will automatically power off to protect the battery, extend the service life of the battery, and use more peace of mind
Easy maintenance
◆ More convenient maintenance. Technological innovation improves the structure of electric vehicles, so that maintenance is not delayed
◆ Remove the battery cap. Battery case cover front innovation, easy to replace the battery
COMPANY STRENGTH
|
Item |
Name |
Unit (Code) |
|
|
Feature |
|||
|
1.1 |
Brand |
|
MEENYON |
|
1.2 |
Model |
|
EPT20-15ET5 (Lithium Battery) |
|
1.3 |
Power |
|
Electric |
|
1.4 |
Operation |
|
Walking |
|
1.5 |
Rated load |
Q (kg) |
1500 |
|
1.6 |
Load center distance |
c (mm) |
600 |
|
Weight |
|||
|
2.1 |
Dead weight (incl. battery) |
kg |
130 |
|
Tires, chassis |
|||
|
3.2 |
Front wheel size (diameter × width) |
|
210x70 |
|
Size |
|||
|
4.4 |
Standard max lifting height |
h3 (mm) |
110 |
|
4.15 |
Fork drop height |
hl3(mm) |
82 |
|
4.19 |
Overall length |
l1(mm) |
1618 |
|
4.21 |
Overall length |
b1/ b2 (mm) |
695/620 |
|
4.25 |
Fork outside distance |
b5 (mm) |
685/560 |
|
4.34.1 |
Pallet 1000 × 1200 cross path width |
Ast (mm) |
2195 |
|
4.34.2 |
Pallet 800 × 1200 cross path width |
Ast (mm) |
2252 |
|
4.35 |
Turning radius |
Wa (mm) |
1434 |
|
Performance parameter |
|||
|
5.1 |
Walk speed, full /no load |
km/ h |
4/4.5 |
|
5.2 |
Lifting speed, full/no load |
m/s |
0.02/0.026 |
|
5.3 |
Descending speed, full /no load |
m/ s |
Manual descent |
|
5.8 |
Maximum climbing slope, full/no load |
% |
5/16 |
|
5.10 |
Service brake type |
|
electromagnism |
|
Motor, Power unit |
|||
|
6.1 |
Rated power of drive motor S2 60min |
kw |
0.75 |
|
6.2 |
Rated power of lifting motor S3 15% |
kw |
0.5 |
|
6.4 |
Battery voltage/nominal capacity |
V/ Ah |
24/40 |
|
Drive/lift mechanism |
|||
|
8.1 |
Drive control type |
|
DC |
|
Other parameter |
|||
|
10.5 |
Steering type |
|
Mechanical |
|
10.7 |
Noise level |
dB(A) |
<74 |
Company Advantages
· Meenyon electric powered pallet jack is manufactured through superior manufacturing processes.
· Our company has passed the ISO9001quality system certification, providing a more reliable guarantee for the quality of the product.
· Meenyon has strong technical strength and economic strength.
Company Features
· Meenyon aims to be a top player based on the electric powered pallet jack along with attentive service.
· Our manufacturing plant is located in the mainland, China. The plant provides easy access to international sea and airports, which effectively supports us to deliver quality products with speed.
· The service provided by Meenyon is highly reputable in the market. Ask!
Application of the Product
Meenyon's electric powered pallet jack can be used in multiple scenes.
We work hard to develop solutions that best meet the needs of our customers based on their actual situation, so as to help each customer succeed.
