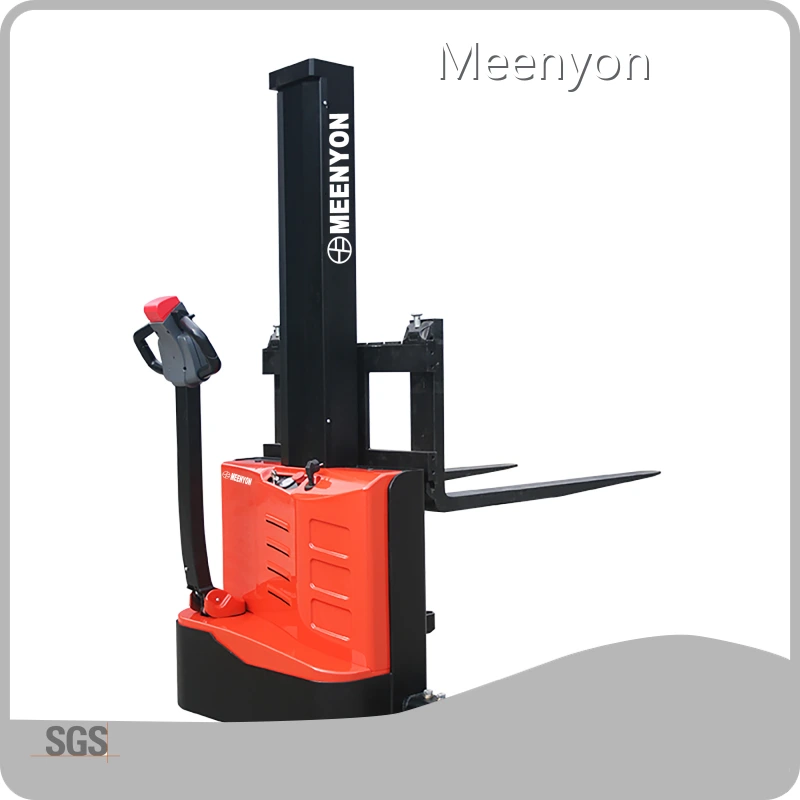

Electric Stacker Pallet Jack by Meenyon
Company Advantages
· Each step is strictly monitored by the professional quality inspection department. A continuous inspection system is implemented to ensure the high quality of this product.
· Any defect of the product has been avoided or eliminated during our strict quality assurance procedure.
· We have found that this product has a tendency to be more applicable.
Product specifications
| Item | Name | Unit (Code) | ||
| Feature | ||||
| 1.1 | Brand | MEENYON | MEENYON | |
| 1.2 | Model | ES10-22MM | ES12-25MM | |
| 1.3 | Power | Electric | Electric | |
| 1.4 | Operation | Walking | Walking | |
| 1.5 | Rated load | Q (kg) | 1000 | 1200 |
| 1.6 | Load center distance | c (mm) | 600 | 600 |
| Weight | ||||
| 2.1 | Dead weight (incl. battery) | kg | 543 | 543 |
| Size | ||||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1940 | 1940 |
| 4.4 | Standard max lifting height | h3 (mm) | 1510 | 1510 |
| 4.15 | Fork drop height | h13(mm) | 60 | 60 |
| 4.19 | Overall length | l1 (mm) | 1570 | 1570 |
| 4.21 | Overall width | b1/ b2 (mm) | 1135/1235/1335/1435 | 1135/1235/1335/1435 |
| 4.25 | Fork outside distance | b5 (mm) | 200~760 | 200~760 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2175 | 2175 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2100 | 2100 |
| 4.35 | Turning radius | Wa (mm) | 1329 | 1329 |
| Performance parameter | ||||
| 5.1 | Travel speed, full / no load | km/ h | 4 / 4.5 | 4 / 4.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.12/0.22 | 0.12/0.22 |
| Motor, Power unit | ||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 2*12V/85Ah | 2*12V/85Ah |
Company Features
· Meenyon is broadly regarded as a reliable manufacturer of electric stacker pallet jack.
· Our company has state-of-the-art manufacturing facilities. Modern and rational manufacturing methods, as well as extensive quality management, form the basis for technically perfected and economically high-grade electric stacker pallet jack. Our company has excellent manufacturing facilities. Using state-of-the-art manufacturing methods, as well as a comprehensive system of quality management, our company has built a solid foundation for sophisticated, high-quality machinery and systems, both technologically and financially. Our company has various departments. Valuable synergies arise from close co-operation by means of active exchange between different areas of expertise, which contribute to the creation of excellent electric stacker pallet jack.
· To provide more and better high quality electric stacker pallet jack, Meenyon aim to create a trustworthy and responsible enterprise. Get more info!
Product Comparison
We insist on regulating the production process of the products in accordance with standards, so as to promote the electric stacker pallet jack has higher quality. Compared with peer products, the specific advantages are mainly reflected in the following aspects.
