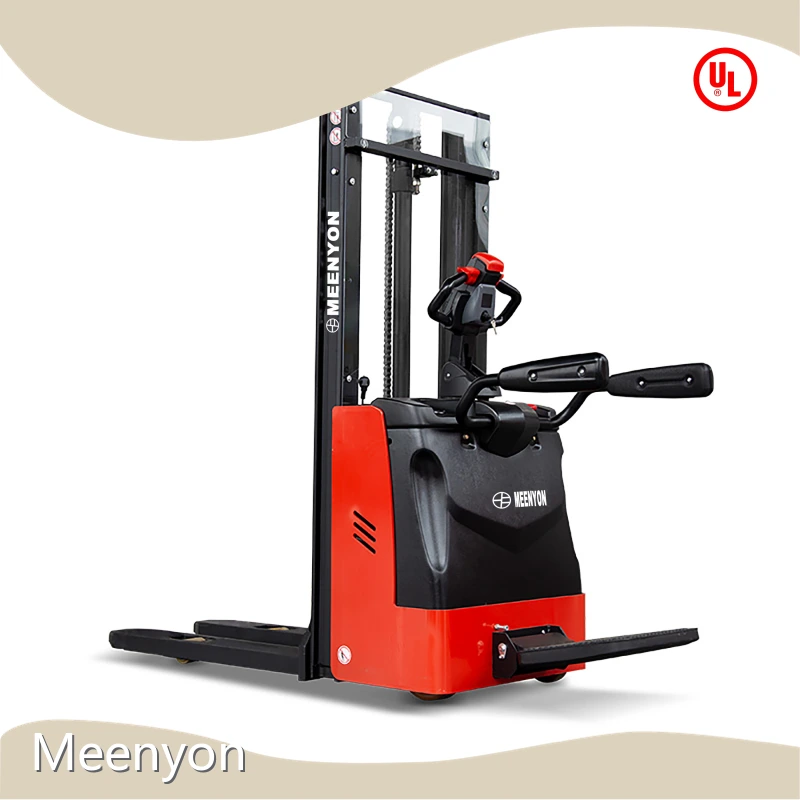

Electric Stacker Pallet Jack Dealer
Company Advantages
· The design of electric stacker pallet jack has been a focus in the field to become more competitive.
· There is continuous attention to quality throughout the production process.
· Through the nationwide sales network of the corporation Meenyon can distribute goods easily to various parts of the country.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | RSB151Z | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 770 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1970 |
| 4.4 | Standard max lifting height | h3 (mm) | 2915 |
| 4.15 | Fork drop height | h13(mm) | 85 |
| 4.19 | Overall length | l1 (mm) | 1754 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 |
| 4.25 | Fork outside distance | b5 (mm) | 570/685 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2330 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2300 |
| 4.35 | Turning radius | Wa (mm) | 1455 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 5 / 5.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.10/0.18 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 48/85 |
Company Features
· Meenyon has spent decades of years developing high-end ranges of electric stacker pallet jack.
· Meenyon has high-qualified business administrative staff and professional technicians. Meenyon has rich technological strength and leading craft of manufacturing.
· Meenyon seeks bright, creative groups to cooperate with us! Inquiry!
Product Comparison
Compared with peer products, our electric stacker pallet jack has more obvious advantages and they are reflected in the following aspects.
