Product details of the electric stackers
Quick Detail

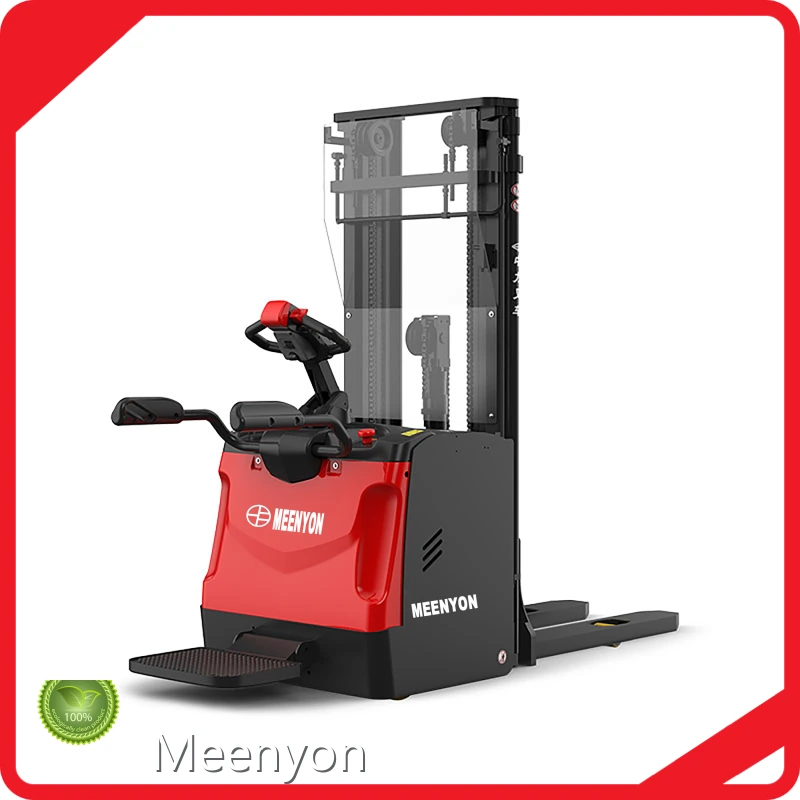

The shape of Meenyon electric stackers is more compact and is convenient to use. Non-stop work for our electric stackers is its big strength. Meenyon is committed to providing customers with high quality and competitive products and services.
Product Description
The electric stackers produced by Meenyon has better quality, as shown below.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | RSB161 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1600 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | —— |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1970 |
| 4.4 | Gantry travel | h3 (mm) | 3000 |
| 4.4... | Gantry lifting height (fork face to ground) | h23 (mm) | 2915 |
| 4.15 | Fork drop height | h13(mm) | 85 |
| 4.19 | Overall length | l1 (mm) | 2070 |
| 4.21 | Overall width | b1/ b2 (mm) | 850 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2970 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2120 |
| 4.35 | Turning radius | Wa (mm) | 2120 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 5.5/6.0 |
| 5.2 | Max climb, full / no load | m/ s | 0.13/0.16 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24/230 |
