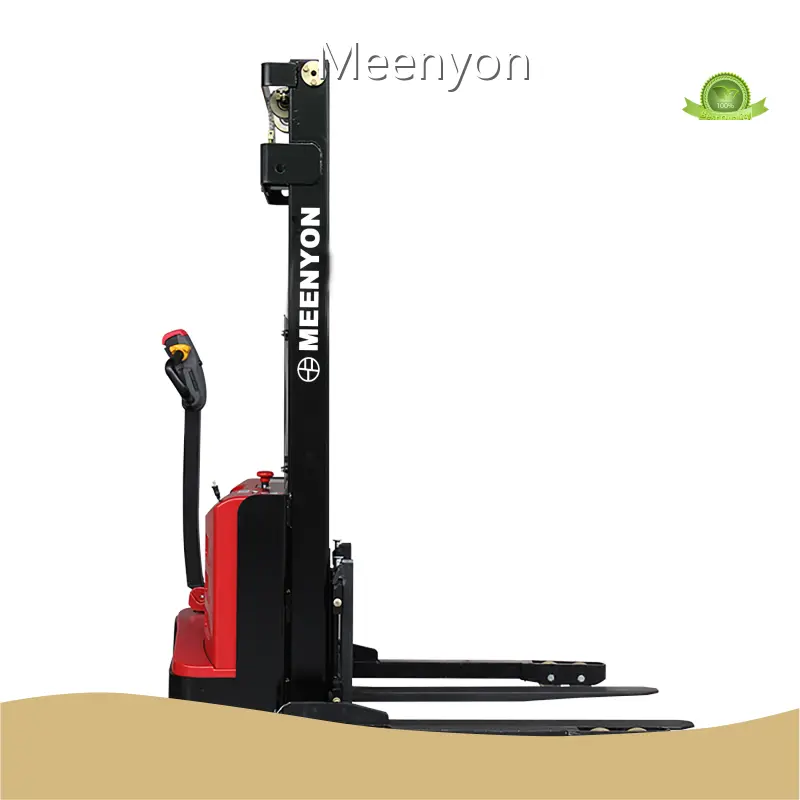

Product specifications
| Item | Name | Unit (Code) | ||
| Feature | ||||
| 1.1 | Brand | MEENYON | MEENYON | |
| 1.2 | Model | ES10-22DM | ES12-25DM | |
| 1.3 | Power | Electric | Electric | |
| 1.4 | Operation | Walking | Walking | |
| 1.5 | Rated load | Q (kg) | 1000 | 1200 |
| 1.6 | Load center distance | c (mm) | 600 | 600 |
| Weight | ||||
| 2.1 | Dead weight (incl. battery) | kg | 676 | 676 |
| Size | ||||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2086 | 2086 |
| 4.4 | Gantry travel | h3 (mm) | 2980 | 2980 |
| 4.4... | Gantry lifting height (fork face to ground) | h23 (mm) | 2920 | 2920 |
| 4.15 | Fork drop height | h13(mm) | 60 | 60 |
| 4.19 | Overall length | l1 (mm) | 1650 | 1650 |
| 4.21 | Overall width | b1/ b2 (mm) | 1135/1235/1335/1435 | 1135/1235/1335/1435 |
| 4.25 | Fork outside distance | b5 (mm) | 200~780 | 200~780 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2255 | 2255 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2180 | 2180 |
| 4.35 | Turning radius | Wa (mm) | 1404 | 1404 |
| Performance parameter | ||||
| 5.1 | Walk speed, full /no load | km/ h | 4 / 4.5 | 4 / 4.5 |
| 5.2 | Lifting speed, full /no load | m/ s | 0.12/0.22 | 0.12/0.22 |
| Motor, Power unit | ||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 2*12V/105Ah | 2*12V/105Ah |
Company Advantages
· electric walkie stacker is the crystallization of industrial technology.
· Features of electric walkie stacker has brought brand favorability to Meenyon and its business.
· Meenyon greatly values every detail during process of outer packing.
Company Features
· Meenyon is one of the few professional electric walkie stacker manufacturers with an independent R&D ability in China.
· Modern technology has been constantly introduced into the production of electric walkie stacker.
· Thinking locally has become our business operation principle. We encourage employees to think locally with regard to customs, language, personalities of different countries. We believe thinking locally can shape our success.
Application of the Product
Our electric walkie stacker has a wide range of applications.
While providing excellent products, Meenyon is dedicated to providing personalized solutions for customers according to their needs and actual situations.
