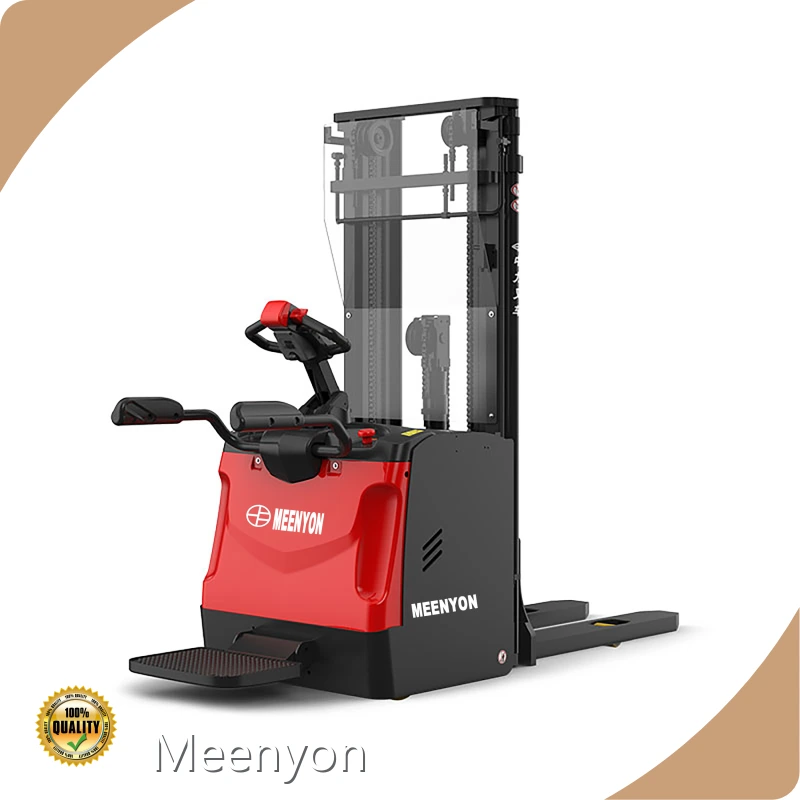

Product specifications
Item | Name | Unit (Code) | |
Feature | |||
1.1 | Brand | MEENYON | |
1.2 | Model | RSB161 | |
1.3 | Power | Electric | |
1.4 | Operation | Walking | |
1.5 | Rated load | Q (kg) | 1600 |
1.6 | Load center distance | c (mm) | 600 |
Weight | |||
2.1 | Dead weight (incl. battery) | kg | —— |
Size | |||
4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1970 |
4.4 | Gantry travel | h3 (mm) | 3000 |
4.4... | Gantry lifting height (fork face to ground) | h23 (mm) | 2915 |
4.15 | Fork drop height | h13(mm) | 85 |
4.19 | Overall length | l1 (mm) | 2070 |
4.21 | Overall width | b1/ b2 (mm) | 850 |
4.25 | Fork outside distance | b5 (mm) | 570 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2970 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2120 |
4.35 | Turning radius | Wa (mm) | 2120 |
Performance parameter | |||
5.1 | Travel speed, full / no load | km/ h | 5.5/6.0 |
5.2 | Max climb, full / no load | m/ s | 0.13/0.16 |
Motor, Power unit | |||
6.4 | Battery voltage/nominal capacity | V/ Ah | 24/230 |
Company Advantages
· electric forklift factory from MEENYON is a thing of beauty both to look and and to use.
· The product caters to the market need in durability and performance.
· Meenyon will greatly value every suggestion from customers and make accordingly measures to improve.
Company Features
· Meenyon embraces strong competence in electric forklift factory development and manufacture. Our capacity in this industry is market recognized.
· With strong technical support, we are ready to build a solid foundation in the future.
· We know how important it is to do it right the first time. We will work with customers to provide the best solutions, best service, and best quality. Ask!
Application of the Product
Our electric forklift factory can be used in multiple areas of multiple industries.
Meenyon has been engaged in the production of for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
