Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ES15-15ES | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 755 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2128 |
| 4.4 | Standard max lifting height | h3 (mm) | 3227 |
| 4.15 | Fork drop height | h13(mm) | 88 |
| 4.19 | Overall length | l1 (mm) | 1740 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2340 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2260 |
| 4.35 | Turning radius | Wa (mm) | 1500 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | |
| 5.2 | Max climb, full / no load | m/ s | 0.13/0.2 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 2*12V/125Ah |
Key Highlights

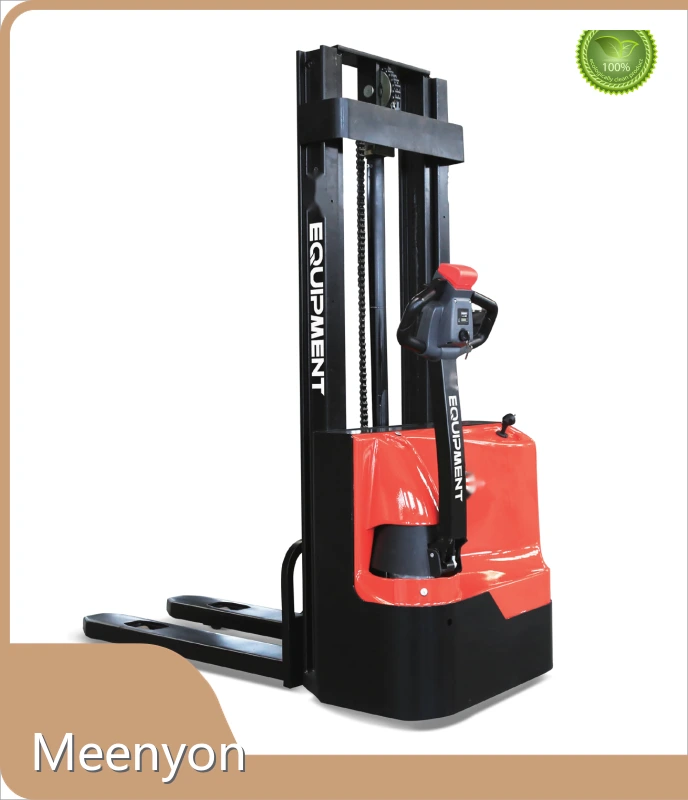

About The ES15-15ES
◆ The Electric Stacker ES 15-15ES is the perfect choice if you are looking for a compact, but powerful electric pallet stacker.
◆ Due to its AC engine and the 125Ah AGM batteries, this truck is much smaller then common 1.5ton electric stackers, making it an ideal choice for navigating in tight spaces or narrow aisles.
Application
◆ Medium to Heavy Duty: Despite the compact size, the AC system offers a strong performance of this stacker. It is ideal for heavy-duty tasks in warehouse environments.
◆ Vertical Storage: With a lifting height of up to 3600mm this pallet stacker is perfect for vertical storage and stacking.
◆ Narrow Aisles: Due to its small size, this compact stacker is ideal for tight spaces and narrow aisles.
PRODUCT DISPLAY
Company Advantages
· The production of Meenyon walkie stacker for sale adopts cutting-edge technology in compliance with the market standards.
· In order to meet customer expectations and industry standards, products must undergo rigorous quality inspection before leaving the factory.
· Meenyon cooperates with many powerful companies.
Company Features
· Meenyon has made great contributions to the development of China's walkie stacker for sale business.
· Our customers has new confidence on our technology research and development center.
· We’re transforming our business to reduce CO2 emissions, end deforestation, reduce production loss and waste, and move toward offering more sustainable products.
Application of the Product
Meenyon's walkie stacker for sale is widely applicable in the industry.
Meenyon always adheres to the service concept to meet customers' needs. We are committed to providing customers with one-stop solutions that are timely, efficient and economical.
