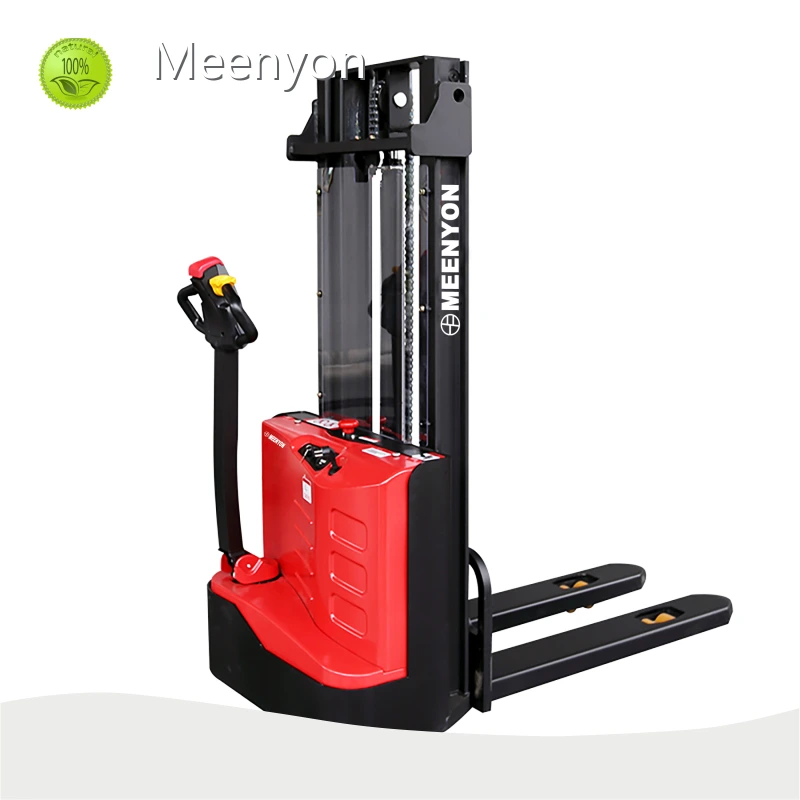

Factory Price 1.5 Ton Electric Forklift Dealer
Product details of the 1.5 ton electric forklift
Quick Detail
Meenyon 1.5 ton electric forklift is produced as per the industry specifications. We closely monitor and control the quality in every stage to extend the lifespan of the product. The 1.5 ton electric forklift produced by Meenyon is very popular in the market and is widely used in industry. With professional technical support, 1.5 ton electric forklift can be workable for very long time.
Product Information
Choose our 1.5 ton electric forklift for the following reasons.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ES13-15ES | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 736 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1978 |
| 4.4 | Standard max lifting height | h3 (mm) | 2930 |
| 4.15 | Fork drop height | h13(mm) | 90 |
| 4.19 | Overall length | l1 (mm) | 1720 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2317 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2246 |
| 4.35 | Turning radius | Wa (mm) | 1485 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 4.0 / 4.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.12/0.22 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 2x12/105 |
Company Advantages
Located in Meenyon is a company that runs the main business of Our company provides excellent service for all customers in the principle of 'customer first'. Welcome everyone to come for consultation.
