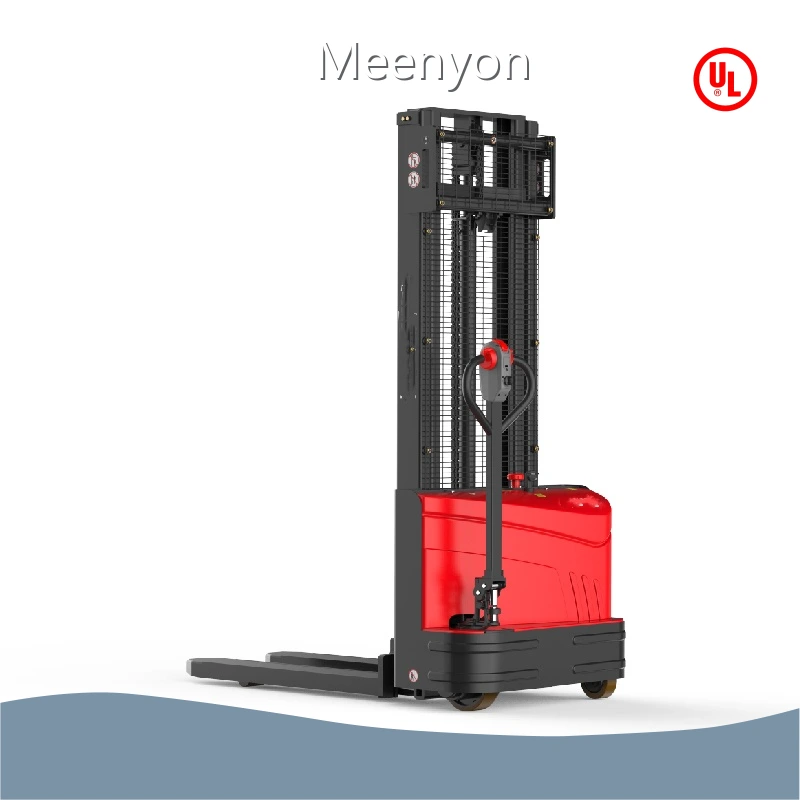

Product details of the full electric pallet stacker
Product Overview
Entire range of this product offered by us is hugely demanded owing to these features. As our company operates with a strict QC system, this product has a stable performance. Our full electric pallet stacker meets the needs of multiple industries and fields. Our offered product is well-liked by our customers in the market.
Product Information
Our full electric pallet stacker has the following advantages over peer products.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | DS2 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 500 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 485 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1822 |
| 4.4 | Gantry travel | h3 (mm) | 2513 |
| 4.4... | Gantry lifting height (fork face to ground) | h23 (mm) | 2430 |
| 4.15 | Fork drop height | h13(mm) | 90 |
| 4.19 | Overall length | l1 (mm) | 1710 |
| 4.21 | Overall width | b1/ b2 (mm) | 890 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2280 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2210 |
| 4.35 | Turning radius | Wa (mm) | 1445 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 3.7/4.0 |
| 5.2 | Max climb, full / no load | m/ s | 0.085/0.135 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 2X12/80 |
Company Advantages
Meenyon has been providing high-quality full electric pallet stacker over the years. We mainly concentrate on the innovation of our products. Business management talents are the most important resource for our company. They have a wealth of expertise and practical experience in business operation and business investment, which lays a solid foundation for our growth. We are working hard to reduce our carbon footprint by developing a science-based target to define a fair emission reduction target. For example, we utilize electricity more efficiently during our production process.
We have been providing high quality full electric pallet stacker for a long time. We look forward to working with you.
