Meenyon offers professional OEM & ODM services for all kinds of electric forklift, electric pallet truck, electric stacker and diesel forklift.

Fully Electric Pallet Stacker Factory 1
Fully Electric Pallet Stacker Factory 1

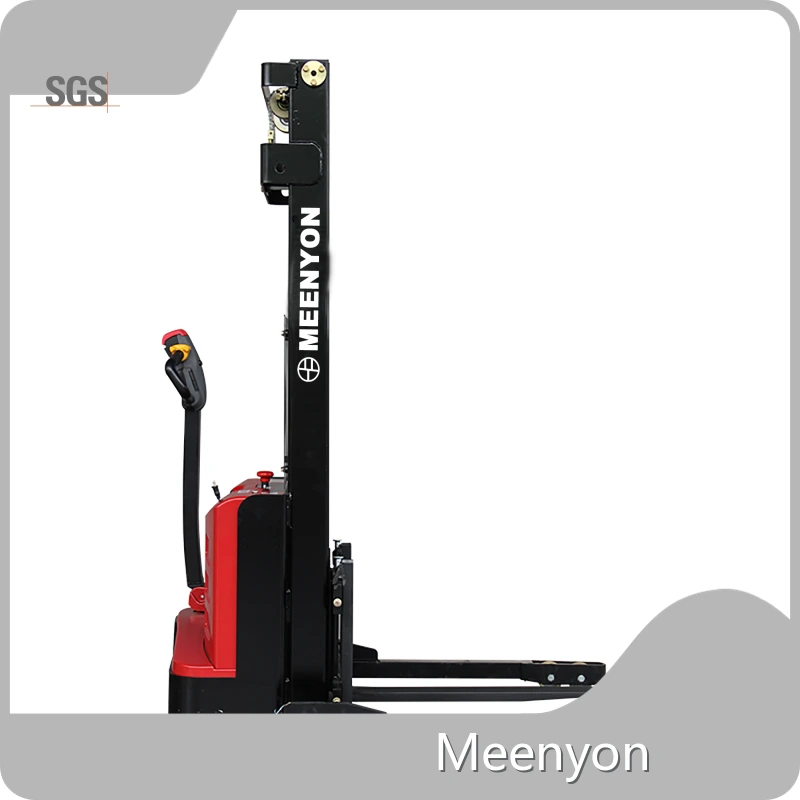

Fully Electric Pallet Stacker Factory

Inquiry
Send your inquiry

Product details of the fully electric pallet stacker


Product Information

From material to design of fully electric pallet stacker, there are professional team to make them best. Consistent quality and functions are the characteristics of this product. Meenyon's annual export growth rate has maintained a steady upward trend.

Product specifications

Item Name Unit (Code)
Feature
1.1 Brand   MEENYON MEENYON
1.2 Model   ES10-22DM ES12-25DM
1.3 Power   Electric Electric
1.4 Operation   Walking Walking
1.5 Rated load Q (kg) 1000 1200
1.6 Load center distance c (mm) 600 600
Weight
2.1 Dead weight (incl. battery) kg 676 676
Size
4.2 Lowest height after the gantry is lowered h1 (mm) 2086 2086
4.4 Gantry travel h3 (mm) 2980 2980
4.4... Gantry lifting height (fork face to ground) h23 (mm) 2920 2920
4.15 Fork drop height h13(mm) 60 60
4.19 Overall length l1 (mm) 1650 1650
4.21 Overall width b1/ b2 (mm) 1135/1235/1335/1435 1135/1235/1335/1435
4.25 Fork outside distance b5 (mm) 200~780 200~780
4.34.1 Pallet 1000 × 1200 cross path width Ast (mm) 2255 2255
4.34.2 Pallet 800 × 1200 cross path width Ast (mm) 2180 2180
4.35 Turning radius Wa (mm) 1404 1404
Performance parameter
5.1 Walk speed, full /no load km/ h 4 / 4.5 4 / 4.5
5.2 Lifting speed, full /no load m/ s 0.12/0.22 0.12/0.22
 Motor, Power unit
6.4 Battery voltage/nominal capacity V/ Ah 2*12V/105Ah 2*12V/105Ah


Company Advantage

• Meenyon's products are mainly exported to Europe and the United States. They are highly praised by local businesses and users.
• With traffic convenience, Meenyon's location has multiple traffic lines passing through. This is good for the outward transportation of br /> • Meenyon has a professional service team to provide quality and efficient services for customers.
Do you want efficient solution to meet your project requirements? Contact Meenyon and you will get satisfactory solutions.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
