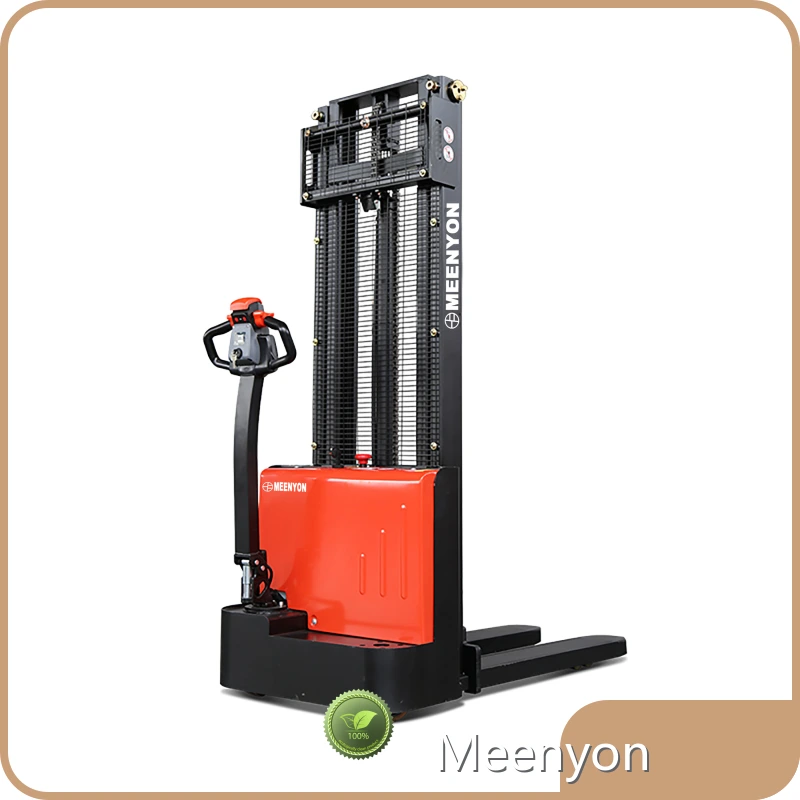

Product details of the pedestrian pallet stacker
Product Introduction
Meenyon pedestrian pallet stacker is manufactured from quality materials by our well-trained professionals. The product has an extremely long service life through high-intensity detection. The new facility of Meenyon includes a world class test and development facility.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | EST122 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1200 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 585 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1856 |
| 4.4 | Standard max lifting height | h3 (mm) | 2430 |
| 4.15 | Fork drop height | h13(mm) | 85 |
| 4.19 | Overall length | l1 (mm) | 1713 |
| 4.21 | Overall width | b1/ b2 (mm) | 782 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2290 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2225 |
| 4.35 | Turning radius | Wa (mm) | 1458 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 4.2 / 4.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.10/0.14 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24/80 |
Company Feature
• Our company attaches great importance to the introduction and cultivation of talents. Therefore, we create a high-level talent team with great education background and professional skills.
• Meenyon has an international sales channel. are mainly sold to some countries and regions in Europe, America, and Australia.
• Built in Meenyon has a history of years and a wealth of industry experience.
The stock of varies according to types. If you would like to order, please consult Meenyon for stock information, in case any inconvenience caused by shortage.
