Meenyon offers professional OEM & ODM services for all kinds of electric forklift, electric pallet truck, electric stacker and diesel forklift.

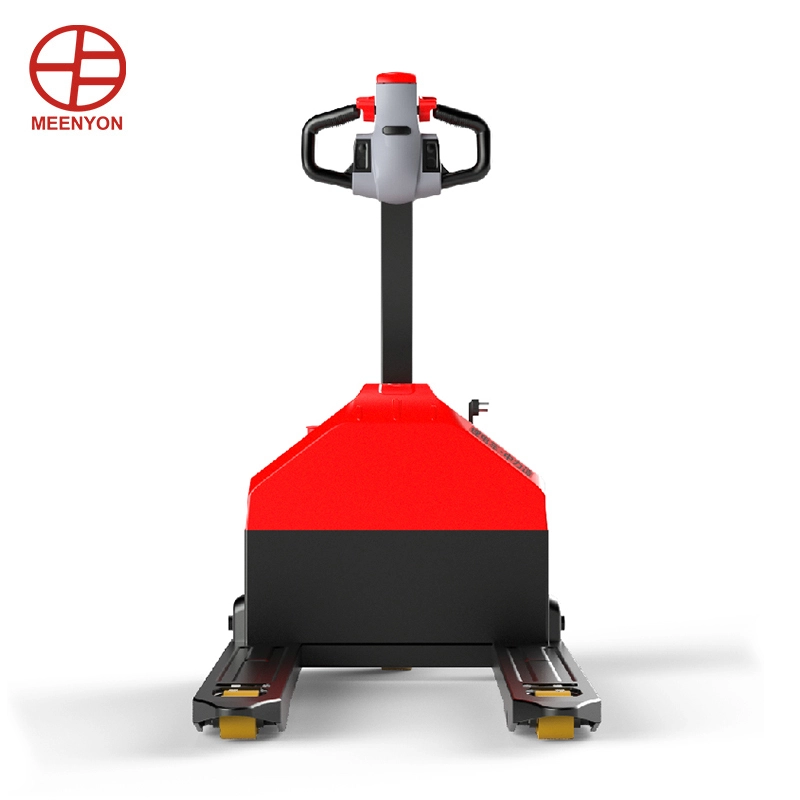

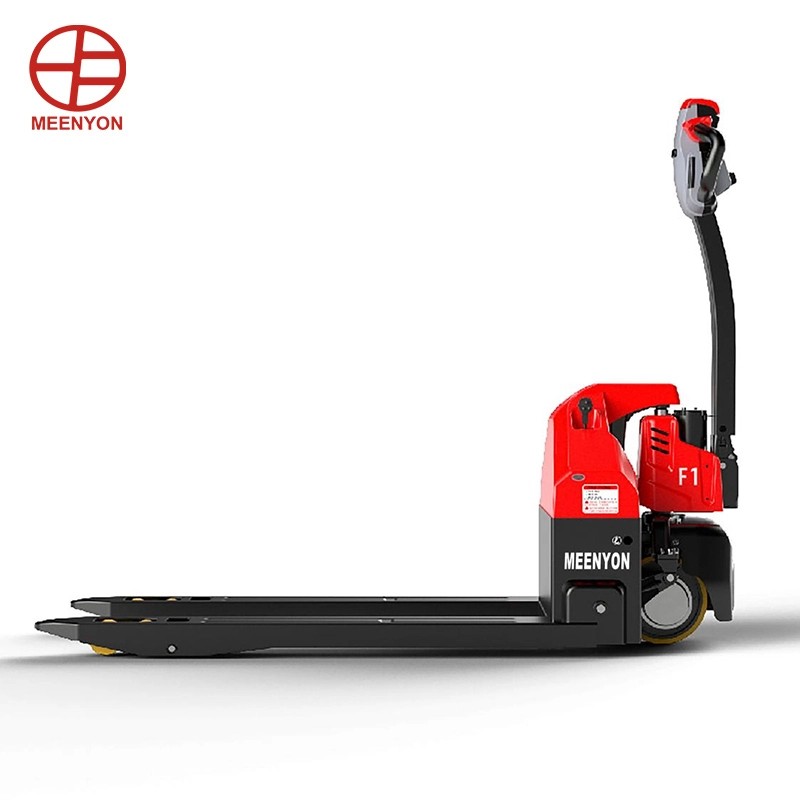

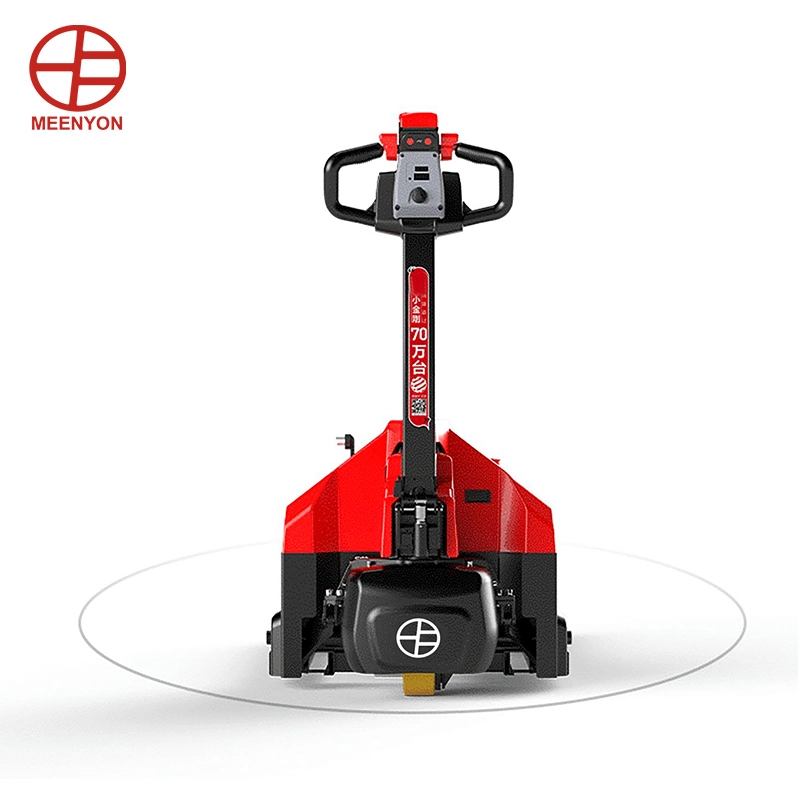

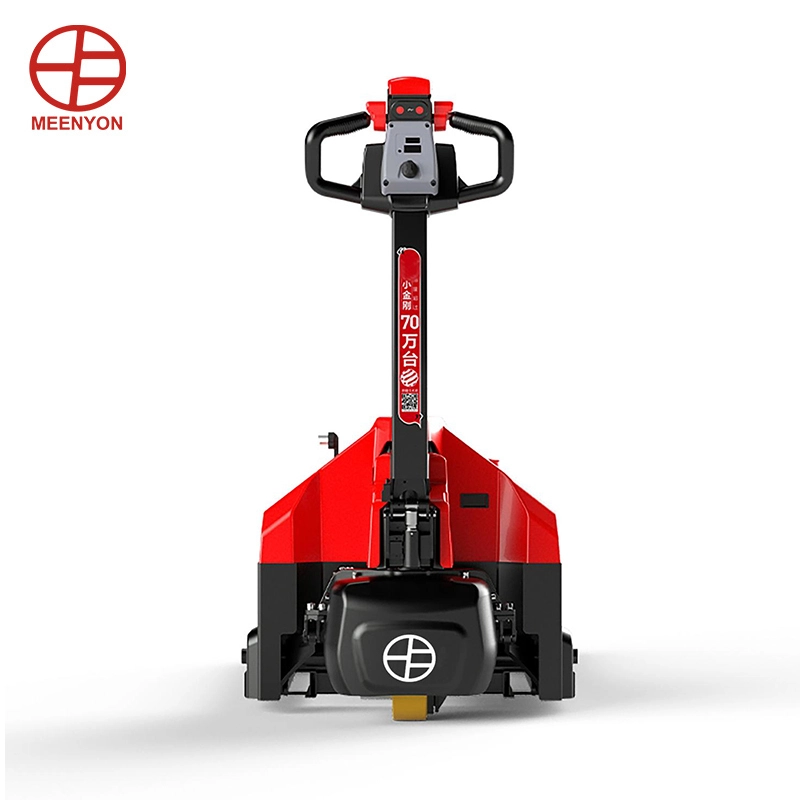

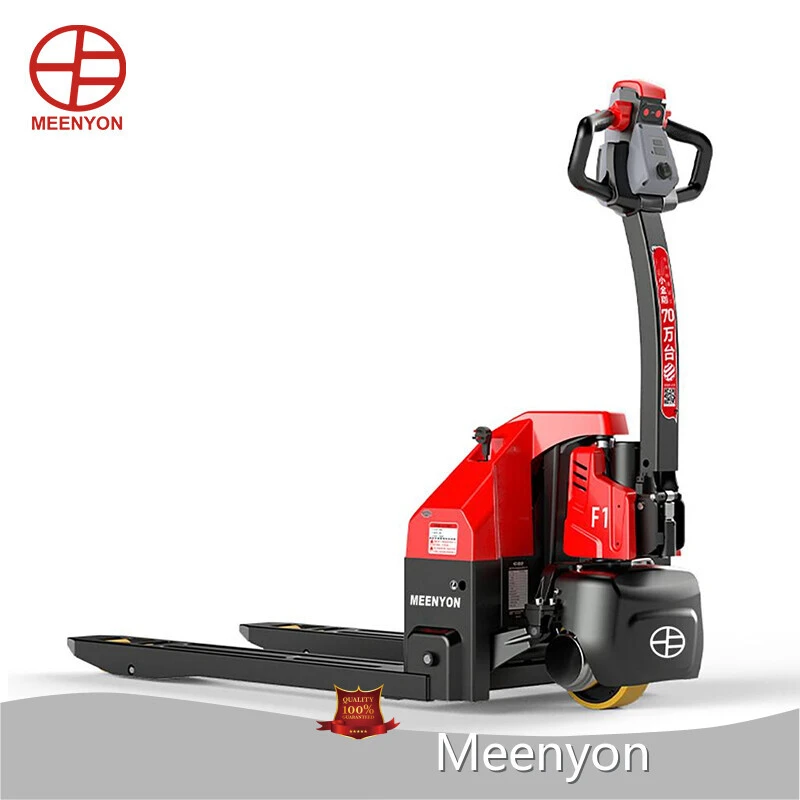

High-qualityMeenyon Double Electric Pallet Jack 1
High-qualityMeenyon Double Electric Pallet Jack 2
High-qualityMeenyon Double Electric Pallet Jack 3
High-qualityMeenyon Double Electric Pallet Jack 4
High-qualityMeenyon Double Electric Pallet Jack 5
High-qualityMeenyon Double Electric Pallet Jack 6
High-qualityMeenyon Double Electric Pallet Jack 1
High-qualityMeenyon Double Electric Pallet Jack 2
High-qualityMeenyon Double Electric Pallet Jack 3
High-qualityMeenyon Double Electric Pallet Jack 4
High-qualityMeenyon Double Electric Pallet Jack 5
High-qualityMeenyon Double Electric Pallet Jack 6

High-qualityMeenyon Double Electric Pallet Jack

Inquiry

Product details of the double electric pallet jack


Product Overview

Meenyon double electric pallet jack is elaborately designed to deliver better user experience. All aspects of the product, such as performance, durability, usability, etc., are carefully tested and tested before production and delivery. The double electric pallet jack produced by Meenyon is very popular in the market and is widely used in industry. At the same time, Meenyon can also design and manufacture double electric pallet jack products that meet customer requirements.


Product Description

Compared with similar products, Meenyon's double electric pallet jack has the following advantages.

INHERITING CRAFTSMANSHIP AND PAYING TRIBUTE TO CLASSICS

Classic styling.

Inherit the classic series of Little King Kong

Delay advantage

Inheriting the characteristics of Little Diamond

Ultra light self weight, with a load capacity of 1500KG, and a small body with high energy

Ultra small radius with a radius of 1440MM, making it easy to operate in narrow channels

Classic set

After 10 years of market inspection, the parts and components of the extended generation of Xiaojingang are more reliable and stable

Pro12-xj1
Pro12-xj1
Pro12-xj2
Pro12-xj2

Adapting to the trend, timeless classics

Developing through inheritance, F1 follows the trend, responds to policies, and meets usage needs

◆  High capacity lithium battery

1. Standard 40AH large capacity lithium battery: fully utilize the advantages of flexible charging of lithium batteries, intermittently recharge, and use the vehicle at any time to meet the needs of a day's work

2. Standard 10A large charger: better utilize the advantages of fast charging, not afraid of busy working conditions

Pro12-xj3

BREAKING THROUGH INNOVATION AND FEARLESSLY MOVING FORWARD

Pro12-xj4

◆  Innovate in development and make "breaking the trend" more intense

Original chassis design - The F series adopts the new and original chassis design concept of Zhongli, which separates the front and rear frames, integrates the power of the rear frame, and produces personalized front frames to meet the diverse transportation needs of users.

Pro12-xj5

Power integration, performance upgrade

Highly integrated powertrain system into the rear frame through innovative design.

Adopting the new manufacturing concept of production and inspection to control product quality throughout the entire process.

Joystick

controller

hydraulic system

New load-bearing bridge

Drive unit

Reasonable layout and improved lifespan

◆  Improve the cooling effect of the controller, improve quality, and reduce maintenance costs.

Better stability and durability of the vehicle.

Separate front and back

to satisfy personality

◆  Can meet customers' personalized customization needs such as appearance and color.

◆ Can provide industry customized services based on customer conditions.

Innovative handle, human-machine optimization

◆  Innovative handle design in the industry, optimizing human-computer interaction experience

◆  Double knobs left and right for smoother operation

◆  Mechanical rebound structure, more labor-saving operation

◆  Integrated design for easier maintenance

Pro12-xj6 (2)

COMPANY STRENGTH

Item Name Unit (code)

Feature









1.1 Brand   MEENYON MEENYON
1.2 Model   F1 (Lithium battery) F1 (Lead-acid battery)
1.3 Power   Electric Electric
1.4 Operation   Walking Walking
1.5 Rated load Q (kg) 1500 1500
1.6 Load center distance c (mm) 600 600

Weight









2.1 Dead weight (incl. battery) kg 125 142

Tires, chassis









3.2 Front wheel size (diameter × width)   210x70 210x70

Size









4.4. Standard max lifting height h3 (mm) 105 105
4.15 Fork drop height h13(mm) 82 82
4.19 Overall length l1 (mm) 1618 1618
4.21 Overall width b1/ b2 (mm) 685/620 685/620
4.25 Fork outside distance b5 (mm) 685/560 685/560
4.34.1 Pallet 1000 × 1200 cross path width Ast (mm) 2203 2203
4.34.2 Pallet 800 × 1200 cross path width Ast (mm) 2256 2256
4.35 Turning radius Wa (mm) 1440 1440

Performance parameter









5.1 Walk speed, full/no load km/ h 4/4.5 4/4.5
5.8 Max climb, full/no load % 5 / 16 5 / 16

Motor, Power unit









6.4 Battery voltage/nominal capacity V/ Ah 24V/40Ah 24V/65Ah


Company Introduction

Meenyon is a company in Our company is mainly engaged in the research and production of Meenyon holds the enterprise spirit of 'integrity, pragmatism, breakthrough, and tenacity'. During the development, we focus on sincere service and maintain a pragmatic way. We also seek breakthrough and proactively assume social responsibility. All difficulties are overcame based on tenacity. Our company has a first-class product safety management team and product development team. Moreover, our more stable position in the market provides a solid guarantee for the industrial upgrading of products. Meenyon is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
With years of experience in production, we guarantee our product quality so you can purchase them with confidence. Feel free to contact us!

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
