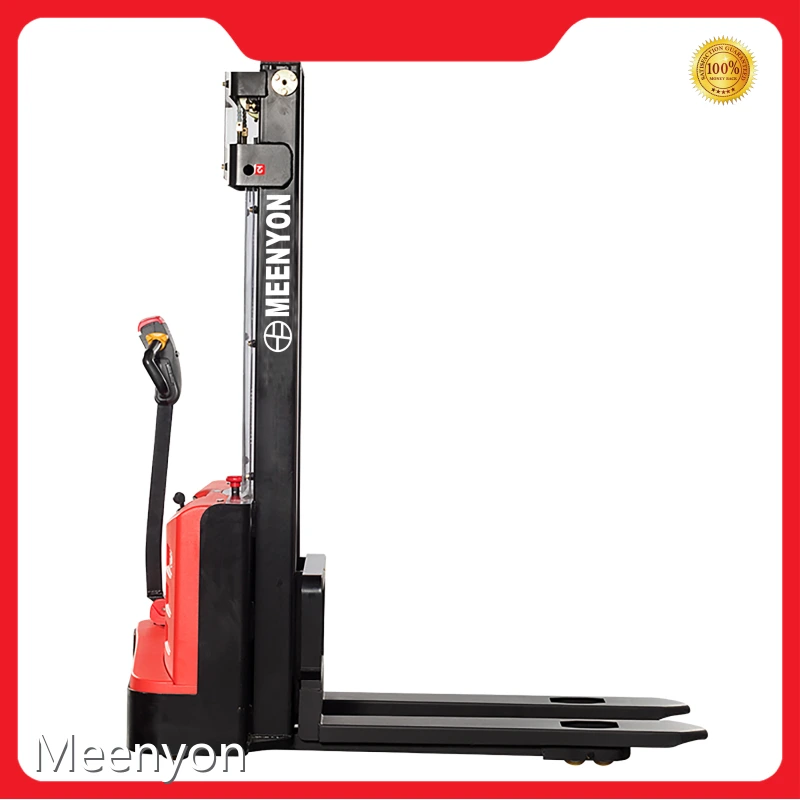

Product details of the electric pallet jack stacker
Product Information
Meenyon electric pallet jack stacker is manufactured using the finest quality raw materials which are procured from the most trustworthy and certified vendors in the industry. Its functional defects have been eliminated. It meets the ever-changing needs in the market.
Product specifications
Item | Name | Unit (Code) | ||
Feature | ||||
1.1 | Brand | MEENYON | MEENYON | |
1.2 | Model | ES12-12ES | ES10-10ES | |
1.3 | Power | Electric | Electric | |
1.4 | Operation | Walking | Walking | |
1.5 | Rated load | Q (kg) | 1200 | 1200 |
1.6 | Load center distance | c (mm) | 600 | 600 |
Weight | ||||
2.1 | Dead weight (incl. battery) | kg | 661 | 540 |
Size | ||||
4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2056 | 2026 |
4.4 | Standard max lifting height | h3 (mm) | 3015 | 3015 |
4.15 | Fork drop height | h13(mm) | 88 | 88 |
4.19 | Overall length | l1 (mm) | 1740 | 1740 |
4.21 | Overall width | b1/ b2 (mm) | 800 | 800 |
4.25 | Fork outside distance | b5 (mm) | 570 | 570 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2225 | 2225 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2150 | 2150 |
4.35 | Turning radius | Wa (mm) | 1408 | 1408 |
Performance parameter | ||||
5.1 | Walk speed, full /no load | km/ h | 4 / 4.5 | 4 / 4.5 |
5.2 | Lifting speed, full /no load | m/ s | 0.12/0.22 | 0.12/0.22 |
Motor, Power unit | ||||
6.4 | Battery voltage/nominal capacity | V/ Ah | 2*12V/105Ah | 2*12V/105Ah |
Company Feature
• We have established a professional operation team with consumer demand as the core, and conducted unbounded transmission on the Internet. All this promotes our products to expand channels in the domestic and foreign markets, and continuously provides quality products for the vast consumer market.
• Our company provides comprehensive, high-level professional services such as consulting and technology in accordance with the actual needs of users.
• Meenyon's location enjoys a beautiful environment with traffic convenience, which is good for the outward transportation of br /> • Established in Meenyon becomes the leading enterprise in the industry after years of practice and exploration.
Meenyon's are safe and practical with high cost performance. If you are interested in the products, you can contact us for consultation or call our hotline directly. We will serve you wholeheartedly.
