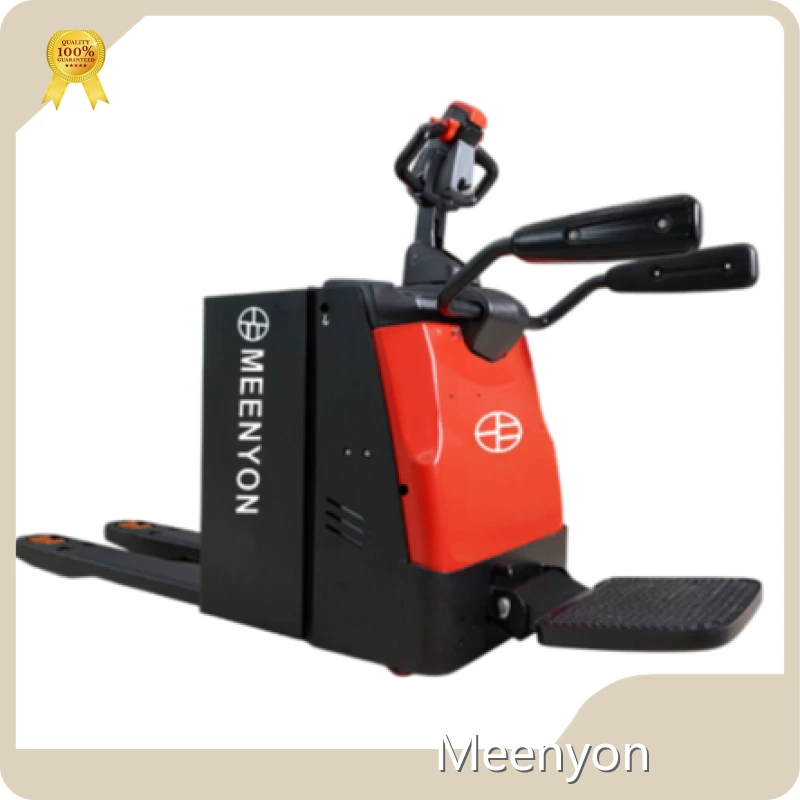

Hot Selling Full Electric Pallet Jack 1
Hot Selling Full Electric Pallet Jack 1

Hot Selling Full Electric Pallet Jack

Inquiry

Product details of the full electric pallet jack


Product Overview

The features of full electric pallet jack make it simple and easy to handle. The product is of top quality and has reliable performance at competitive prices. The full electric pallet jack produced by Meenyon can be used in many fields. Meenyon enjoys good reputation at home and abroad.


Product Introduction

The overall quality of full electric pallet jack has been greatly improved through the optimization of the following details.

Product specifications

Item Name Unit (code)
Feature
1.1 Brand   MEENYON MEENYON MEENYON MEENYON
1.2 Model   RPL201H RPL251 RPL201 RPL301
1.3 Power   Electric Electric Electric Electric
1.4 Operation   Standing Standing Standing Standing
1.5 Rated load Q (kg) 2000 2500 2000 3000
1.6 Load center distance c (mm) 600 600 600 600
Weight
2.1 Dead weight (incl. battery) kg 670 790 670 790
Tires, chassis
3.2 Front wheel size (diameter × width)   Ф230x75 Ф230x75 Ф230x75 Ф230x75
Size
4.4. Standard max lifting height h3 (mm) 120 120 120 120
4.15 Fork drop height h13(mm) 85 85 85 85
4.19 Overall length l1 (mm) 1954(2024) 1954 1954(2024) 1954
4.21 Overall width b1/ b2 (mm) 734 734 734 734
4.25 Fork outside distance b5 (mm) 540/685 560 / 685 540/685 560 / 685
4.34.1 Pallet 1000 × 1200 cross path width Ast (mm) 2606 2590 2606 2590
4.34.2 Pallet 800 × 1200 cross path width Ast (mm) 2463 2447 2463 2447
4.35 Turning radius Wa (mm) 1806/1826 1790 1806/1826 1790
Performance parameter
5.1 Walk speed, full/no load km/ h 9 / 12 5.5 / 6 7.5 / 8 5.5 / 6
5.8 Max climb, full/no load % 8 / 16 6 / 16 8 / 16 6 / 16
6.4 Battery voltage/nominal capacity V/ Ah Li 24V/150Ah Li 24V / 150Ah Li 24V/150Ah Li 24V / 150Ah

About UsaAbout The RPL Series

The RPL series is the latest version of the ride-on pallet truck from MEENYON.

They are fully designed around the concept of integrated Li-Ion battery technology and offers quick, opportunity charging and electric power steering are standard.

The RPL 201 can be equipped with a high-speed option for even higher productivity.

The new released RPL 251 and 301 are able to realize heavy-duty applications and satisfy different working conditions.

undefined

advantage

Hot Selling Full Electric Pallet Jack 3
Lithium-ion technology
The RPL series is equipped with 24V/210Ah Li-ion battery that supports opportunity charging. Operators can charge the truck at preferable time during the day without disrupting working schedules.
Hot Selling Full Electric Pallet Jack 4
Robust safety arms
The safety arms of the RPL series are produced from strengthened steel to ensure a long lifetime of the trucks structure.
Hot Selling Full Electric Pallet Jack 5
More precise working mechanism
Using slider motion structure and one-time full-axis processing technology to ensure higher working accuracy.
Hot Selling Full Electric Pallet Jack 6
COMPANY STRENGTH
Our in-house designers and engineers have produced countless great designs for customers from different industries
Hot Selling Full Electric Pallet Jack 7
Strengthened loading wheel assembly
RPL251 and RPL301 come with strengthened frames and updated links of the loading wheels to improve wear resistance and meet heavy duty applications.
