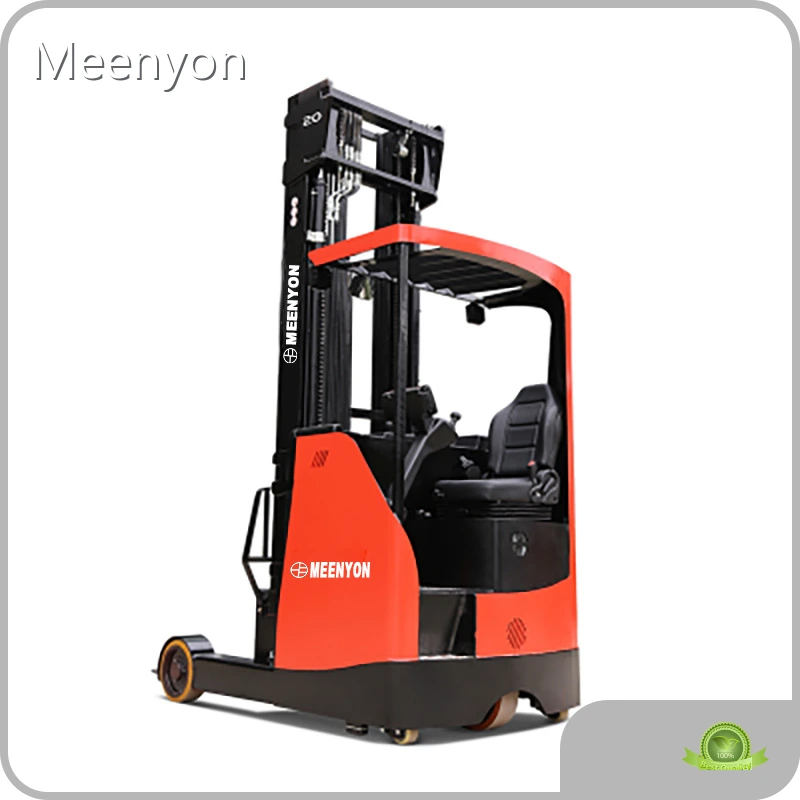

Product details of the industrial reach truck
Product Overview
The raw material of Meenyon industrial reach truck undergoes a rigorous selection procedure. The product is internationally certified and has a longer life than other products. Our industrial reach truck can be used in a variety of industries to play a certain role. Meenyon thinks long-term development is important, so high quality is necessary.
Product Description
More detailed information about industrial reach truck is provided for you as follows.
Product selling points
Wide field of vision
◆ Optimized appearance structure, reduced field of vision obstruction, more flexible operation
◆ Instrument steering integrated design, increased operating space, vehicle instrument information is clear at a glance.
Comfortable operation
◆ The control panel fully considers ergonomics, making operation more comfortable.
◆ Based on ergonomics, the cockpit is integrated to greatly improve the operating comfort.
Stable and reliable
◆ The center of gravity of the vehicle is lowered to improve the high-position load-bearing capacity.
◆ The gantry is optimized to increase the high-position load-bearing capacity and is suitable for more working conditions.
◆ The solenoid valve is equipped with a height display (three-level gantry) as standard, and the height positioning makes high-position pickup more accurate.
◆ The width of the vehicle is 1270mm, and the maximum stacking height can reach 12 meters.
◆ It is equipped with 500Ah battery and 65A charger as standard.
◆ It is equipped with built-in side shift as standard, which makes picking up goods more flexible.
COMPANY STRENGTH
| Item | Name | Unit (Code) | ||
| Feature | ||||
| 1.1 | Brand | MEENYON | MEENYON | |
| 1.2 | Model | CQD20RV(F)2 | CQD16RV(F)2 | |
| 1.3 | Power | Electric | Electric | |
| 1.4 | Operation | Car type | Car type | |
| 1.5 | Rated load | Q (kg) | 2000 | 1600 |
| 1.6 | Load center distance | c (mm) | 600 | 600 |
| Weight | ||||
| 2.1 | Dead weight (incl. battery) | kg | 3750② | 3741② |
| Size | ||||
| 4.2 | The lowest height after the gantry is lowered | h1 (mm) | 3219③ | 3219③ |
| 4.4 | Standard max lifting height | h3 (mm) | 7500③ | 7500③ |
| 4.5 | The height of the gantry at its highest lift | h4 (mm) | 8565③ | 8565③ |
| 4.7 | Top guard (cab) height | h6 (mm) | 2213 | 2213 |
| 4.19 | Overall length | l1 (mm) | 2515① | 2515① |
| 4.21 | Overall width | b1/ b2 (mm) | 1260/1270① | 1260/1270① |
| 4.22 | Fork size | s/ e/ l (mm) | 40/120/1070 | 40/100/1070 |
| 4.24 | Stop shelf outside width | b3 (mm) | 990 | 990 |
| 4.25 | Fork outside distance | b5 (mm) | 240/770 | 240/770 |
| 4.26 | Distance between wheel arms | b4 (mm) | 915 | 915 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2889① | 2873① |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2952① | 2951① |
| 4.35 | Turning radius | Wa (mm) | 1770① | 1700① |
| 4.37 | Vehicle length (without fork) | l7(mm) | 1948① | 1878① |
| Performance parameter | ||||
| 5.1 | Travel speed, full / no load | km/ h | 9/9.5 | 10/11 |
| 5.2 | Lifting speed, full/no load | m/ s | 0.35/0.45 | 0.35/0.5 |
| 5.3 | Descending speed ,full/no load | m/ s | 0.41/0.38 | 0.41/0.38 |
| 5.8 | Max climb, full / no load | % | 10/15 | 10/15 |
| Motor, Power unit | ||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 48/500④ | 48/500④ |
Company Advantages
Meenyon has a technical R&D team and has been dedicated to the research and development of industrial reach truck. Produced in accordance with a full set of quality control system, industrial reach truck meets the international quality standard. Innovation is essential, as we search out new ways and continuously identify opportunities to design, develop and advance creative, ethical solutions that are timely and effective.
Our products are of excellent quality and favorable price, winning a wide recognition. If you want to know more about the products, please contact us!
