Meenyon offers professional OEM & ODM services for all kinds of electric forklift, electric pallet truck, electric stacker and diesel forklift.

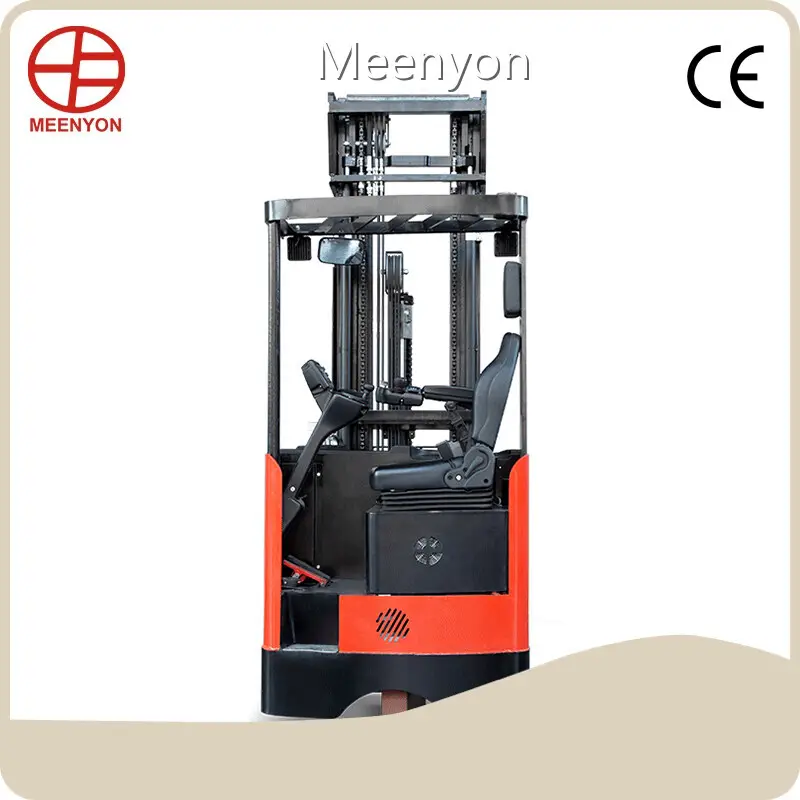

Latest Reach Truck for Sale Factory Meenyon 1
Latest Reach Truck for Sale Factory Meenyon 2
Latest Reach Truck for Sale Factory Meenyon 3
Latest Reach Truck for Sale Factory Meenyon 4
Latest Reach Truck for Sale Factory Meenyon 5
Latest Reach Truck for Sale Factory Meenyon 1
Latest Reach Truck for Sale Factory Meenyon 2
Latest Reach Truck for Sale Factory Meenyon 3
Latest Reach Truck for Sale Factory Meenyon 4
Latest Reach Truck for Sale Factory Meenyon 5

Latest Reach Truck for Sale Factory Meenyon

Inquiry

Product details of the reach truck for sale


Product Description

Meenyon reach truck for sale is precisely manufactured using premium materials and leading-edge techniques. Certified quality: It has passed through many quality certifications and has been manufactured in strict accordance with the requirements of international quality standards. Its quality is completely guaranteed. Apart from the above characteristics, the product also has the feature of wide application.

Broaden your horizons & Driving comfort

Utilize the high energy density advantage of lithium batteries to reduce vehicle height and increase driving visibility

Optimize gantry and Plumbing, greatly improve stacking vision

Based on ergonomics, an integrated design has been made for the cockpit, greatly improving operational comfort

Suspended seat design reduces vibration and makes driving more comfortable

21 (3)
22 (3)

Flexible and convenient

◆ 1090mm body width, 2.8m channel width, and flexible operation in narrow channels, also helping to optimize storage space


◆  Integrated operating system, making operations more efficient and simple


◆  Flexible operation within a channel width of 2800mm

23 (3)

Standard AC drive motor

AC lifting motor, electronic steering, and the motor comes with damping, providing more direct operational feedback

24 (3)

Ø Standard color instrument

Visible battery level, visible tire position, visible fault codes, and visible speed

Accurate stacking

◆  8m stacking height to meet the requirements of medium to high level stacking operations

◆  Standard electromagnetic proportional control, more precise, lighter, and easy to handle various working conditions

◆  Optional side shift accessories for more precise high position alignment

25 (4)
26

Safe and efficient

◆  Lithium integrated design, efficient charging and discharging, reducing charging time


◆  Standard 280Ah lithium battery, 150A charger, lifting speed of 550mm/s, driving speed of 9.3km/h, high-power lifting unit, high-speed gantry lifting, more efficient high-level stacking


◆  Standard OPS for more secure operation


◆  Reduce the center of gravity of the entire vehicle, increase the high-altitude load, and increase the stability of high-altitude stacking.

27 (2)

COMPANY STRENGTH

Item

Name

Unit (Code)



Feature

1.1

Brand



MEENYON

1.2

Model



CQD16L

1.3

Power



Electric

1.4

Operation



Ride and Drive

1.5

Rated load

Q (kg)

1600

1.6

Load center distance

c (mm)

600

Weight

2.1

Dead weight (incl. battery)

kg

2840

Size

4.2

Lowest height of the gantry after lowering

h1 (mm)

2780

4.4

Maximum lifting height of standard gantry

h3(mm)

6500

4.5

The height of the gantry at the highest lifting point

h4(mm)

7535

4.7

Roof protection (cockpit) height

h6(mm)

2153

4.19

Overall length

l1 (mm)

2434

4.21

Overall width

b1/ b2 (mm)

1080/1090

4.22

Fork size

s/ e/ l (mm)

40/100/1070

4.24

Outer width of the shelf

b3 (mm)

872

4.25

Fork outside distance

b5 (mm)

200-655

4.26

Distance between wheel arms

b4 (mm)

750

4.34.1

Pallet 1000 × 1200 cross path width

Ast (mm)

2789

4.34.2

Pallet 800 × 1200 cross path width

Ast (mm)

2840

4.35

Turning radius

Wa (mm)

1720

4.37

Vehicle length (excluding forks)

l7(mm)

1870

Performance parameter

5.1

Walk speed, full /no load

km/ h

9/9.3

5.2

Lifting speed, full/no load

m/s

0.35/0.55

5.3

Descending speed, full /no load

m/ s

0.55/0.5

5.8

Maximum climbing slope, full/no load

%

8/10

Motor, Power unit

6.4

Battery voltage/nominal capacity

V/ Ah

48/280


Company Advantage

• Meenyon has a professional team dedicated to product research and development. This ensures the continuous improvement of product quality.
• Customers' needs are the foundation for Meenyon to achieve long-term development. In order to better serve customers and further meet their needs, we run a comprehensive after-sales service system to solve their problems. We sincerely and patiently provide services including information consultation, technical training, and product maintenance and so on.
• Our company is located in a beautiful place with outstanding people. And, there is a well-developed transportation network. It is conducive to the purchase and shipment of goods.
• Founded in Meenyon has a history of years. We have accumulated rich industry experience relying on the wisdom and skills of all members.
Dear customer, if you are interested in Meenyon's products and would like to know more about the products or services, please leave your contact information. We will contact you as soon as possible.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
