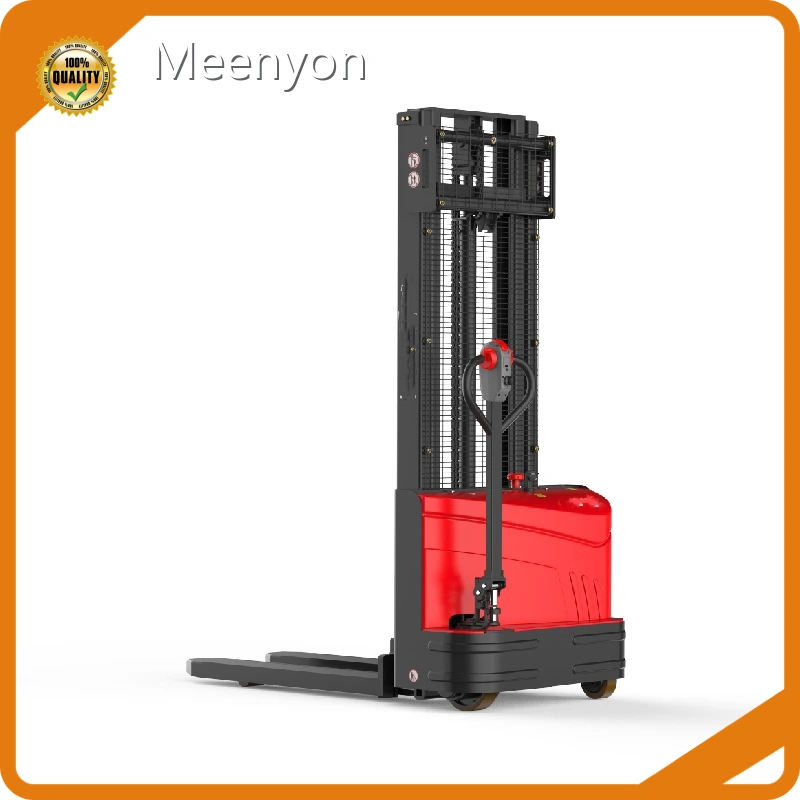

Product details of the battery operated stacker
Product Introduction
Meenyon battery operated stacker is produced by our trained professionals using high-grade raw material according to industry norms. The product is superior in quality and remarkable in performance and durability. Meenyon has trained, experienced, and dedicated specialists serving its customers.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | DS2 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 500 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 485 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1822 |
| 4.4 | Gantry travel | h3 (mm) | 2513 |
| 4.4... | Gantry lifting height (fork face to ground) | h23 (mm) | 2430 |
| 4.15 | Fork drop height | h13(mm) | 90 |
| 4.19 | Overall length | l1 (mm) | 1710 |
| 4.21 | Overall width | b1/ b2 (mm) | 890 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2280 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2210 |
| 4.35 | Turning radius | Wa (mm) | 1445 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 3.7/4.0 |
| 5.2 | Max climb, full / no load | m/ s | 0.085/0.135 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 2X12/80 |
Company Feature
• Our company has good natural conditions and a developed transportation network, laying a good foundation for the development.
• Meenyon was built in Having explored and innovated for years, we are an excellent enterprise with leading technology in the industry.
• Meenyon has professional personnel to provide consumers with intimate and quality services, so as to solve their problems.
• Our company has further optimized the export environment and the export volume of products has increased greatly. We mainly export our products to some countries and regions in Southeast Asia, South America and Africa.
• We have a large number of outstanding professional talents and an elite team who dare to work hard, and make contributions to the development of the enterprise with the spirit of dedication, exquisite technology and rigorous and meticulous quality.
Meenyon sincerely invites customers from all walks of life to cooperate with us.
