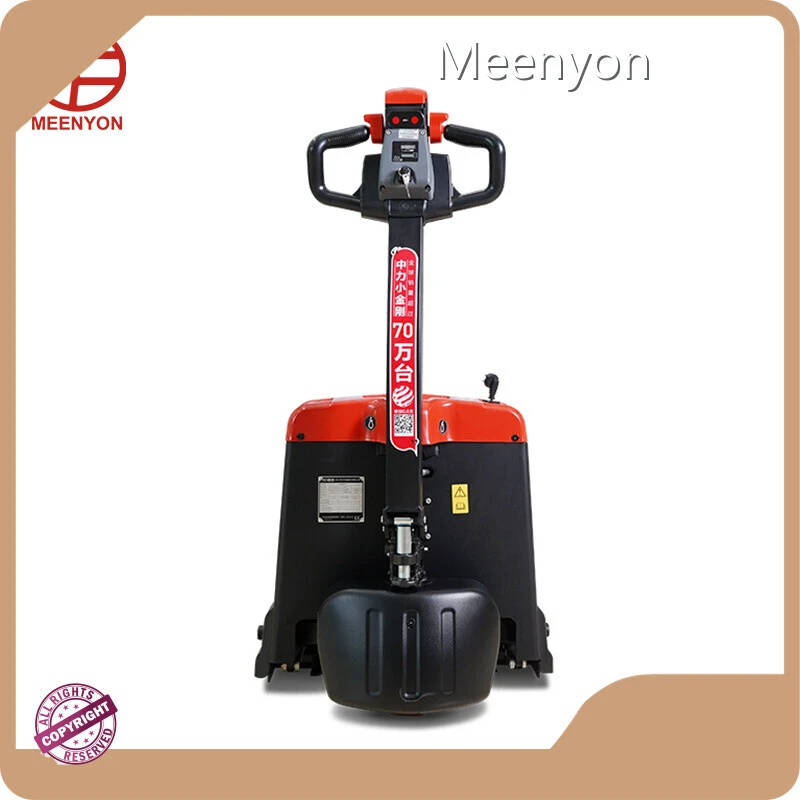

Product details of the electric pallet jack rider


Product Description

Meenyon electric pallet jack rider adopts imported raw materials to ensure the smooth production process. The product is reliable in quality because it is produced and tested according to the requirements of widely recognized quality standards. Meenyon uses solid cartons to pack electric pallet jack rider so as to make sure they are safe enough.

SMALL AND FLEXIBLE

Exquisite and compact body structure allows for flexible operation in narrow spaces.

 Turning radius is only 1340MM.

Pro17-xj1
Pro17-xj9

STRONG POWER

◆ Driven by 48V900W, with a load of 2T and a climbing speed of 6%. The compact model also has a powerful power supply.

Pro17-xj3
Pro17-xj4

Superior performance

High performance accessories.

Standard upright walking. Flexible and comfortable handling, while saving steering space.


Standard power meter, fault indication, etc. Intuitive and clear display, convenient and worry free homework.


Equipped with a full surround drive cover. Under the premise of ensuring safety, greatly improve the passability and meet the usage needs of more complex working conditions.

Pro17-xj5
Pro17-xj5
Pro17-xj6
Pro17-xj6
Pro17-xj7
Pro17-xj7

Solid body

 The sturdy body design makes the vehicle's stress more reasonable and durable.


Pro17-xj8

COMPANY STRENGTH

Item Name Unit (code)
Feature
1.1 Brand   MEENYON
1.2 Model   EPA205Z
1.3 Power   Electric
1.4 Operation   Walking
1.5 Rated load Q (kg) 2000
1.6 Load center distance c (mm) 600
Weight
2.1 Dead weight (incl. battery) kg 195
Tires, chassis
3.2 Front wheel size (diameter × width)   Ф210x70
Size
4.4. Standard max lifting height h3 (mm) 110
4.15 Fork drop height h13(mm) 80
4.19 Overall length l1 (mm) 1550
4.21 Overall width b1/ b2 (mm) 620(695)
4.25 Fork outside distance b5 (mm) 560(685)
4.34.1 Pallet 1000 × 1200 cross path width Ast (mm) 2155
4.34.2 Pallet 800 × 1200 cross path width Ast (mm) 2060
4.35 Turning radius Wa (mm) 1340
Performance parameter
5.1 Walk speed, full/no load km/ h 4.5/5
5.8 Max climb, full/no load % 6 /16
Motor, Power unit
6.4 Battery voltage/nominal capacity V/ Ah 12*4/26
