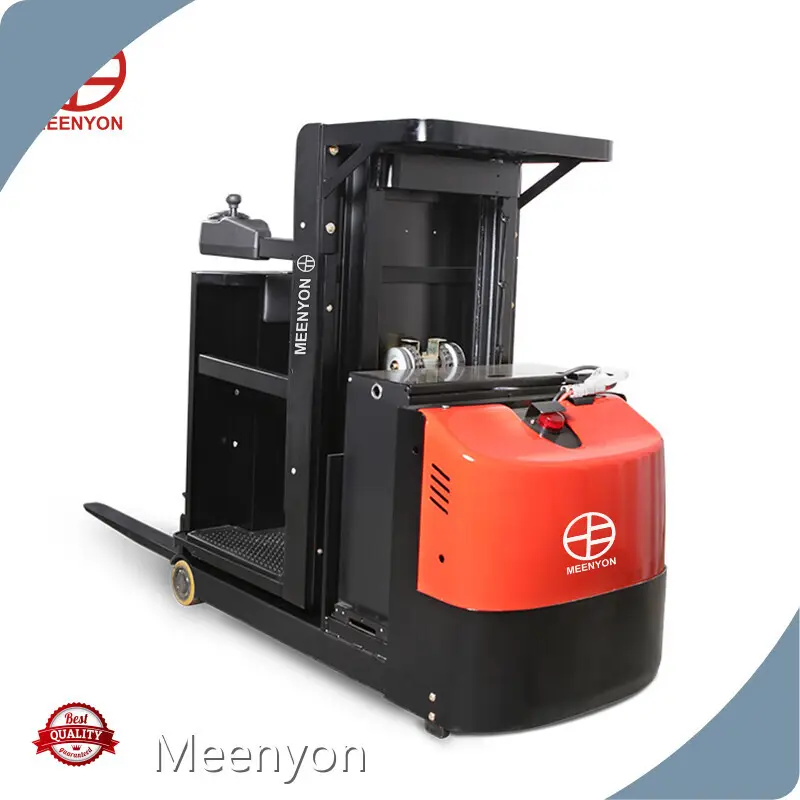

Meenyon Brand Order Picker Forklift Price Factory 1
Meenyon Brand Order Picker Forklift Price Factory 2
Meenyon Brand Order Picker Forklift Price Factory 3
Meenyon Brand Order Picker Forklift Price Factory 4
Meenyon Brand Order Picker Forklift Price Factory 5
Meenyon Brand Order Picker Forklift Price Factory 1
Meenyon Brand Order Picker Forklift Price Factory 2
Meenyon Brand Order Picker Forklift Price Factory 3
Meenyon Brand Order Picker Forklift Price Factory 4
Meenyon Brand Order Picker Forklift Price Factory 5

Meenyon Brand Order Picker Forklift Price Factory

Inquiry
Send your inquiry

Product details of the order picker forklift price


Product Introduction

Meenyon order picker forklift price is outstanding for its unique design. Customers can trust the quality and safety of this product. Meenyon does its greatest effort to produce order picker forklift price with high quality.

Introduction

Pro3-xj1
Pro3-xj1
Pro3-xj2
Pro3-xj2
Pro3-xj3
Pro3-xj3
Pro3-xj4
Pro3-xj4
Pro3-xj5
Pro3-xj5
Pro3-xj6
Pro3-xj6
Meenyon Brand Order Picker Forklift Price Factory 12
High performance, high reliability
◆ AC drive system, providing strong power; More precise control and smoother operation; ◆ High strength vertical gearbox with ultra long working life; ◆ Low noise and low fault hydraulic station, with multi-layer detection and testing of oil cylinders and pipelines, ensures high reliability of the hydraulic system; ◆ Reliable quality American AMP waterproof connectors and electrical components, with reliable protection and fixation for all wires and cables, greatly reducing electrical failures; ◆ H-shaped gantry channel steel with high bending resistance enhances the overall gantry strength ◆ Super rigid body, ensuring structural flexibility; ◆ Double gantry design for convenient material retrieval: forks can be lifted separately to achieve greater capacity for stacking.
Meenyon Brand Order Picker Forklift Price Factory 13
More secure
◆ The explosion-proof design of the hydraulic system ensures that even if the oil pipe bursts, the gantry will not quickly descend, improving safety: ◆ Foot operated safety switch to prevent misoperation during walking ◆ Release the travel switch to achieve automatic braking and reverse current braking for safer driving ◆ Emergency power off switch, which can easily cut off all power sources in case of loss of control during operation, to avoid emergency accidents ◆ The anti slip braking function prevents the car from slipping when driving on a large control or slope; ◆ Equipped with a special height sensing control system, it gradually slows down at preset intervals: the driver can hardly feel the change; ◆ Dual monitoring electronic steering, safe and reliable (electric steering) ◆ Speed control function for turning corners for safer driving (electric steering)
Meenyon Brand Order Picker Forklift Price Factory 14
Easy to operate
◆ Integrated protection integrated control method, fully considering ergonomics; ◆ Setting a backrest in the driving position for more comfortable driving; ◆ The spacious driving and riding space and wide shelf view effect significantly improve driving comfort ◆ The 20MM thick shock absorbing foot pad and flush mounted foot switch allow the driver to maintain a natural standing posture whether driving or forking; ◆ Side pull battery box design, easy to replace batteries, convenient for continuous operation; ◆ Electronic steering for lighter handling (electric steering).
Meenyon Brand Order Picker Forklift Price Factory 15
Fecal protection
◆ AC motor, maintenance free; ◆ Equipped with a timer and an electricity meter, it is convenient to remind the operator to charge in a timely manner and protect the battery; ◆ The disassembly and assembly of the machine body is convenient, and only by unscrewing two screws to remove the lower cover, the main key components can be inspected, repaired, and replaced ◆ The use of vertical motors makes detection and maintenance of electric heaters, brakes, etc. directly and conveniently, and the maintenance performance is greatly better than that of horizontal motors: ◆ The controller self diagnosis system displays fault codes through a handheld unit, making it more convenient to solve faults; ◆ Low voltage automatic protection, extending battery life.

COMPANY STRENGTH

Item

Name

Unit (Code)



Feature


1.1 Brand   MEENYON
1.2 Model   JX2-1
1.3 Power   Electric
1.4 Operation   Picking type
1.5 Rated load Q (kg) 700/136
1.6 Load center distance c (mm) 600

Weight


2.1 Dead weight (incl. battery) kg 1620

Tires, chassis


3.1 Tire type, drive wheel/carrier wheel (steering wheel)   Polyurethane/rubber
3.2 Front wheel size (diameter × width)   Φ150×90

Size


4.2 The lowest height after the gantry is lowered h1 (mm) 1510
4.3 free lift height h2 (mm) 737
4.4 Standard max lifting height h3 (mm) 1063
4.5 The height of the gantry at its highest lift h4 (mm) 2560
4.7 Top guard (cab) height h6 (mm) 1560
4.8 Seat and platform height h7 (mm) 220
4.14 Platform lifting height h12(mm) 1220
4.15 Fork drop height h13(mm) 63
4.19 Overall length l1 (mm) 2520
4.20. Length to vertical face of fork l2 (mm) 1605
4.21 Overall width b1/ b2 (mm) 800
4.22 Fork size s/ e/ l (mm) 35/100/915
4.25 Fork outside distance b5 (mm) 560
4.34.1 Pallet 1000 × 1200 cross path width Ast (mm) 2950
4.34.2 Pallet 800 × 1200 cross path width Ast (mm) 3070
4.35 Turning radius Wa (mm) 1470

Performance parameter


5.1 Travel speed, full / no load km/ h 8/8
5.2 Lifting speed, full/no load m/ s 0.13/0.16
5.3 Descending speed ,full/no load m/ s 0.16/0.18
5.8 Max climb, full/no load % 0
5.10. Service brake type   electromagnetism

 Motor, Power unit


6.1 Rated power of drive motor S2 60minutes kW 2.5
6.2 Rated power of lifting motor S3 15% kW 3
6.4 Battery voltage/nominal capacity V/ Ah 24V/360Ah

Drive/lift mechanism


8.1 Drive control type   AC

other parameters


10.5 Steering type   Electronic
10.7 Noise level dB (A) 74
