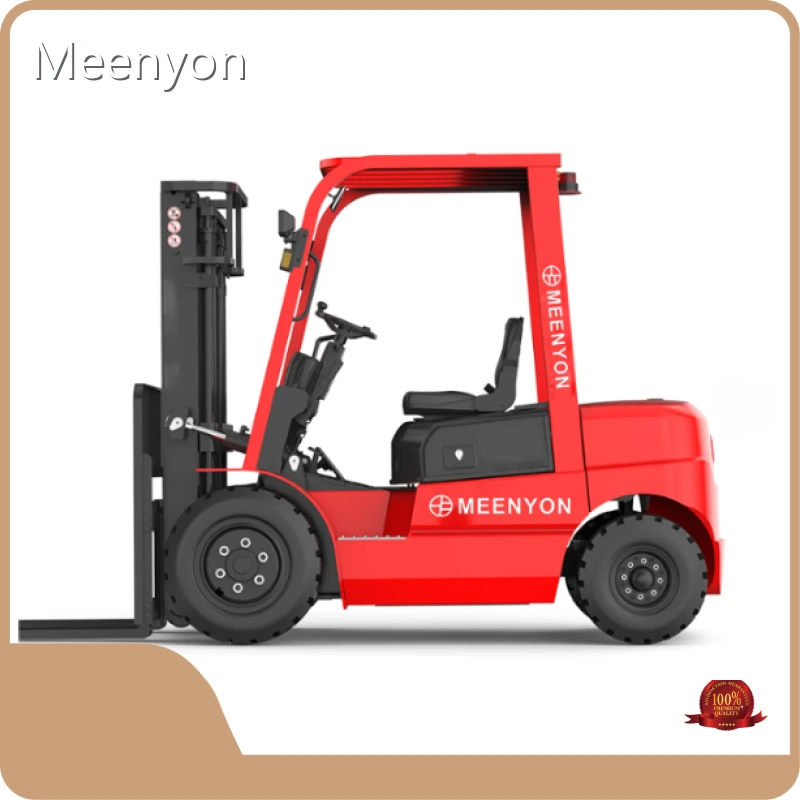

Product details of the electric forklift
Quick Overview
Meenyon electric forklift is known for combining aesthetic functionality and innovation. This product is widely known for its high quality and reliability. Meenyon's electric forklift can be used in multiple industries. The product is overwhelmingly appreciated by our customers in the industry.
Product Introduction
Compared with products in the industry, Meenyon's electric forklift has the outstanding advantages which are mainly reflected in the following aspects.
Product specifications
Item | Name | Unit (Code) | ||||
Feature | ||||||
1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
1.2 | Model | ICE302B2 | ICE252B2 | ICE352B2 | ICE322B2 | |
1.3 | Power | Electric | Electric | Electric | Electric | |
1.4 | Operation | Car type | Car type | Car type | Car type | |
1.5 | Rated load | Q (kg) | 3000 | 2500 | 3500 | 3200 |
1.6 | Load center distance | c (mm) | 500 | 500 | 500 | 500 |
Weight | ||||||
2.1 | Dead weight (incl. battery) | kg | 4080 | 3770 | 4560 | 4270 |
Tires, chassis | ||||||
3.1 | Tire type, drive wheel/carrier wheel (steering wheel) | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire | |
Size | ||||||
4.4 | Max lifting height of standard frame | h3 (mm) | 3000 | 3000 | 3000 | 3000 |
4.7 | Top guard (cab) height | h6 (mm) | 2160 | 2160 | 2190 | 2160 |
4.20. | Length to vertical face of fork | l2 (mm) | 2665 | 2503 | 2726 | 2726 |
4.21 | Overall width | b1/ b2 (mm) | 1230 | 1154 | 1230 | 1230 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 4118 | 3985 | 4170 | 4170 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 4318 | 4195 | 4370 | 4370 |
4.35 | Turning radius | Wa (mm) | 2437 | 2290 | 2484 | 2484 |
Performance parameter | ||||||
5.1 | Travel speed, full / no load | km/ h | 11 / 12 | 11 / 12 | 11 / 12 | 11 / 12 |
5.8 | Max climb, full / no load | % | 15/15 | 15/15 | 15/15 | 15/15 |
Motor, Power unit | ||||||
6.4 | Battery voltage/nominal capacity | V/ Ah | 80/205 | 80/150 | 80/280 | 80/205 |
advantage
product display
Company Introduction
Meenyon is the largest electric forklift leader in China. Meenyon is equipped with state-of-the-art facilities and has professional management. Meenyon aims to be a major electric forklift exporter in the home and overseas. Inquire now!
