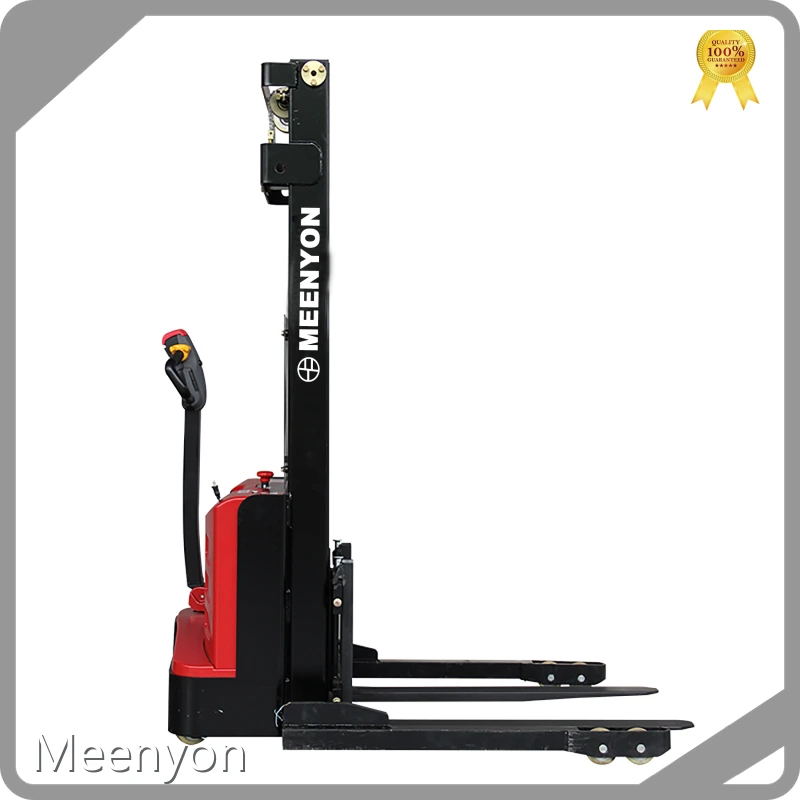

Meenyon Electric Hydraulic Stacker Electric Hydraulic StackerWholesale
Product details of the electric hydraulic stacker
Quick Overview
The production errors of Meenyon electric hydraulic stacker are greatly reduced. The product promises high quality and long service life. Meenyon is a technically advanced company which supplies electric hydraulic stacker with high quality.
Product Introduction
Meenyon strives excellent quality by attaching great importance to details in the production of electric hydraulic stacker.
Product specifications
| Item | Name | Unit (Code) | ||
| Feature | ||||
| 1.1 | Brand | MEENYON | MEENYON | |
| 1.2 | Model | ES10-22DM | ES12-25DM | |
| 1.3 | Power | Electric | Electric | |
| 1.4 | Operation | Walking | Walking | |
| 1.5 | Rated load | Q (kg) | 1000 | 1200 |
| 1.6 | Load center distance | c (mm) | 600 | 600 |
| Weight | ||||
| 2.1 | Dead weight (incl. battery) | kg | 676 | 676 |
| Size | ||||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2086 | 2086 |
| 4.4 | Gantry travel | h3 (mm) | 2980 | 2980 |
| 4.4... | Gantry lifting height (fork face to ground) | h23 (mm) | 2920 | 2920 |
| 4.15 | Fork drop height | h13(mm) | 60 | 60 |
| 4.19 | Overall length | l1 (mm) | 1650 | 1650 |
| 4.21 | Overall width | b1/ b2 (mm) | 1135/1235/1335/1435 | 1135/1235/1335/1435 |
| 4.25 | Fork outside distance | b5 (mm) | 200~780 | 200~780 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2255 | 2255 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2180 | 2180 |
| 4.35 | Turning radius | Wa (mm) | 1404 | 1404 |
| Performance parameter | ||||
| 5.1 | Walk speed, full /no load | km/ h | 4 / 4.5 | 4 / 4.5 |
| 5.2 | Lifting speed, full /no load | m/ s | 0.12/0.22 | 0.12/0.22 |
| Motor, Power unit | ||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 2*12V/105Ah | 2*12V/105Ah |
Company Information
In the past years, Meenyon focuses attention on the manufacture of electric hydraulic stacker. We have been recognized as one of the most powerful manufacturers based in China. We have established a professional sales team. Through the development and performance of all sales activities, they are able to allow us to remain viable and profitable. Meenyon has always followed the rules of customer first. Get info!
Consulting and order from friends of all walks of life are welcomed!
