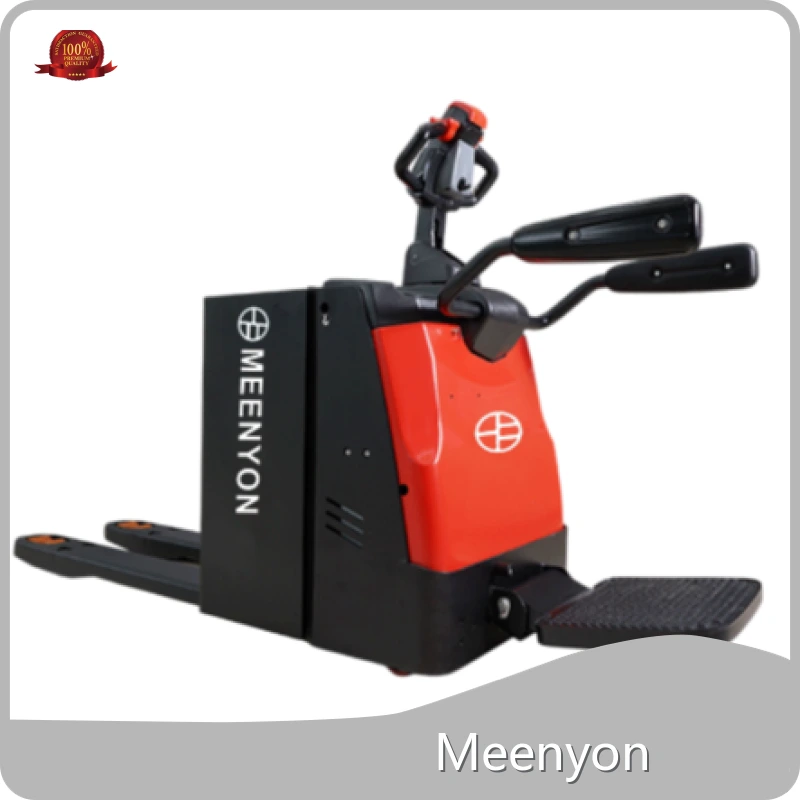

Product details of the electric pallet rider
Product Description
Some of Meenyon electric pallet rider has come up to advanced and world-class production standards. The popularity of this product comes from its reliable performance and good durability. Meenyon has a full set of service system to ensure satisfaction of our customers.
Product specifications
| Item | Name | Unit (code) | ||||
| Feature | ||||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | RPL201H | RPL251 | RPL201 | RPL301 | |
| 1.3 | Power | Electric | Electric | Electric | Electric | |
| 1.4 | Operation | Standing | Standing | Standing | Standing | |
| 1.5 | Rated load | Q (kg) | 2000 | 2500 | 2000 | 3000 |
| 1.6 | Load center distance | c (mm) | 600 | 600 | 600 | 600 |
| Weight | ||||||
| 2.1 | Dead weight (incl. battery) | kg | 670 | 790 | 670 | 790 |
| Tires, chassis | ||||||
| 3.2 | Front wheel size (diameter × width) | Ф230x75 | Ф230x75 | Ф230x75 | Ф230x75 | |
| Size | ||||||
| 4.4. | Standard max lifting height | h3 (mm) | 120 | 120 | 120 | 120 |
| 4.15 | Fork drop height | h13(mm) | 85 | 85 | 85 | 85 |
| 4.19 | Overall length | l1 (mm) | 1954（2024） | 1954 | 1954（2024） | 1954 |
| 4.21 | Overall width | b1/ b2 (mm) | 734 | 734 | 734 | 734 |
| 4.25 | Fork outside distance | b5 (mm) | 540/685 | 560 / 685 | 540/685 | 560 / 685 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2606 | 2590 | 2606 | 2590 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2463 | 2447 | 2463 | 2447 |
| 4.35 | Turning radius | Wa (mm) | 1806/1826 | 1790 | 1806/1826 | 1790 |
| Performance parameter | ||||||
| 5.1 | Walk speed, full/no load | km/ h | 9 / 12 | 5.5 / 6 | 7.5 / 8 | 5.5 / 6 |
| 5.8 | Max climb, full/no load | % | 8 / 16 | 6 / 16 | 8 / 16 | 6 / 16 |
| 6.4 | Battery voltage/nominal capacity | V/ Ah | Li 24V/150Ah | Li 24V / 150Ah | Li 24V/150Ah | Li 24V / 150Ah |
About UsaAbout The RPL Series
The RPL series is the latest version of the ride-on pallet truck from MEENYON.
They are fully designed around the concept of integrated Li-Ion battery technology and offers quick, opportunity charging and electric power steering are standard.
The RPL 201 can be equipped with a high-speed option for even higher productivity.
The new released RPL 251 and 301 are able to realize heavy-duty applications and satisfy different working conditions.
advantage
Company Feature
• Our company's location has a sound traffic network with open roads. And all that provides convenient condition for vehicle trips and it is propitious for the distribution of goods.
• Meenyon has established sales outlets throughout the country. The products are also exported to overseas regions.
• To meet the huge demands of customers, our company has formed a sound service system to provide consumers with quality products and services.
• Meenyon has been dedicated to the business of for years. Now we are the leader in the industry.
Stable in performance and excellent in quality, Meenyon's are produced and sold directly from the factory at a reasonable price. If you have any needs, please feel free to call us. We are glad to be at your service!
