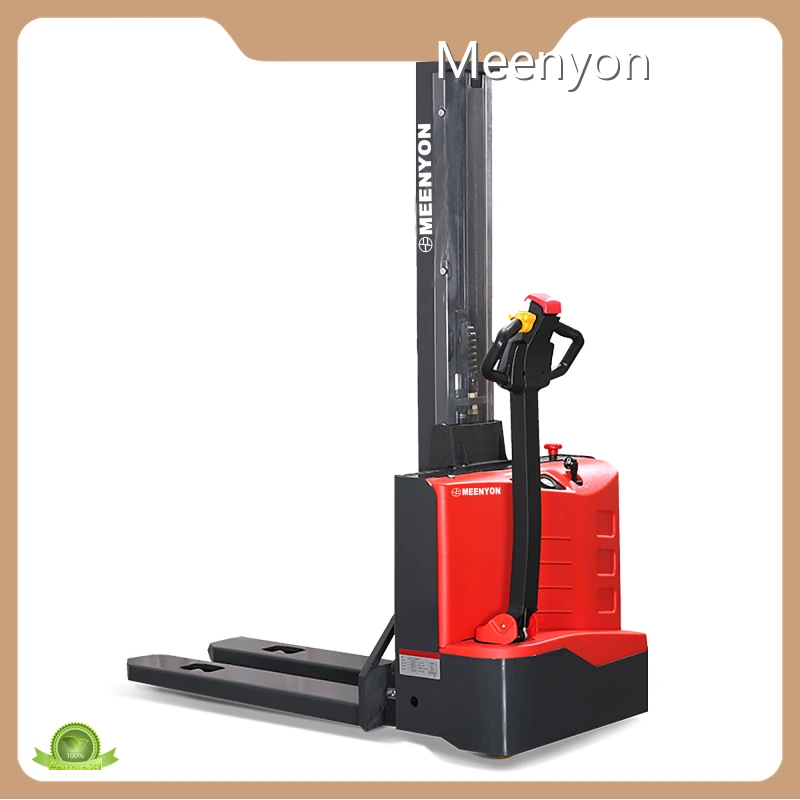

Product details of the electric stacker
Quick Detail
By reforming the technology of manufacturing, Meenyon electric stacker has finer workmanship. The implementation of the quality control system ensures the product to be defect-free. Meenyon's electric stacker can be used in a variety of industries. Meenyon's sales performance has been steadily increasing these years.
Product Information
Meenyon pays great attention to the details of electric stacker. The following will show you one by one.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ES12-12MMI | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1200 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 520 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1940 |
| 4.4 | Standard max lifting height | h3 (mm) | 1510 |
| 4.15 | Fork drop height | h13(mm) | 95 |
| 4.19 | Overall length | l1 (mm) | 1750 |
| 4.21 | Overall width | b1/ b2 (mm) | 796 |
| 4.25 | Fork outside distance | b5 (mm) | 560 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2340 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2260 |
| 4.35 | Turning radius | Wa (mm) | 1500 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 4 / 4.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.10/0.14 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 2*12V/85Ah |
