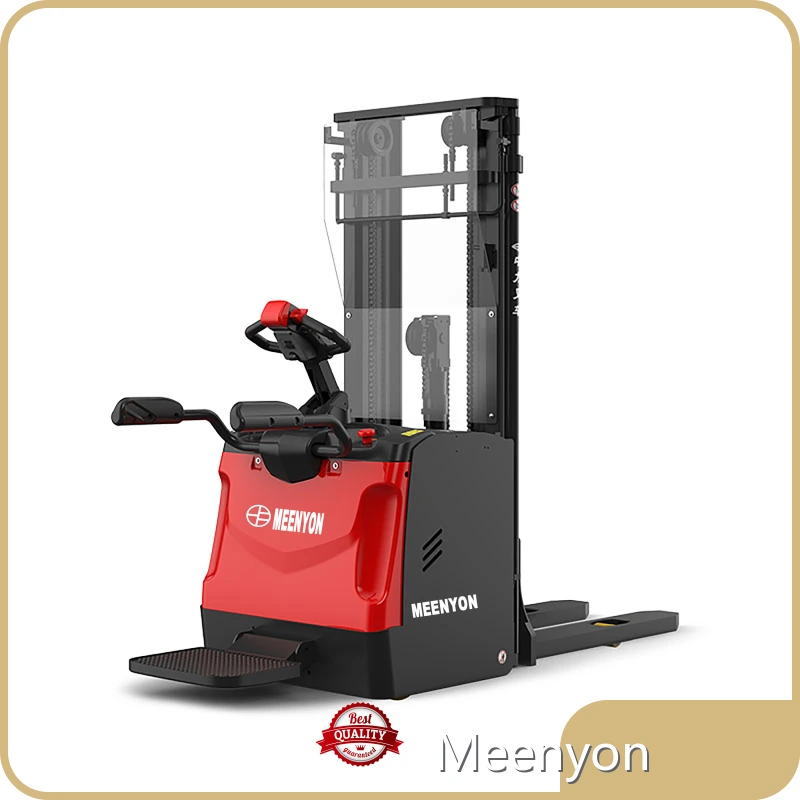

Meenyon Electric Straddle Pallet Stacker for Sale
Product details of the Electric Straddle Pallet Stacker
Quick Overview
As a competitive product, it also ranks top in its huge development prospects. Being manufactured based on government and industry safety and quality requirements, the product is 100% qualified. The product has covered most of the provinces and cities in the country and has been sold to many overseas markets.
Product Information
Meenyon guarantees to be high-quality by carrying out highly standardized production. Compared with other products in the same category, it has the following advantages.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | RSB161 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1600 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | —— |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1970 |
| 4.4 | Gantry travel | h3 (mm) | 3000 |
| 4.4... | Gantry lifting height (fork face to ground) | h23 (mm) | 2915 |
| 4.15 | Fork drop height | h13(mm) | 85 |
| 4.19 | Overall length | l1 (mm) | 2070 |
| 4.21 | Overall width | b1/ b2 (mm) | 850 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2970 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2120 |
| 4.35 | Turning radius | Wa (mm) | 2120 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 5.5/6.0 |
| 5.2 | Max climb, full / no load | m/ s | 0.13/0.16 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24/230 |
