Meenyon offers professional OEM & ODM services for all kinds of electric forklift, electric pallet truck, electric stacker and diesel forklift.

Meenyon High-quality 3 Wheel Electric Forklift Truck for Business 1
Meenyon High-quality 3 Wheel Electric Forklift Truck for Business 2
Meenyon High-quality 3 Wheel Electric Forklift Truck for Business 3
Meenyon High-quality 3 Wheel Electric Forklift Truck for Business 4
Meenyon High-quality 3 Wheel Electric Forklift Truck for Business 5
Meenyon High-quality 3 Wheel Electric Forklift Truck for Business 1
Meenyon High-quality 3 Wheel Electric Forklift Truck for Business 2
Meenyon High-quality 3 Wheel Electric Forklift Truck for Business 3
Meenyon High-quality 3 Wheel Electric Forklift Truck for Business 4
Meenyon High-quality 3 Wheel Electric Forklift Truck for Business 5

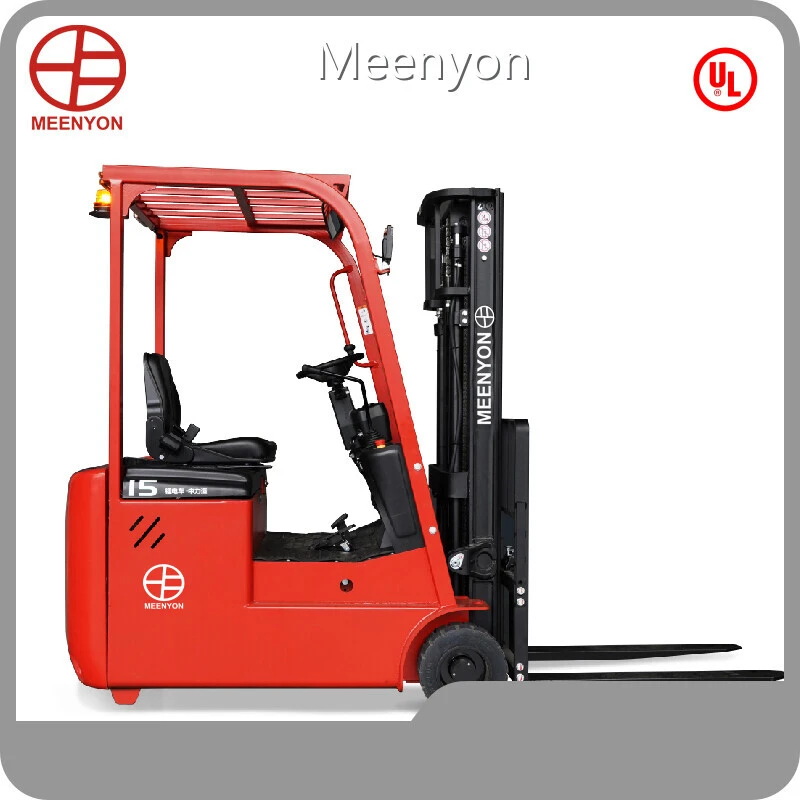

Meenyon High-quality 3 Wheel Electric Forklift Truck for Business

Inquiry
Send your inquiry

Company Advantages

· The manufacturing process of Meenyon 3 wheel electric forklift truck involves many aspects. These aspects include pattern design, fabric selection, pattern making, marking, spreading, cutting, sewing, dyeing, washing, quality control, etc.

· This product features high-quality seams. Its seams are sturdy and not flimsy. It will not pull out of shape with wear.

· Meenyon specializes in producing 3 wheel electric forklift truck.

Introduction

Pro15-xj1

SMALLER- SMALLER SIZE, SMALLER TURNING RADIUS

While meeting the load requirements, the vehicle is made lighter and smaller through exquisite weight calculation, meeting the needs of small space operations such as entering and exiting narrow passages and elevators.

◆ Smaller size. The vertical length of the delivery fork is 1797mm.

Pro15-xj2

◆ The turning radius is smaller. Turning radius 1535mm, can rotate 360 degrees in place, with a rotation range of 180 degrees.

Pro15-xj16
Pro15-xj15 (2)

Stronger - better configuration, stronger quality

Pro15-xj4
The gantry is made of high-strength H-shaped channel steel, which has greater strength and more stable cargo carrying capacity
Pro15-xj5
Adopting front wheel braking for better braking performance
Pro15-xj6
Hydraulic power steering, stronger power and more stable steering
Pro15-xj7
Optimize structural design for greater operating space
Pro15-xj8
The steering wheel can be adjusted back and forth for more comfortable operation
Pro15-xj9
The standard rubber Airless tire can reduce vibration and silence

More professional - three point forklifts designed specifically for narrow channel operations

Lightweight and flexible, versatile in handling, meeting various customer needs.

Pro15-xj10
Foot height design in line with ergonomics
Pro15-xj11
Can be equipped with various LED lighting facilities to meet night work needs
Pro15-xj12
Easy access to industrial cargo elevators
Pro15-xj13
Work can be carried out on the factory floor
Pro15-xj14
Accessible to areas with smaller channel widths

COMPANY STRENGTH

Item Name Unit (Code)

Feature









1.1 Brand   MEENYON MEENYON
1.2 Model   EFS151 (Lead-acid battery) EFS151L (Lithium battery)
1.3 Power   Electric Electric
1.4 Operation   Car type Car type
1.5 Rated load Q (kg) 1500 1500
1.6 Load center distance c (mm) 500 500

Weight









2.1 Dead weight (incl. battery) kg 2200 2200

Tires, chassis









3.1 Tire type, drive wheel/carrier wheel (steering wheel)   Solid tire Solid tire

Size









4.4 Max lifting height of standard frame h3 (mm) 3000 3000
4.7 Top guard (cab) height h6 (mm) 1995 1995
4.20. Length to vertical face of fork l2 (mm) 1797 1797
4.21 Overall width b1/ b2 (mm) 1060 1060
4.34.1 Pallet 1000 × 1200 cross path width Ast (mm) 3000 3000
4.34.2 Pallet 800 × 1200 cross path width Ast (mm) 3200 3200
4.35 Turning radius Wa (mm) 1535 1535

Performance parameter









5.1 Travel speed, full / no load km/ h 8 / 9 8 / 9
5.8 Max climb, full / no load % 10 / 12 10 / 12

Motor, Power unit









6.4 Battery voltage/nominal capacity V/ Ah 48/180 (lead-acid battery) 48/150 (lithium battery)


Company Features

· Meenyon has been specialized in manufacture of 3 wheel electric forklift truck since its inception.

· We have a skilled highly engaged production management team. They often hold a responsible attitude throughout our operations, no matter in inspecting product quality or controlling the production process. The production workshop has been equipped with a variety of flexible production facilities. These facilities are manufactured with the latest technologies. It enables the workshop to meet a wide range of needs for manufacturing requirements of products including 3 wheel electric forklift truck.

· MEENYON provides customers with excellent products and services; MEENYON creates value for you. Ask!


Product Details

3 wheel electric forklift truck's specific details in Meenyon are mainly reflected in the following aspects.


Application of the Product

3 wheel electric forklift truck of Meenyon can play a role in various industries.

In the early stage, we conduct a communication survey to gain an in-depth understanding of the customer's problems. Therefore, we can develop solutions that best suit the customers based on the results of the communication survey.


Product Comparison

Compared with other products in the same category, 3 wheel electric forklift truck produced by Meenyon has the following advantages.


Enterprise Advantages

Meenyon has an R&D team composed of senior technicians and engineers in the industry to focus on product design and development with the concept of 'quality first, technological innovation, novel design'.

Our company is devoted to providing the best service for our customers at the lowest cost.

Seeing into the future, our company will always insist on the core values of 'passionate and dedicated, determined and progressing'. Based on our enterprise tenet of 'being practical and innovative to serve the society', we provide high-quality products and services for customers.

During the development for years, Meenyon has been developing firmly to lead the trend of industry development. We have now turned into a leader in the industry.

Meenyon's products are not only popular in China, but also sold well overseas.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
