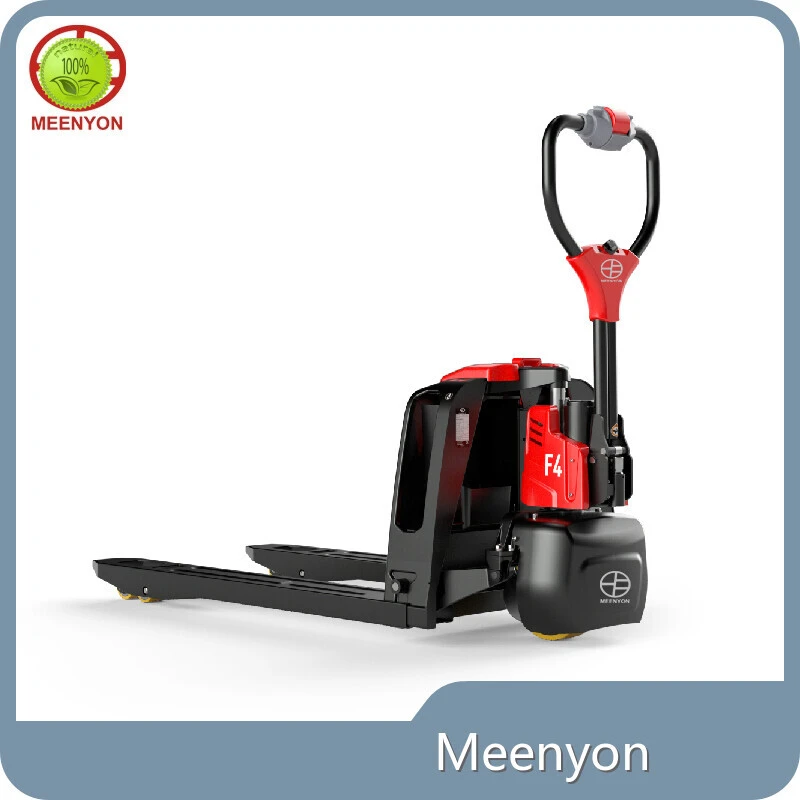

Meenyon Motorized Pallet Jack for Sale Manufacturers
Product details of the motorized pallet jack for sale
Quick Detail
The wonderful color of our motorized pallet jack for sale is big plus. The supplied product can always be serviced in the best conditions. Meenyon realized since its inception that quality is crucial to stable business.
Product Description
Compared with other motorized pallet jack for sale, the motorized pallet jack for sale produced by Meenyon has the following advantages and features.
MEENYON's Original Chassis Design
F4 adopts the new and original chassis design concept of Zhongli, which separates the front and rear frames, integrates the rear frames, and produces personalized front frames to meet the diverse transportation needs of users.
◆ Our in-house designers and engineers have produced countless great designs for customers from different industries
◆ Rear frame
1. Integrated powertrain
Through design optimization, the power system is highly integrated, the structure is arranged reasonably, the heat dissipation effect of the controller is improved, the quality is improved, and maintenance costs are reduced.
Joystick
Controller
Hydraulic system
New load-bearing bridge
Drive unit
2. Border inspection and production
Reliable quality, guaranteed quality
3. Highly integrated joystick for a new human-computer interaction experience
Ergonomically designed dual twist handle for easy operation with both left and right hands
4. Using parts and kits that have been tested by 700000 units in the market
Stable quality, trustworthy quality
Unlimited range, meeting all range requirements
◆ Multiple charging methods are optional, with unlimited F4 range
◆ Dual charging and multi charging
Unlimited use under busy working conditions, for multiple vehicle power exchange cycles
◆ Battery can be changed anytime, F4 has unlimited battery life
◆ Swivel the plug and unplug device 180 degrees to quickly switch between using batteries
◆ Dual battery card slots for easy insertion and removal of batterie
Intensive transportation and separate storage
COMPANY STRENGTH
| Item | Name | Unit (code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | F4 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 120 |
| Tires, chassis | |||
| 3.2 | Front wheel size (diameter × width) | 210x70 big drive wheel | |
| Size | |||
| 4.4. | Standard max lifting height | h3 (mm) | 105 |
| 4.15 | Fork drop height | h13(mm) | 82 |
| 4.19 | Overall length | l1 (mm) | 1550 |
| 4.21 | Overall width | b1/ b2 (mm) | 695/590 |
| 4.25 | Fork outside distance | b5 (mm) | 685/560 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2160 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2025 |
| 4.35 | Turning radius | Wa (mm) | 1360 |
| Performance parameter | |||
| 5.1 | Walk speed, full/no load | km/ h | 4/4.5 |
| 5.8 | Max climb, full/no load | % | 5 / 16 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24/20 |
