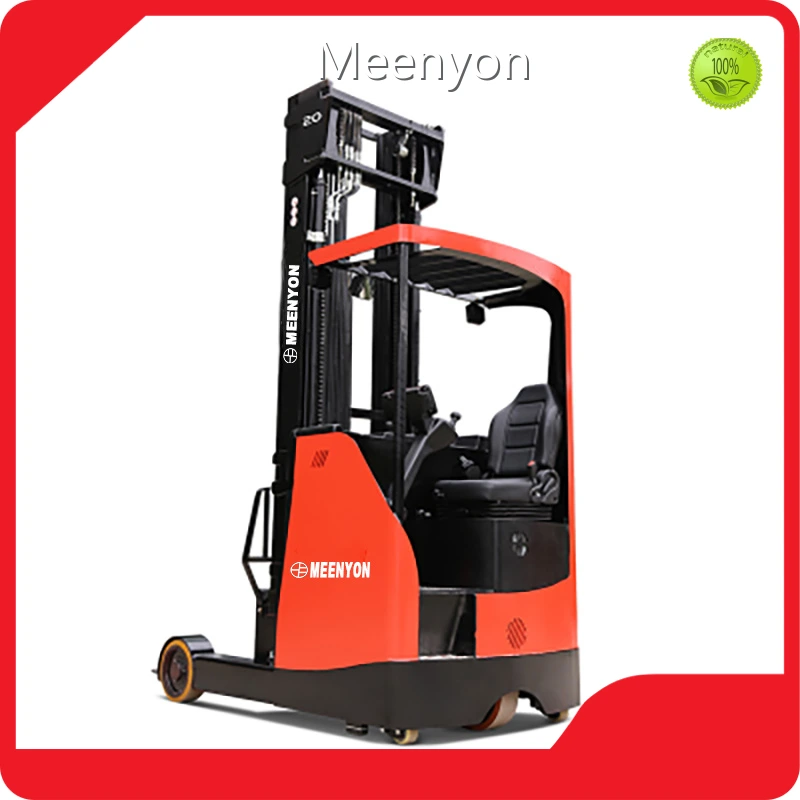

Meenyon Outdoor Electric Forklift Supplier 1
Meenyon Outdoor Electric Forklift Supplier 2
Meenyon Outdoor Electric Forklift Supplier 3
Meenyon Outdoor Electric Forklift Supplier 1
Meenyon Outdoor Electric Forklift Supplier 2
Meenyon Outdoor Electric Forklift Supplier 3

Meenyon Outdoor Electric Forklift Supplier

Inquiry

Product details of the outdoor electric forklift


Product Overview

Such material of outdoor electric forklift makes its colors more abundant. Every product produced by Meenyon meets the requirements of quality assurance of national standard. It proves to be great that Meenyon has developed its own sales network.


Product Information

Meenyon adheres to the principle of 'details determine success or failure' and pays great attention to the details of outdoor electric forklift.

Product selling points

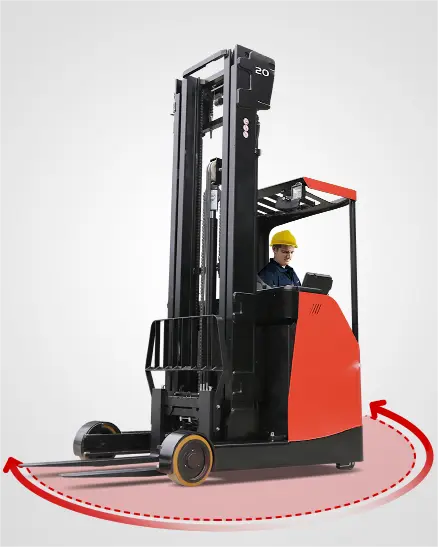

Meenyon Outdoor Electric Forklift Supplier 4
Wide field of vision and comfortable operation

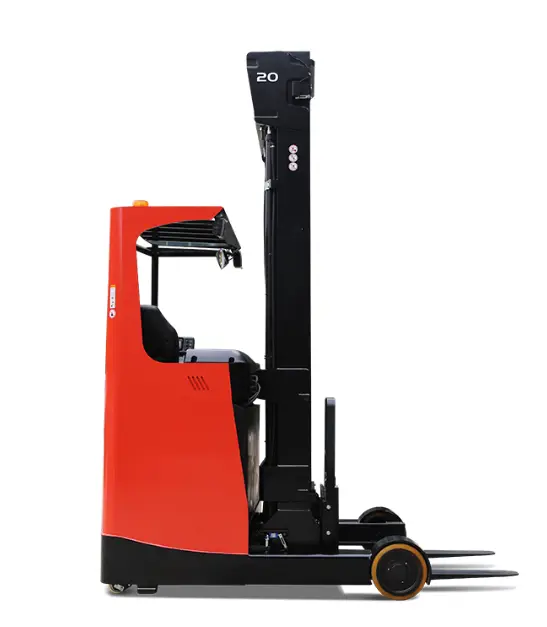

Meenyon Outdoor Electric Forklift Supplier 5
Stable and reliable, high performance and high efficiency
31
Easy maintenance

Wide field of vision

◆ Optimized appearance structure, reduced field of vision obstruction, more flexible operation

◆ Instrument steering integrated design, increased operating space, vehicle instrument information is clear at a glance.

654345
7646343_conew1

Comfortable operation

◆ The control panel fully considers ergonomics, making operation more comfortable.

◆ Based on ergonomics, the cockpit is integrated to greatly improve the operating comfort.



Stable and reliable

 The center of gravity of the vehicle is lowered to improve the high-position load-bearing capacity.

 The gantry is optimized to increase the high-position load-bearing capacity and is suitable for more working conditions.

 The solenoid valve is equipped with a height display (three-level gantry) as standard, and the height positioning makes high-position pickup more accurate.


645634
3-xj7
3-xj7

◆ The width of the vehicle is 1270mm, and the maximum stacking height can reach 12 meters.

◆ It is equipped with 500Ah battery and 65A charger as standard.

◆ It is equipped with built-in side shift as standard, which makes picking up goods more flexible.

COMPANY STRENGTH

Item Name Unit (Code)
Feature
1.1 Brand   MEENYON MEENYON
1.2 Model   CQD20RV(F)2 CQD16RV(F)2
1.3 Power   Electric Electric
1.4 Operation   Car type Car type
1.5 Rated load Q (kg) 2000 1600
1.6 Load center distance c (mm) 600 600
Weight
2.1 Dead weight (incl. battery) kg 3750② 3741②
Size
4.2 The lowest height after the gantry is lowered h1 (mm) 3219③ 3219③
4.4 Standard max lifting height h3 (mm) 7500③ 7500③
4.5 The height of the gantry at its highest lift h4 (mm) 8565③ 8565③
4.7 Top guard (cab) height h6 (mm) 2213 2213
4.19 Overall length l1 (mm) 2515① 2515①
4.21 Overall width b1/ b2 (mm) 1260/1270① 1260/1270①
4.22 Fork size s/ e/ l (mm) 40/120/1070 40/100/1070
4.24 Stop shelf outside width b3 (mm) 990 990
4.25 Fork outside distance b5 (mm) 240/770 240/770
4.26 Distance between wheel arms b4 (mm) 915 915
4.34.1 Pallet 1000 × 1200 cross path width Ast (mm) 2889① 2873①
4.34.2 Pallet 800 × 1200 cross path width Ast (mm) 2952① 2951①
4.35 Turning radius Wa (mm) 1770① 1700①
4.37 Vehicle length (without fork) l7(mm) 1948① 1878①
Performance parameter
5.1 Travel speed, full / no load km/ h 9/9.5 10/11
5.2 Lifting speed, full/no load m/ s 0.35/0.45 0.35/0.5
5.3 Descending speed ,full/no load m/ s 0.41/0.38 0.41/0.38
5.8 Max climb, full / no load % 10/15 10/15
Motor, Power unit
6.4 Battery voltage/nominal capacity V/ Ah 48/500④ 48/500④


Company Advantages

Meenyon (Meenyon), is a diversified company integrating production, processing and sales. The main product currently is Our company adheres to the tenet of 'customer first and honesty-oriented' and the management philosophy of 'quality and excellence'. We make effort to get a lasting development while providing high-quality products, and look forward to work together and create brilliance with new and old customers in industry. Meenyon's R&D team has rich experience and mature technology. We have always focused on product innovation and have made a major breakthrough. This lays a solid foundation for the sustainable development of our company. Meenyon insists on providing customers with reasonable solutions according to their actual needs.
We have been providing high quality outdoor electric forklift for a long time. We look forward to working with you.
