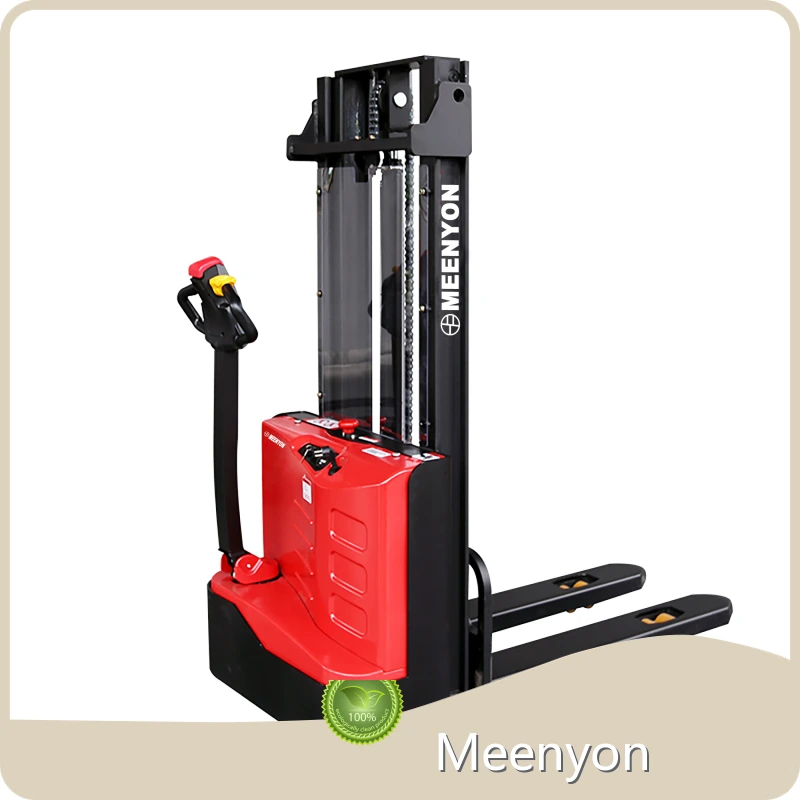

Product details of the pallet stacker truck


Quick Detail

Meenyon pallet stacker truck is made as per international industry standards. As the stringent quality tests run through the whole production process, the quality of the product can be thoroughly assured. Our pallet stacker truck is widely used in multiple industries and fields. This product sells well all over the world and is well received by users.


Product Description

Our pallet stacker truck are processed by the latest technology in the industry, and they perform better in the following details.

Product specifications

Item Name Unit (Code)
Feature
1.1 Brand   MEENYON
1.2 Model   ES13-15ES
1.3 Power   Electric
1.4 Operation   Walking
1.5 Rated load Q (kg) 1500
1.6 Load center distance c (mm) 600
Weight
2.1 Dead weight (incl. battery) kg 736
Size
4.2 Lowest height after the gantry is lowered h1 (mm) 1978
4.4 Standard max lifting height h3 (mm) 2930
4.15 Fork drop height h13(mm) 90
4.19 Overall length l1 (mm) 1720
4.21 Overall width b1/ b2 (mm) 800
4.25 Fork outside distance b5 (mm) 570
4.34.1 Pallet 1000 × 1200 cross path width Ast (mm) 2317
4.34.2 Pallet 800 × 1200 cross path width Ast (mm) 2246
4.35 Turning radius Wa (mm) 1485
Performance parameter
5.1 Travel speed, full / no load km/ h 4.0 / 4.5
5.2 Max climb, full / no load m/ s 0.12/0.22
 Motor, Power unit
6.4 Battery voltage/nominal capacity V/ Ah 2x12/105
