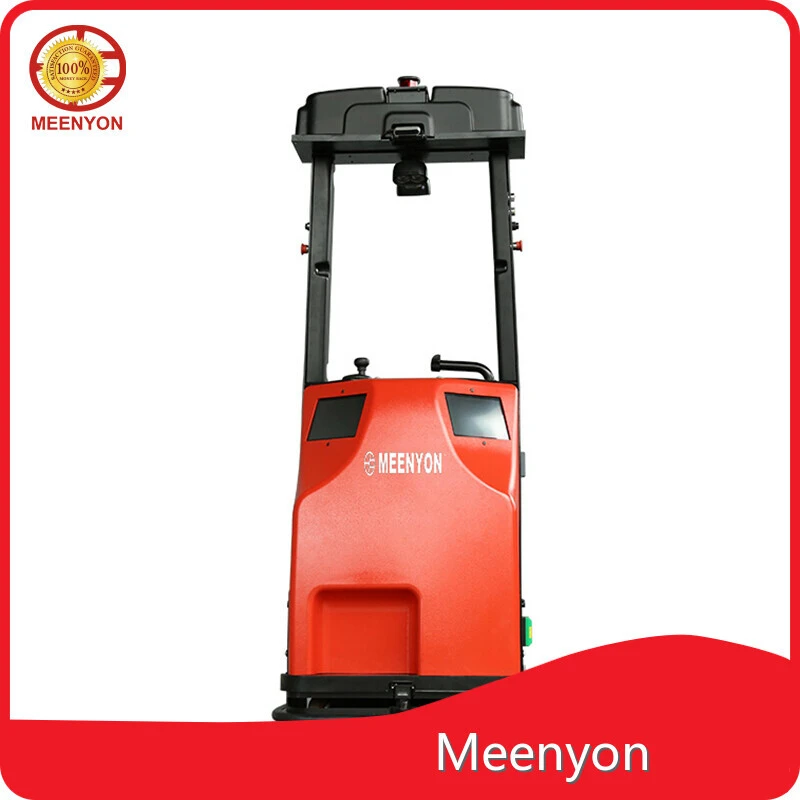

Product details of the small electric pallet jack
Quick Overview
small electric pallet jack has excellent cost performance. Our small electric pallet jack is characterized by high performance and stable quality. small electric pallet jack of Meenyon can be widely used in various fields. Promising application prospect and tremendous market potential can be seen from small electric pallet jack.
Product Information
Compared with similar products, the small electric pallet jack produced by Meenyon has the following advantages.
Introduction
Five new models of intelligent transportation, striving to create Industrial Logistics 4.0
Circulation mode
Pull mode
Push mode
Distributed warehousing model
Operation mode
Competitive Edge
Four Core Characteristics
COMPANY STRENGTH
Item |
Name |
Unit (Code) |
|
Feature | |||
1.1 | Brand | MEENYON | |
1.2 | Model | XP2-201 | |
1.3 | Power | Electric | |
1.4 | Operation | Standing | |
1.5 | Rated load | Q (kg) | 2000 |
1.6 | Load center distance | c (mm) | 600 |
Weight | |||
2.1 | Dead weight (incl. battery) | kg | 407 |
Tires, chassis | |||
3.1 | Tire type, drive wheel/carrier wheel (steering wheel) | polyurethane | |
3.2 | Front wheel size (diameter × width) | Φ230×75 | |
Size | |||
4.4. | Standard max lifting height | h3 (mm) | 110 |
4.9 | Minimum/maximum height of operating position handle lever | h14 (mm) | 1195 |
4.15 | Height of fork after lowering | h13(mm) | 90 |
4.19 | Overall length | l1 (mm) | 1695 |
4.20. | Length of the vertical surface of the delivery fork | l2 (mm) | 560 |
4.21 | Overall width | b1/ b2 (mm) | 825 |
4.22 | Fork size | s/ e/ l (mm) | 55x170x1150 |
4.25 | Fork outer width | b5 (mm) | 540/600/685 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2365 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2225 |
4.35 | Turning radius | Wa (mm) | 1565 |
Performance parameter | |||
5.1 | Walk speed, full/no load | km/ h | 5.5/6 |
5.2 | Lifting speed, full/no load | m/ s | 0.023/0.030 |
5.3 | Descending speed, full/no load | m/ s | 0.032/0.029 |
5.8 | Max climb, full/no load | % | 8.0/16.0 |
5.10. | Service brake type | electromagnetism | |
Motor, Power unit | |||
6.1 | Rated power of drive motor S2 60min | kW | 1.5 |
6.2 | Rated power of lifting motor S3 15% | kW | 0.84 |
6.4 | Battery voltage/nominal capacity | V/ Ah | 24/120 |
Drive/lifting mechanism | |||
8.1 | Drive Control Type | Exchange | |
Other parameters | |||
10.5 | Steering type | Electron | |
10.7 | Noise level | dB (A) | 74 |
Company Information
With special advantages, Meenyon is outstanding in the small electric pallet jack industry. Meenyon includes a group of small electric pallet jack designers and technicians. We are putting our efforts to protect resources and ecosystems. For example, we aim to reduce CO2 emissions by constantly improving the quality of discharge.
Our company is committed to providing professional and quality products with affordable prices for customers. Welcome customers in need to contact us, and look forward to establishing a mutually beneficial relationship with you!
