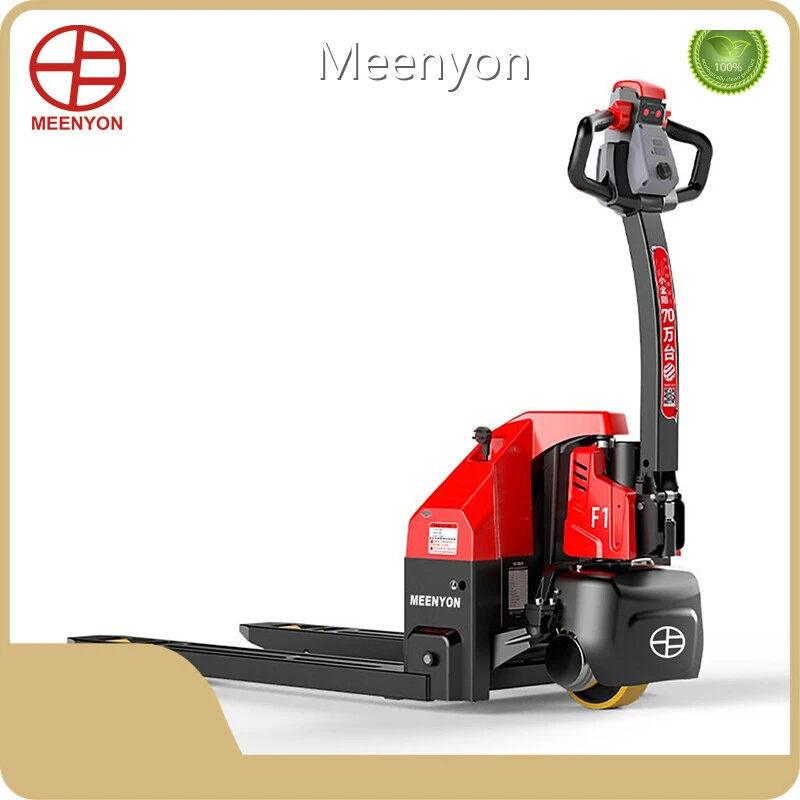

Product details of the small electric pallet truck
Quick Overview
The equipment of professional design team also ensures the uniqueness of small electric pallet truck design. Meenyon believes that the quality is the soul of an enterprise. It is the pursuit of higher quality life of people that Meenyon produced the finest small electric pallet truck to meet the needs.
Product Introduction
Meenyon's small electric pallet truck has been greatly improved in the following details.
INHERITING CRAFTSMANSHIP AND PAYING TRIBUTE TO CLASSICS
◆ Classic styling.
Inherit the classic series of Little King Kong
◆ Delay advantage
Inheriting the characteristics of Little Diamond
Ultra light self weight, with a load capacity of 1500KG, and a small body with high energy
Ultra small radius with a radius of 1440MM, making it easy to operate in narrow channels
◆ Classic set
After 10 years of market inspection, the parts and components of the extended generation of Xiaojingang are more reliable and stable
Adapting to the trend, timeless classics
Developing through inheritance, F1 follows the trend, responds to policies, and meets usage needs
◆ High capacity lithium battery
1. Standard 40AH large capacity lithium battery: fully utilize the advantages of flexible charging of lithium batteries, intermittently recharge, and use the vehicle at any time to meet the needs of a day's work
2. Standard 10A large charger: better utilize the advantages of fast charging, not afraid of busy working conditions
BREAKING THROUGH INNOVATION AND FEARLESSLY MOVING FORWARD
◆ Innovate in development and make "breaking the trend" more intense
Original chassis design - The F series adopts the new and original chassis design concept of Zhongli, which separates the front and rear frames, integrates the power of the rear frame, and produces personalized front frames to meet the diverse transportation needs of users.
Power integration, performance upgrade
◆ Highly integrated powertrain system into the rear frame through innovative design.
◆ Adopting the new manufacturing concept of production and inspection to control product quality throughout the entire process.
Joystick
controller
hydraulic system
New load-bearing bridge
Drive unit
Reasonable layout and improved lifespan
◆ Improve the cooling effect of the controller, improve quality, and reduce maintenance costs.
◆ Better stability and durability of the vehicle.
Separate front and back
to satisfy personality
◆ Can meet customers' personalized customization needs such as appearance and color.
◆ Can provide industry customized services based on customer conditions.
Innovative handle, human-machine optimization
◆ Innovative handle design in the industry, optimizing human-computer interaction experience
◆ Double knobs left and right for smoother operation
◆ Mechanical rebound structure, more labor-saving operation
◆ Integrated design for easier maintenance
COMPANY STRENGTH
Item | Name | Unit (code) | ||
Feature |
|
|
|
|
1.1 | Brand | MEENYON | MEENYON | |
1.2 | Model | F1 (Lithium battery) | F1 (Lead-acid battery) | |
1.3 | Power | Electric | Electric | |
1.4 | Operation | Walking | Walking | |
1.5 | Rated load | Q (kg) | 1500 | 1500 |
1.6 | Load center distance | c (mm) | 600 | 600 |
Weight |
|
|
|
|
2.1 | Dead weight (incl. battery) | kg | 125 | 142 |
Tires, chassis |
|
|
|
|
3.2 | Front wheel size (diameter × width) | 210x70 | 210x70 | |
Size |
|
|
|
|
4.4. | Standard max lifting height | h3 (mm) | 105 | 105 |
4.15 | Fork drop height | h13(mm) | 82 | 82 |
4.19 | Overall length | l1 (mm) | 1618 | 1618 |
4.21 | Overall width | b1/ b2 (mm) | 685/620 | 685/620 |
4.25 | Fork outside distance | b5 (mm) | 685/560 | 685/560 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2203 | 2203 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2256 | 2256 |
4.35 | Turning radius | Wa (mm) | 1440 | 1440 |
Performance parameter |
|
|
|
|
5.1 | Walk speed, full/no load | km/ h | 4/4.5 | 4/4.5 |
5.8 | Max climb, full/no load | % | 5 / 16 | 5 / 16 |
Motor, Power unit |
|
|
|
|
6.4 | Battery voltage/nominal capacity | V/ Ah | 24V/40Ah | 24V/65Ah |
Company Advantages
Meenyon is famous for providing high quality small electric pallet truck. Our high quality small electric pallet truck has successfully satisfied more and more customers' needs. To bring long-term positive results to our customers and communities, we spare no effort to manage our economic, environmental and social impacts. Inquire online!
If you are interested, please contact customer service staff for consultation!
